Section 676 (Engine - 3.5L DURATEC (209KW/284PS)): Removal: Engine

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s) / General Equipment

GFD39660Courtesy of FORD MOTOR COMPANY
 303-1245 Engine Lift Eye
TKIT-2006UF-FLM
TKIT-2006UF-ROW
Floor Crane
Oil Drain Equipment
Trolley Jack
Hose Clamp Remover/Installer
Wooden Block

4x2/4x4

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 2.

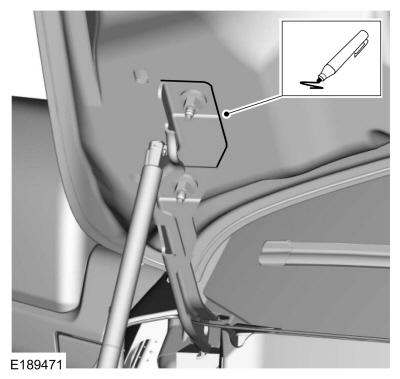

    NOTE: RH shown, LH similar.

    Index-mark the hood hinge location to aid in hood installation.

GFD39294Courtesy of FORD MOTOR COMPANY

  1. 3.

    Remove the nuts and the hood.
GFD39295Courtesy of FORD MOTOR COMPANY

  1. 4.

    Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE .

  1. 5.

    Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

  1. 6.

    Remove the following items:

  1. 7.

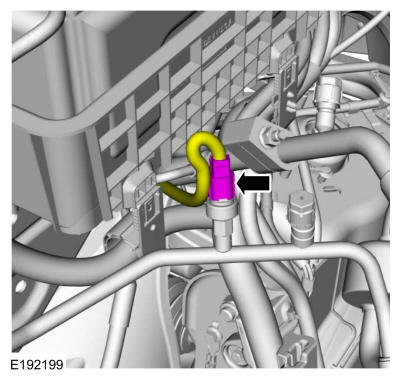

    Disconnect the A/C pressure switch.
GFD39296Courtesy of FORD MOTOR COMPANY

  1. 8.

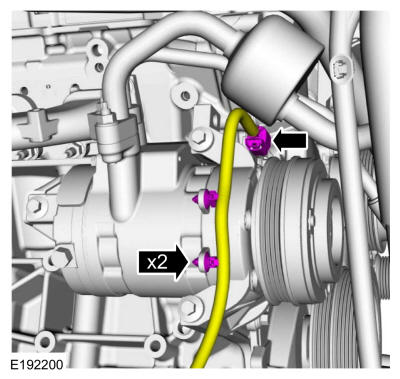

    Disconnect the A/C compressor electrical connector and the wiring harness retainers.
GFD39846Courtesy of FORD MOTOR COMPANY

  1. 9.

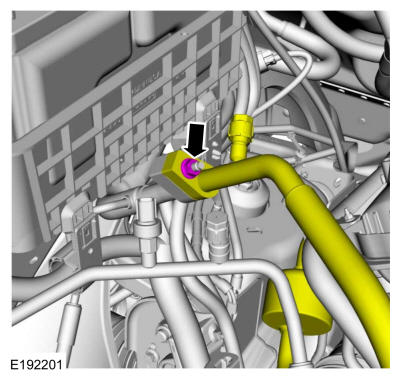

    • Remove the nut and disconnect the A/C tube.
    • Discard the O-ring seal and gasket seal.
GFD39297Courtesy of FORD MOTOR COMPANY

  1. 10.

    Remove the nut and position the transmission cooler tube bracket and wiring harness aside.
GFD39642Courtesy of FORD MOTOR COMPANY

  1. 11.

    Disconnect the generator wiring from the engine front cover.
GFD39643Courtesy of FORD MOTOR COMPANY

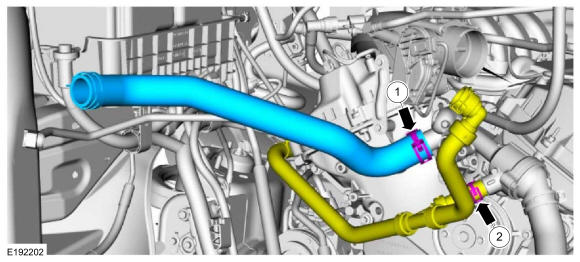

  1. 12.

    1. 1.

      Release the clamp and remove the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

    1. 2.

      Release the clamp and position the heater hose aside. Use the General Equipment: Hose Clamp Remover/Installer
GFD39847Courtesy of FORD MOTOR COMPANY

  1. 13.

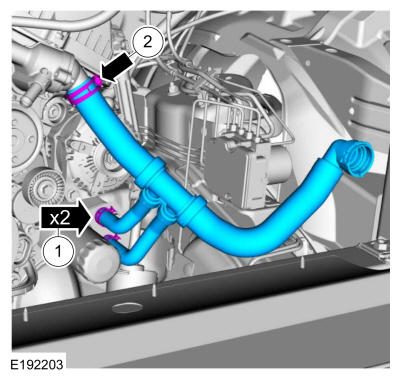

    1. 1.

      If equipped, release the clamp remove the oil cooler coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

    1. 2.

      Release the clamp and remove the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
GFD39848Courtesy of FORD MOTOR COMPANY

  1. 14.

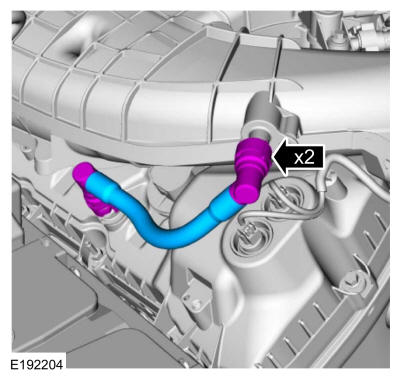

    Remove the PCV tube.
GFD39849Courtesy of FORD MOTOR COMPANY

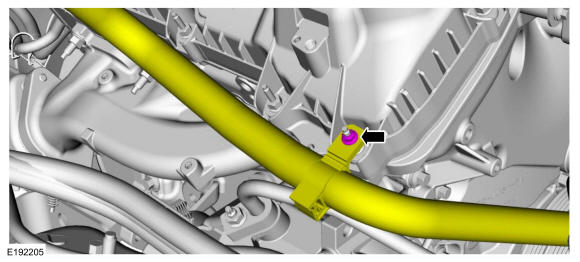

  1. 15.

    Remove the nut from the RH valve cover stud bolt and position the coolant hose aside.
GFD39850Courtesy of FORD MOTOR COMPANY

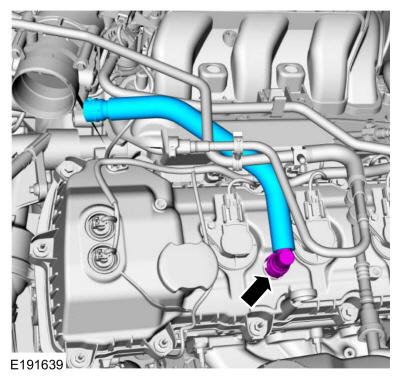

  1. 16.

    Remove the crankcase vent tube from LH valve cover.
GFD39784Courtesy of FORD MOTOR COMPANY

  1. 17.

    Remove the generator. Refer to: Generator - 3.5L Duratec (209kW/284PS) .

  1. 18.

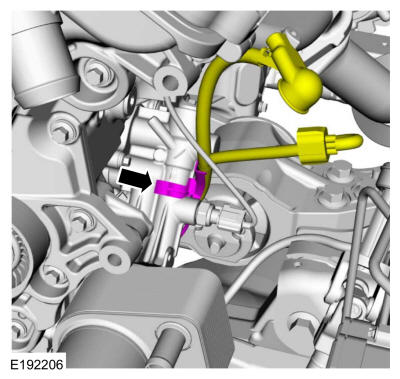

    Detach the generator wiring harness retainer from the oil filter adapter.
GFD39851Courtesy of FORD MOTOR COMPANY

  1. 19.

    Remove the upper intake manifold. Refer to: Upper Intake Manifold .

  1. 20.

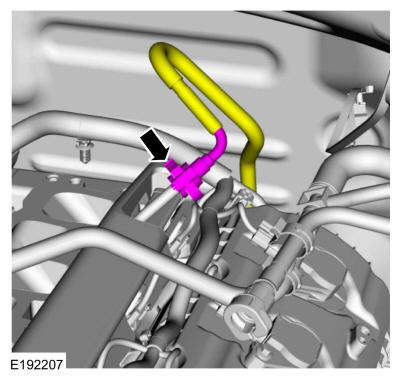

    Disconnect the fuel supply tube quick connect coupling from the fuel rail. Refer to: QUICK RELEASE COUPLING
GFD39852Courtesy of FORD MOTOR COMPANY

  1. 21.

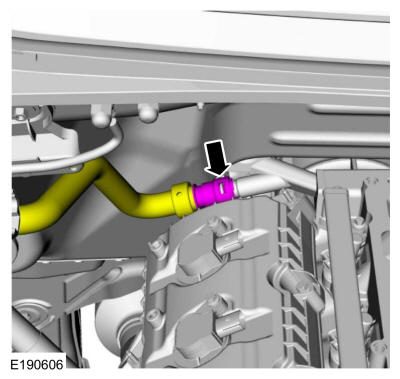

    Disconnect the heater hose from the lower intake manifold at the rear of the engine.
GFD39707Courtesy of FORD MOTOR COMPANY

  1. 22.

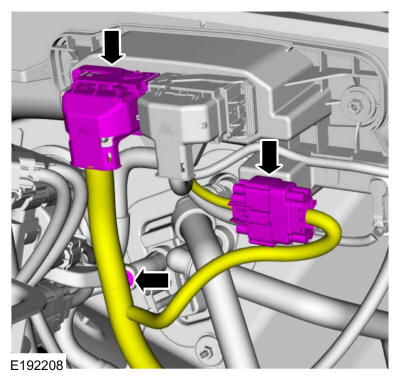

    • Disconnect the PCM electrical connector and wiring harness retainer.
    • Disconnect the engine harness electrical connector.
GFD39853Courtesy of FORD MOTOR COMPANY

4x4

  1. 23.

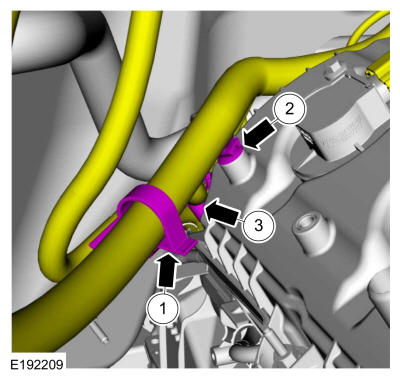

    1. 1.

      Detach the transfer case wiring harness retainer from the PCM wiring harness.

    1. 2.

      Detach the PCM wiring harness retainer from the valve cover.

    1. 3.

      Detach the transfer case wiring harness retainer from the valve cover stud bolt.
GFD39854Courtesy of FORD MOTOR COMPANY

4x2/4x4

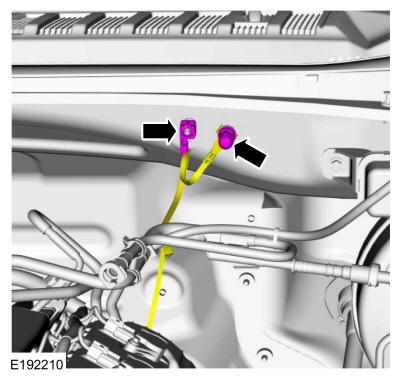

  1. 24.

    Remove the bolt, retainer and the ground strap from the cowl.
GFD39855Courtesy of FORD MOTOR COMPANY

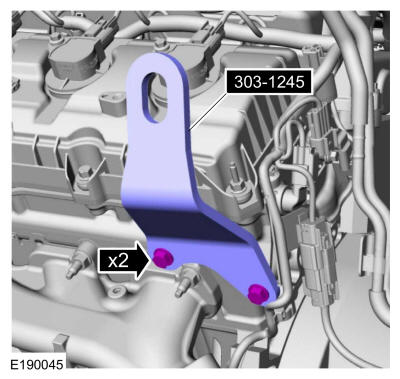

  1. 25.

    Install Special Service Tool: 303-1245 Engine Lift Eye.
GFD39664Courtesy of FORD MOTOR COMPANY

  1. 26.

    • If equipped, remove the bolts.
    • Release the retainer and remove the transmission housing cover.
GFD38415Courtesy of FORD MOTOR COMPANY

  1. 27.

    NOTE: Vehicles come with an underbody shield or a skid plate.
    • If equipped, remove the pin-type retainers.
    • Remove the bolts and the underbody shield.
GFD39150Courtesy of FORD MOTOR COMPANY

  1. 28.

    NOTE: Vehicles come with an underbody shield or a skid plate.

    If equipped, remove the bolts and the skid plate.

GFD39149Courtesy of FORD MOTOR COMPANY

4x4

  1. 29.

    Remove the front driveshaft. Refer to: Front Driveshaft .

4x2/4x4

  1. 30.

    Remove the starter motor. Refer to: STARTER MOTOR .

  1. 31.

    Remove the wiring harness retainer from the oil pan.
GFD39641Courtesy of FORD MOTOR COMPANY

  1. 32.

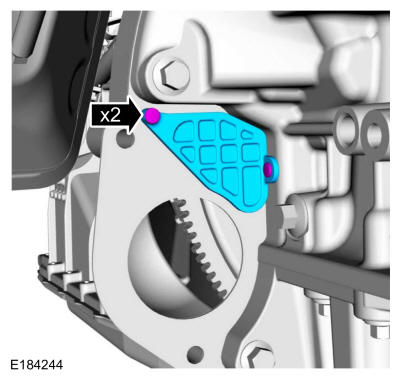

    Remove the pin-type retainers and the access cover.
GFD39856Courtesy of FORD MOTOR COMPANY

  1. 33.

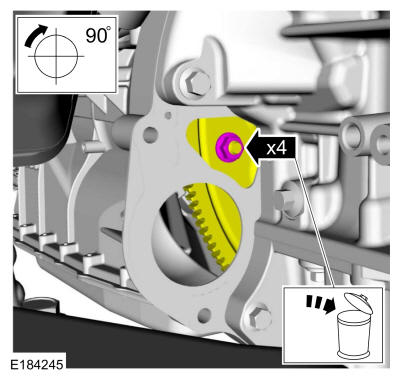

    NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Remove and discard the torque converter nuts.

GFD39857Courtesy of FORD MOTOR COMPANY

  1. 34.

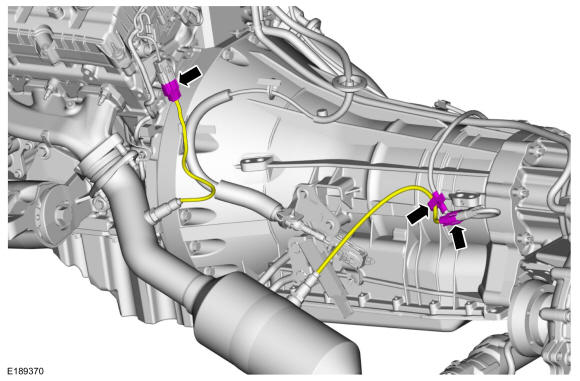

    Disconnect the LH HO2S and catalyst monitor sensors electrical connectors and detach wiring harness from the retainer.
GFD39598Courtesy of FORD MOTOR COMPANY

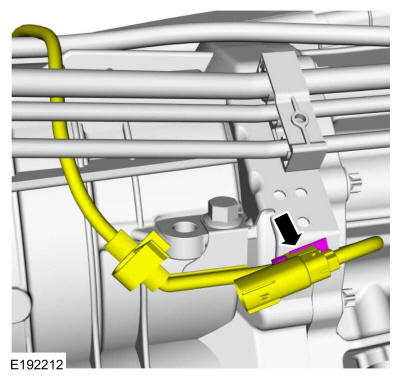

  1. 35.

    Detach the catalyst monitor sensor wiring harness retainer from the LH side of the transmission.
GFD39858Courtesy of FORD MOTOR COMPANY

  1. 36.

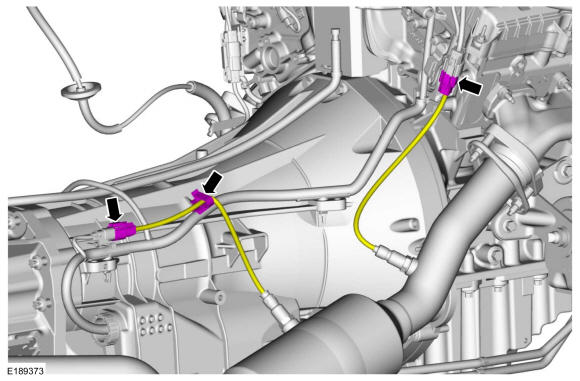

    Disconnect the RH HO2S and catalyst monitor sensors electrical connectors and detach wiring harness from the retainer.
GFD39619Courtesy of FORD MOTOR COMPANY

4x4

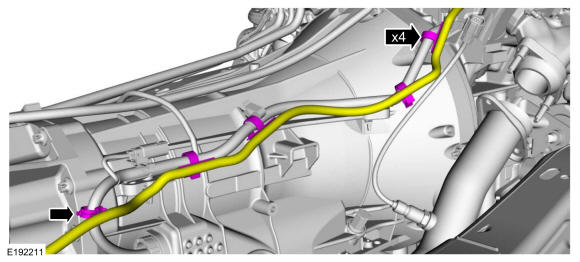

  1. 37.

    Detach the transfer case wiring harness from the transmission wiring harness.
GFD39859Courtesy of FORD MOTOR COMPANY

  1. 38.

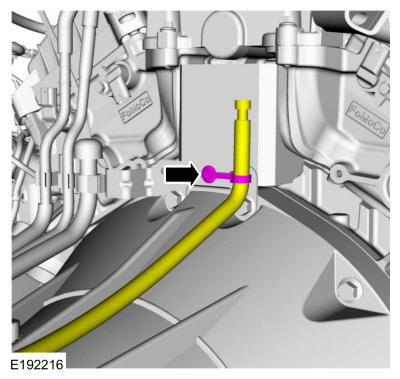

    Detach the transfer case vent tube retainer and position aside.
GFD39716Courtesy of FORD MOTOR COMPANY

4x2/4x4

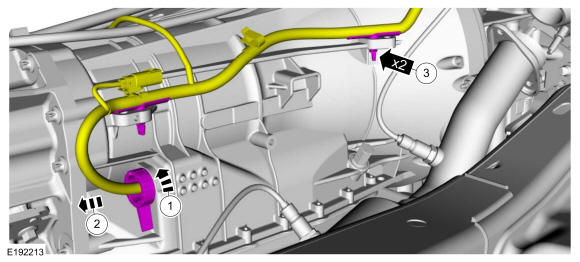

  1. 39.

    1. 1.

      Rotate the transmission electrical connector.

    1. 2.

      Pull the transmission electrical connector out to disconnect.

    1. 3.

      Detach the wiring harness retainers and position the wiring harness aside.
GFD39860Courtesy of FORD MOTOR COMPANY

  1. 40.

    NOTE: Make sure that the mating faces are clean and free of foreign material.

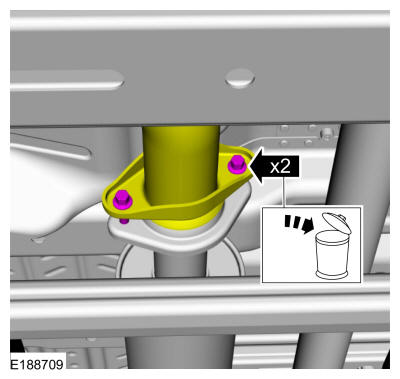

    Remove and discard the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.

GFD39151Courtesy of FORD MOTOR COMPANY

  1. 41.

    NOTE: Make sure that the mating faces are clean and free of foreign material.

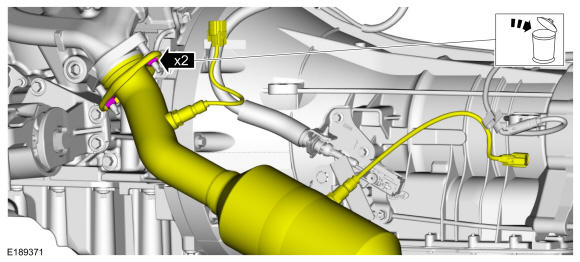

    Remove and discard the LH catalytic converter-to-exhaust manifold nuts.

GFD39599Courtesy of FORD MOTOR COMPANY

  1. 42.

    NOTE: Make sure that the mating faces are clean and free of foreign material.

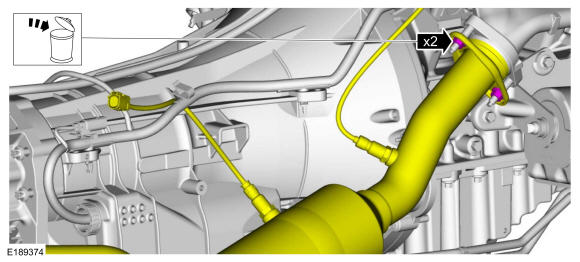

    Remove and discard the RH catalytic converter-to-exhaust manifold nuts.

GFD39620Courtesy of FORD MOTOR COMPANY

  1. 43.

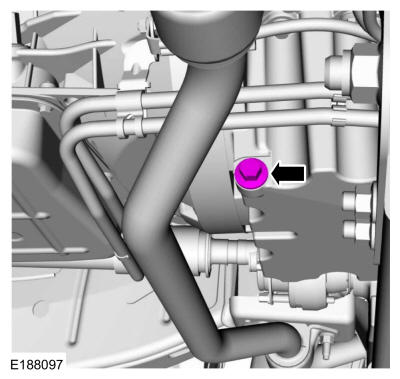

    • Remove the drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
    • Install the drain plug.

      Torque

      : 20 lb.ft (27 Nm)

GFD39615Courtesy of FORD MOTOR COMPANY

  1. 44.

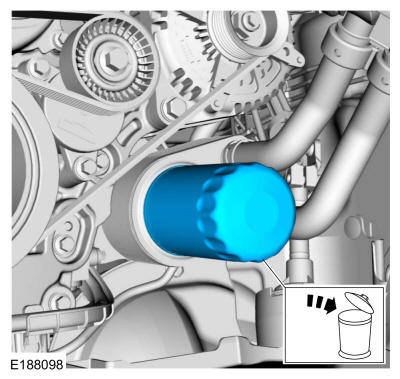

    Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment
GFD39616Courtesy of FORD MOTOR COMPANY

  1. 45.

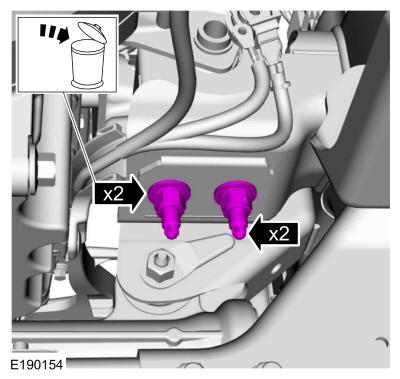

    NOTE: Only use hand tools when removing the engine mount nuts, stud bolts or damage to the engine mount can occur.
    NOTE: The engine mount stud may come off with the nuts.
    • Remove and discard the RH engine mount nuts.
    • Remove the RH engine mount studs bolts.
GFD39160Courtesy of FORD MOTOR COMPANY

  1. 46.

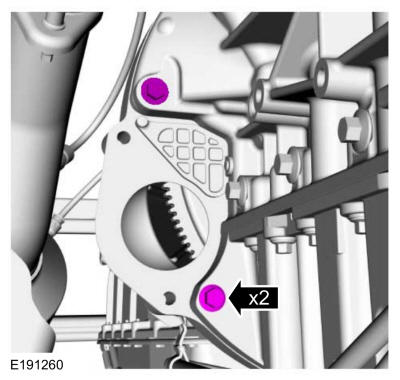

    Remove the engine-to-transmission bolts.
GFD39740Courtesy of FORD MOTOR COMPANY

  1. 47.

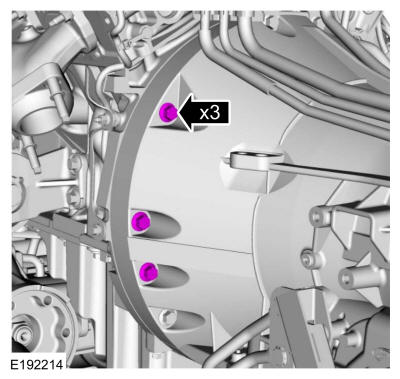

    Remove the transmission-to-engine bolts.
GFD39861Courtesy of FORD MOTOR COMPANY

  1. 48.

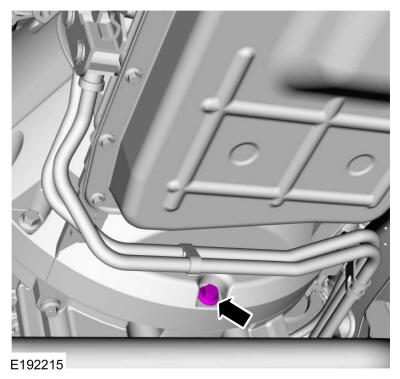

    Remove the transmission-to-engine bolt.
GFD39862Courtesy of FORD MOTOR COMPANY

  1. 49.

    NOTE: 4x4 shown, 4x2 similar.
    NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the LH engine mount through bolt.

GFD39161Courtesy of FORD MOTOR COMPANY

  1. 50.

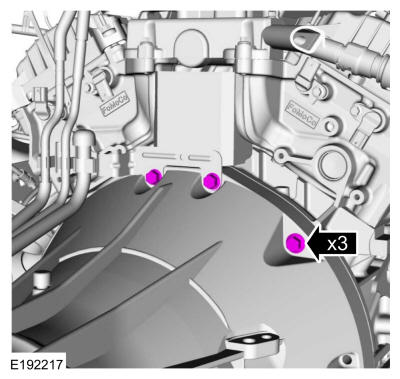

    Remove the transmission-to-engine bolts.
GFD39863Courtesy of FORD MOTOR COMPANY

  1. 51.

    NOTE: Do not support the transmission by the fluid pan, failure to follow this instruction may result in serious damage to the transmission.

    Support the bellhousing of the transmission with a suitable floor jack and a block of wood. Use the General Equipment: Trolley Jack Use the General Equipment: Wooden Block

GFD39328Courtesy of FORD MOTOR COMPANY

  1. 52.

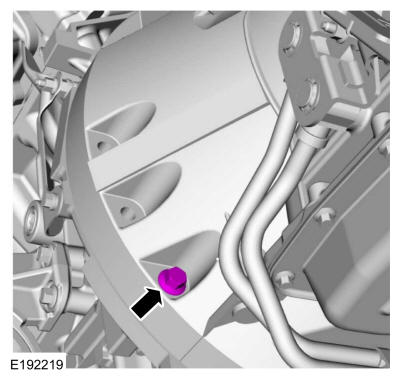

    Remove the LH transmission-to-engine bolt.
GFD39864Courtesy of FORD MOTOR COMPANY

  1. 53.

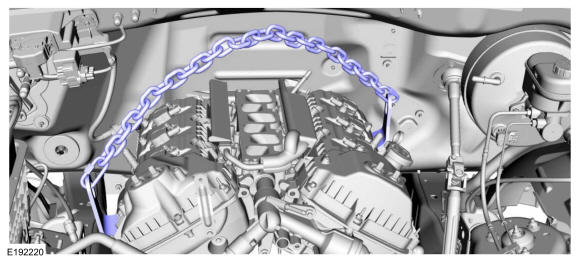

    Install a chain to the engine lift eyes.
GFD39865Courtesy of FORD MOTOR COMPANY

  1. 54.

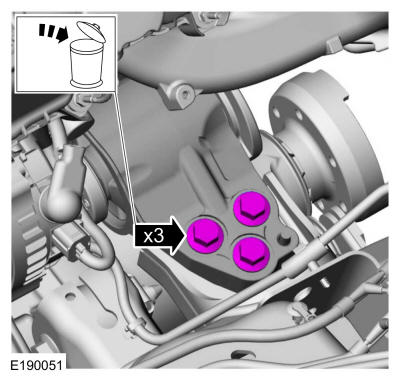

    NOTE: After removing the bolts leave the LH engine mount in place.

    Remove and discard the bolts for the LH engine mount.

GFD39669Courtesy of FORD MOTOR COMPANY

  1. 55.

    NOTE: It may be necessary to install a ratchet strap from the front of engine to the chain to keep the engine level.

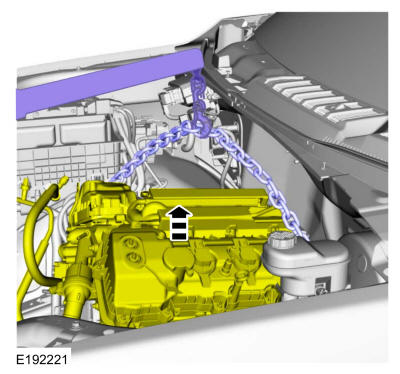

    Using the floor crane and chain, raise the engine for clearance to remove the LH engine mount. Use the General Equipment: Floor Crane

GFD39866Courtesy of FORD MOTOR COMPANY

  1. 56.

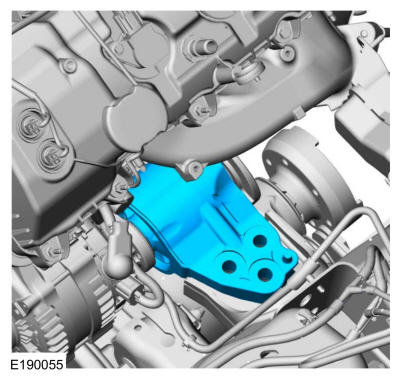

    Remove the LH engine mount.
GFD39671Courtesy of FORD MOTOR COMPANY

  1. 57.

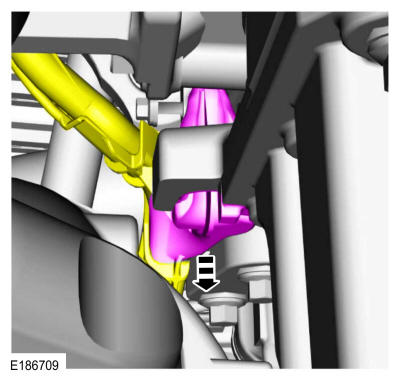

    Detach the generator wiring harness retainer from the lower LH side of the engine block.
GFD39673Courtesy of FORD MOTOR COMPANY

  1. 58.

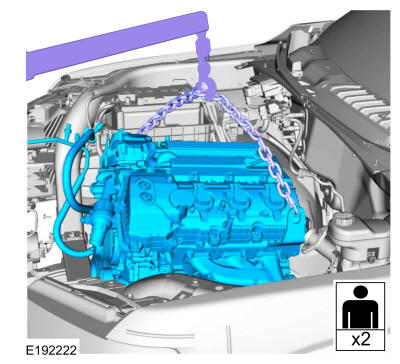

    Using the floor crane and chain, remove the engine.
GFD39867Courtesy of FORD MOTOR COMPANY
