Valve Cover LH: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: Installation of new spark plug seals or VCT seals is only required if seals are damaged.

1.

Remove the following items:
- Refer to: AIR CLEANER OUTLET PIPE
- Refer to: AIR CLEANER .

2.

Remove the crankcase vent tube.

GFD39784

Courtesy of FORD MOTOR COMPANY

3.

Remove the oil level indicator.

GFD39785

Courtesy of FORD MOTOR COMPANY

4.

Remove the LH ignition coil-on-plugs. Refer to: IGNITION COIL-ON-PLUG .

5.
- Disconnect the VCT oil control solenoid electrical connectors.
- Disconnect the oil pressure switch electrical connector.
- Detach the wiring harness retainers.

GFD39786

Courtesy of FORD MOTOR COMPANY

6.

NOTE: While removing the valve cover do not apply excessive force to the VCT oil control solenoid or damage may occur.

NOTE: If the VCT oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

Loosen the bolts and remove the valve cover.

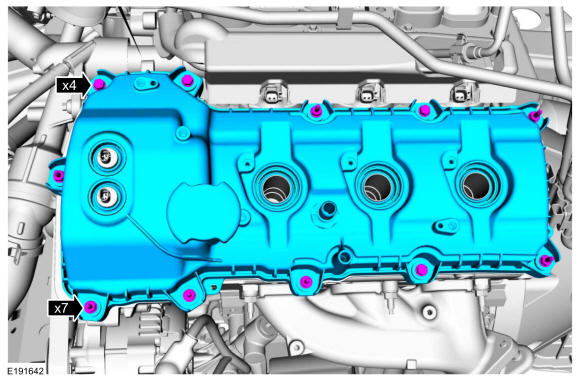

GFD39787

Courtesy of FORD MOTOR COMPANY

7.

Remove and discard the valve cover gasket.

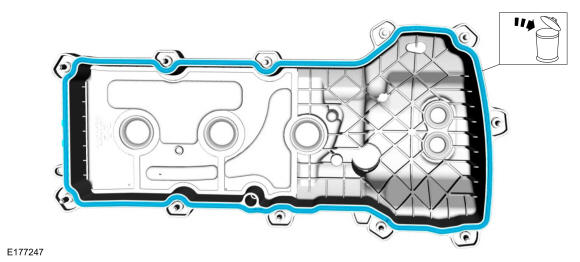

GFD39788

Courtesy of FORD MOTOR COMPANY

8.

NOTE: Inspect the VCT oil control solenoid seals. Remove any damaged seals.

If necessary, using the special tools, remove the VCT oil control solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone., 205-153 (T80T-4000-W) Handle.

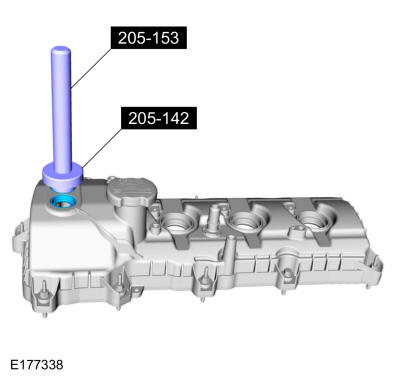

GFD39789

Courtesy of FORD MOTOR COMPANY

9.

NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

If necessary, using the special tools, remove the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer., 205-153 (T80T-4000-W) Handle.

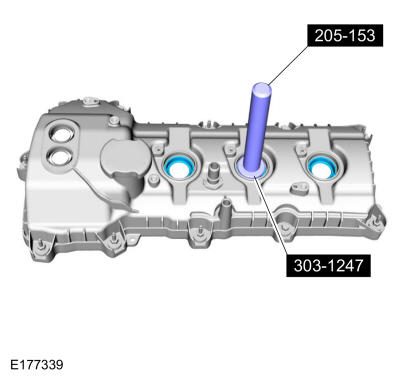

GFD39790

Courtesy of FORD MOTOR COMPANY

10.

Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper
Material

: Motorcraft ® Silicone Gasket Remover / ZC-30-A

Material

: Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Material

: Motorcraft ® Metal Surface Prep / ZC-31-B

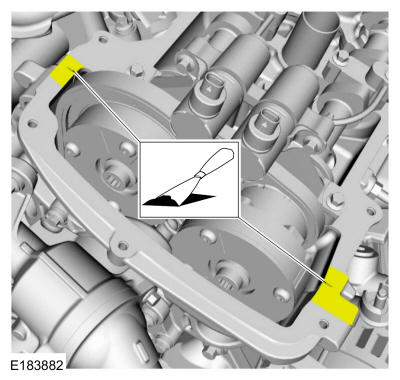

GFD39791

Courtesy of FORD MOTOR COMPANY
