Timing Chain: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.NOTE: It may be necessary to rotate the camshafts slightly, to align the timing marks.
Install the timing chain with the colored links aligned with the timing marks on the VCT units and the crankshaft sprocket.
- 4.
- Release the ratchet detent.

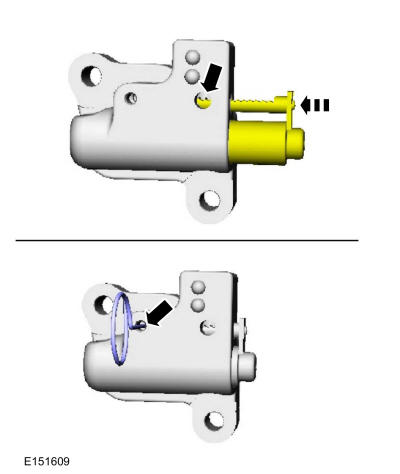

- Using a soft-jawed vise, compress the ratchet plunger.
- Align the hole in the ratchet plunger with the hole in the tensioner housing.
- Install a lockpin.
- 5.NOTE: It may be necessary to rotate the camshafts slightly to remove slack from the timing chain to install the tensioner.

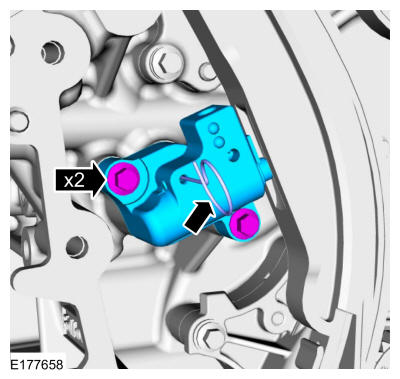

- Install the timing chain tensioner and the bolts.
Torque
: 89 lb.in (10 Nm)
- Remove the lockpin.
- Install the timing chain tensioner and the bolts.
- 6.
- As a post-check, verify correct alignment of all timing marks.
- There are 48 links in between the RH intake VCT unit colored link (1) and the LH intake VCT unit colored link (2).
- There are 35 links in between LH intake VCT unit colored link (2) and the 2 crankshaft sprocket links (3).
- 7.NOTE: Do not use excessive force when installing the VCT oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.NOTE: A slight twisting motion will aid in the installation of the VCT oil control solenoid.NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

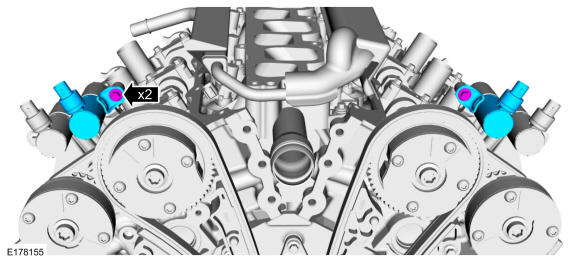

Install the VCT oil control solenoids and the bolts.
Torque
: Stage 1: 71 lb.in (8 Nm) Stage 2: 20 °
- 12.
Install the engine front cover. Refer to: Engine Front Cover .
