Oil Pump: Removal

4x2/4x4

1. 1.

   With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

1. 2.

   Remove the engine front cover. Refer to: Engine Front Cover .

1. 3.


   NOTE: Rotate the crankshaft in a clockwise direction only.

   Align the timing marks.

Courtesy of FORD MOTOR COMPANY

1. 4.

   Remove the bolts and the LH oil tube.

Courtesy of FORD MOTOR COMPANY

1. 5.


   NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

   Install Special Service Tool: 303-1248 Camshaft holding tools.

Courtesy of FORD MOTOR COMPANY

1. 6.

   Remove the bolts and the RH oil tube.

Courtesy of FORD MOTOR COMPANY

1. 7.


   NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

   Install Special Service Tool: 303-1248 Camshaft holding tools.

Courtesy of FORD MOTOR COMPANY

1. 8.

   Mark the timing chain link that aligns with the timing mark on the LH intake VCT unit as shown.

Courtesy of FORD MOTOR COMPANY

1. 9.

   Mark the timing chain link that aligns with the timing mark on the RH intake VCT unit as shown.

Courtesy of FORD MOTOR COMPANY

1. 10.


   NOTE: The crankshaft sprocket timing mark should be between the 2 colored links.

   Mark the timing chain links that aligns with the timing mark on the crankshaft sprocket as shown.

Courtesy of FORD MOTOR COMPANY

1. 11.

   Remove the bolts and the timing chain tensioner.

Courtesy of FORD MOTOR COMPANY

1. 12.

   Remove the timing chain tensioner arm.

Courtesy of FORD MOTOR COMPANY

1. 13.

   Remove the bolts and the lower LH timing chain guide.

Courtesy of FORD MOTOR COMPANY

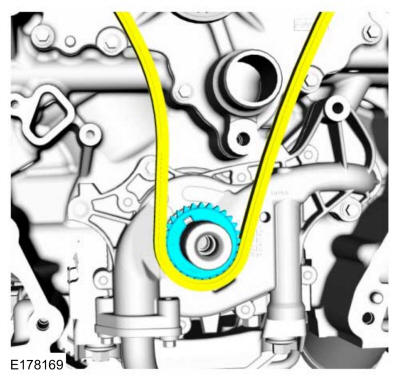

1. 14.

   Position the timing chain aside and remove the crankshaft sprocket.

Courtesy of FORD MOTOR COMPANY

1. 15.


   • If equipped, remove the bolts.
   • Release the retainer and remove the transmission housing cover.

Courtesy of FORD MOTOR COMPANY

1. 16.


   NOTE: Vehicles come with an underbody shield or a skid plate.
   • If equipped, remove the pin-type retainers.
   • Remove the bolts and the underbody shield.

Courtesy of FORD MOTOR COMPANY

1. 17.


   NOTE: Vehicles come with an underbody shield or a skid plate.

   If equipped, remove the bolts and the skid plate.

Courtesy of FORD MOTOR COMPANY

1. 18.

   Remove the bolt for the transmission cooler tube brackets from the radiator support.

Courtesy of FORD MOTOR COMPANY

1. 19.


   • Remove the oil pan plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
   • Install the oil pan drain plug.

     Torque

     : 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY

1. 20.

   Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY

1. 21.

   Remove the nuts, bolts and the crossmember.

Courtesy of FORD MOTOR COMPANY

4x4

1. 22.

   Using an adjustable stand, support the front axle. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

1. 23.

   Remove the upper front axle carrier mounting bushing bolt.

Courtesy of FORD MOTOR COMPANY

1. 24.

   Remove the axle shaft housing carrier bushing bolt.

Courtesy of FORD MOTOR COMPANY

1. 25.

   Remove the lower front axle carrier mounting bushing bolt.

Courtesy of FORD MOTOR COMPANY

1. 26.

   Using an adjustable stand, lower the axle to allow clearance for the oil pan to be removed. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

4x2/4x4

1. 27.

   Remove the engine bolt.

Courtesy of FORD MOTOR COMPANY

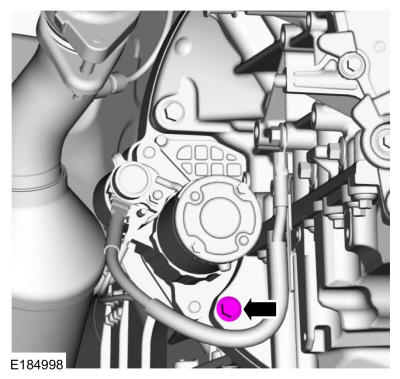

1. 28.

   Remove the transmission bolts.

Courtesy of FORD MOTOR COMPANY

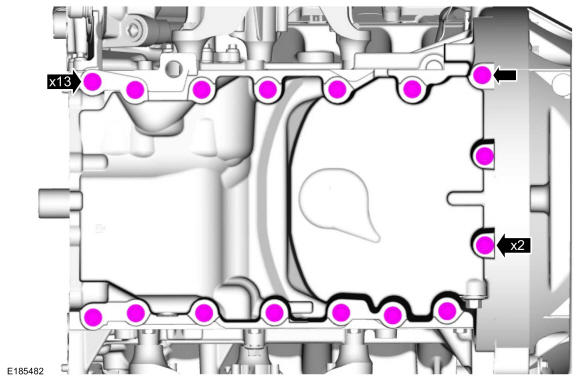

1. 29.

   Remove the oil pan bolts.

Courtesy of FORD MOTOR COMPANY

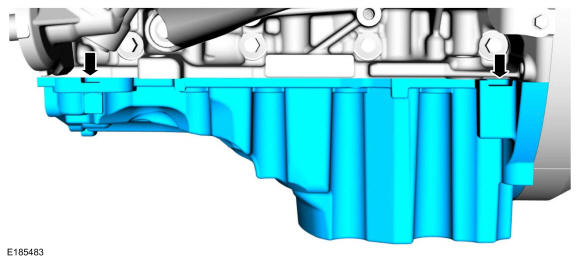

1. 30.

   Using a pry tool on the pry pads shown, remove the oil pan.

Courtesy of FORD MOTOR COMPANY

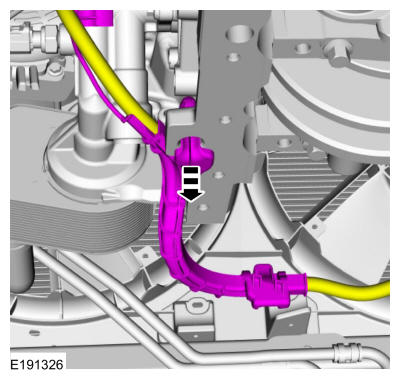

1. 31.


   NOTE: The generator wiring harness retainer is being removed for clearance to install the oil pan.

   Detach the generator wiring harness retainer from the engine block.

Courtesy of FORD MOTOR COMPANY

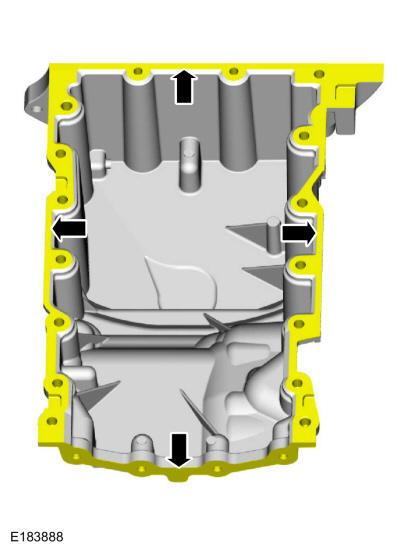

1. 32.


   NOTE: Only use a 3M™ Roloc ® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 RPM, to clean the oil pan. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean. These tools cause scratches and gouges that make leak paths.
   • Make sure that the mating faces of the oil pan are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

     Material

     : Motorcraft ® Silicone Gasket Remover / ZC-30-A

     Material

     : Metal Brake Parts Cleaner / PM-4-A, PM-4-B

     Material

     : Motorcraft ® Metal Surface Prep / ZC-31-B

   • Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.

Courtesy of FORD MOTOR COMPANY

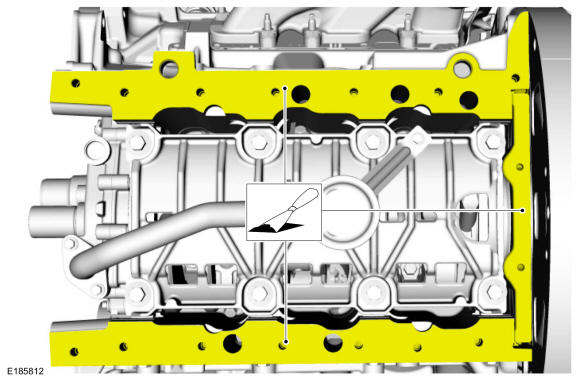

1. 33.


   NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc ® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

   Make sure that the mating faces of the engine block are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

   Material

   : Motorcraft ® Silicone Gasket Remover / ZC-30-A

   Material

   : Metal Brake Parts Cleaner / PM-4-A, PM-4-B

   Material

   : Motorcraft ® Metal Surface Prep / ZC-31-B

Courtesy of FORD MOTOR COMPANY

1. 34.

   Remove the bolts and oil pump screen and pickup tube.

Courtesy of FORD MOTOR COMPANY

1. 35.

   Remove and discard the oil pump screen and pickup tube O-ring seal.

Courtesy of FORD MOTOR COMPANY

1. 36.

   Remove the bolts and oil pump.

Courtesy of FORD MOTOR COMPANY
