Oil Pump: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

4x2/4x4

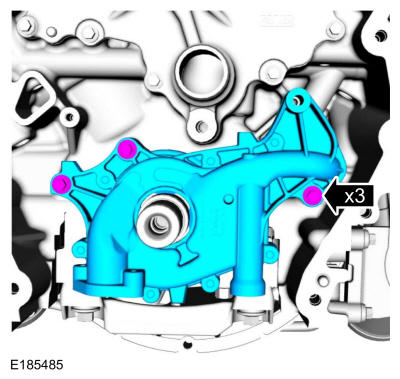

1.

Install the oil pump and the bolts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

2.

Install a new oil pump screen and pickup tube O-ring seal.

Courtesy of FORD MOTOR COMPANY

3.

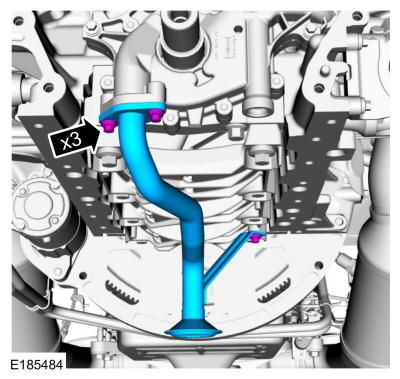

Install the oil pump screen and pickup tube and the bolts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

4.

NOTE: The oil pan and the specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

Apply a 3 mm (0.11 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

Material

: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

5.

Apply a 5.5 mm (0.21 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.
Material

: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

6.

NOTE: The oil pan and the specified bolts must be installed within 4 minutes of the start of sealant application.

NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

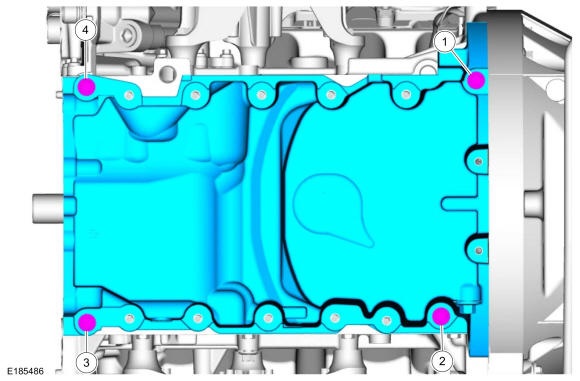

Install the bolts finger tight.

Courtesy of FORD MOTOR COMPANY

7.

NOTE: Do not torque at this time.

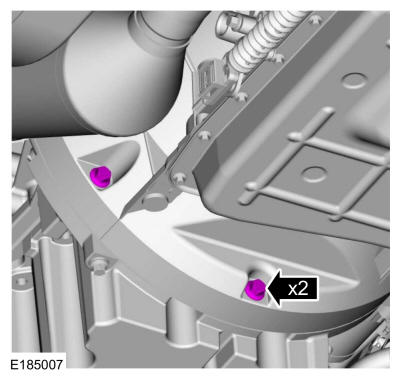

Install the transmission bolts.

Courtesy of FORD MOTOR COMPANY

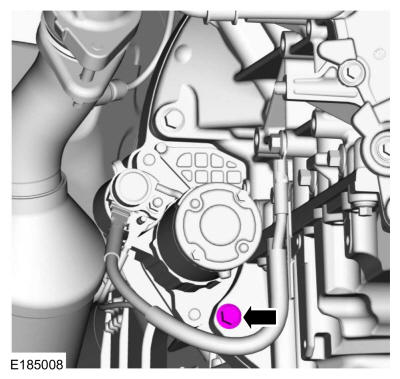

8.

NOTE: Do not torque at this time.

Install the engine bolt.

Courtesy of FORD MOTOR COMPANY

9.

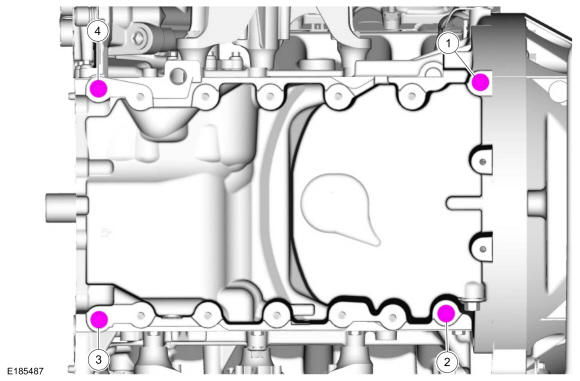

Tighten the oil pan bolts in sequence.
Torque

: 27 lb.in (3 Nm)

Fig 1: Oil Pan Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

10.

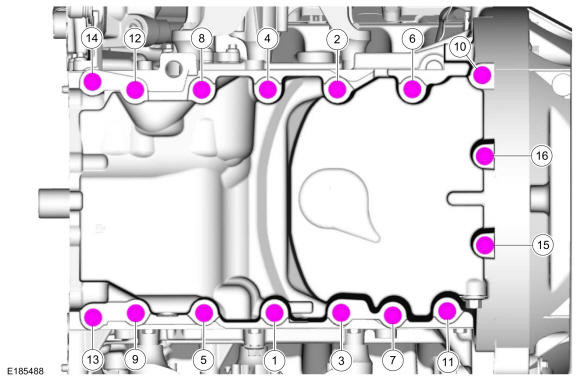

Install the remaining oil pan bolts and tighten in sequence shown.
Torque

: Stage 1: Tighten bolts 1 through 14 to: 18 lb.ft (24 Nm) Stage 2: Tighten bolt 10 an additional: 90 ° Stage 3: Tighten bolts 15 and 16 to: 89 lb.in (10 Nm)

Fig 2: Oil Pan Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

11.

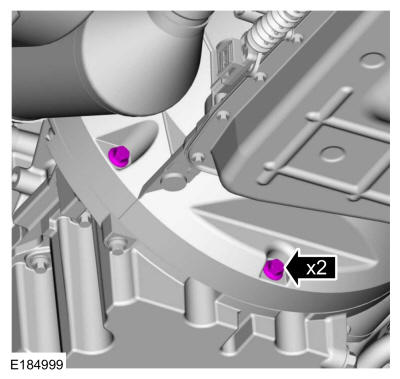

Tighten the transmission bolts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

12.

Tighten the engine bolt.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

13.

Attach the generator wiring harness retainer to the engine block.

Courtesy of FORD MOTOR COMPANY

4x4

14.

Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

15.

Install the lower front axle carrier mounting bushing bolt.
Torque

: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

16.

Install the axle shaft housing carrier bushing bolt.
Torque

: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

17.

Install the upper front axle carrier mounting bushing bolt.
Torque

: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

18.

Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

4x2/4x4

19.

Install the crossmember, bolts and the nuts.
Torque

: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

20.

NOTE: Do not lubricate the engine oil filter gasket.

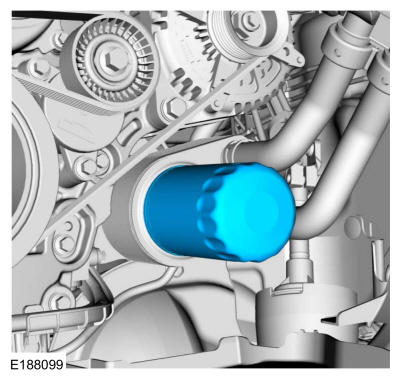

Install the new engine oil filter.

Torque

: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 °

Courtesy of FORD MOTOR COMPANY

21.

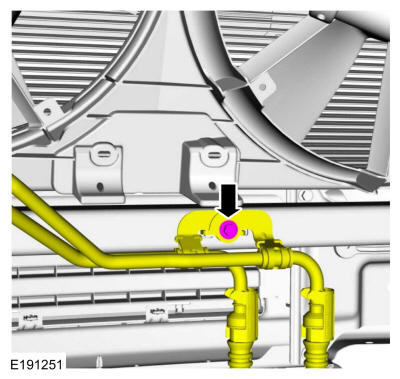

Position the transmission cooler tube brackets to the radiator support and install the bolt.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

22.

If equipped, install the skid plate and the bolts.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

23.
- If equipped, install the underbody shield and bolts.
  Torque

  : 30 lb.ft (40 Nm)
- Install the the pin-type retainers.

Courtesy of FORD MOTOR COMPANY

24.
- If equipped, install the transmission housing cover and attach the retainer.
- Install the bolts.
  Torque

  : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

25.

Install the crankshaft sprocket with the timing dot mark out.

Courtesy of FORD MOTOR COMPANY

26.

NOTE: It may be necessary to rotate the camshafts slightly, to align the timing marks.

Install the timing chain with the colored links aligned with the timing marks on the VCT units and the crankshaft sprocket.

Courtesy of FORD MOTOR COMPANY

27.

Install the lower LH timing chain guide and the bolts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

28.

Install the timing chain tensioner arm.

Courtesy of FORD MOTOR COMPANY

29.
- Release the ratchet detent.
- Using a soft-jawed vise, compress the ratchet plunger.
- Align the hole in the ratchet plunger with the hole in the tensioner housing.
- Install a lockpin.

Courtesy of FORD MOTOR COMPANY

30.

NOTE: It may be necessary to rotate the camshafts slightly to remove slack from the timing chain to install the tensioner.
- Install the timing chain tensioner and the bolts.
  Torque

  : 89 lb.in (10 Nm)
- Remove the lockpin.

Courtesy of FORD MOTOR COMPANY

31.
- As a post-check, verify correct alignment of all timing marks.
- There are 48 links in between the RH intake VVT unit colored link (1) and the LH intake VVT unit colored link (2).
- There are 35 links in between LH intake VVT unit colored link (2) and the crankshaft sprocket links (3).

Courtesy of FORD MOTOR COMPANY

32.

Remove Special Service Tool: 303-1248 Camshaft holding tools.

Courtesy of FORD MOTOR COMPANY

33.

Install the RH oil tube and the bolts.
Torque

: Stage 1: 71 lb.in (8 Nm) Stage 2: 45 °

Courtesy of FORD MOTOR COMPANY

34.

Remove Special Service Tool: 303-1248 Camshaft holding tools.

Courtesy of FORD MOTOR COMPANY

35.

Install the LH oil tube and the bolts.
Torque

: Stage 1: 71 lb.in (8 Nm) Stage 2: 45 °

Courtesy of FORD MOTOR COMPANY

36.

Install the engine front cover. Refer to: Engine Front Cover .
