Oil Pan: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

4x2/4x4

1.

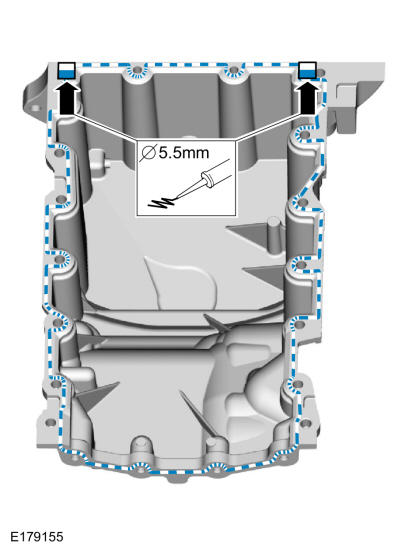

Apply a 5.5 mm (0.21 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the 2 crankshaft engine front cover-to-cylinder block joint areas.
Material

: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

2.

NOTE: The oil pan and the specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

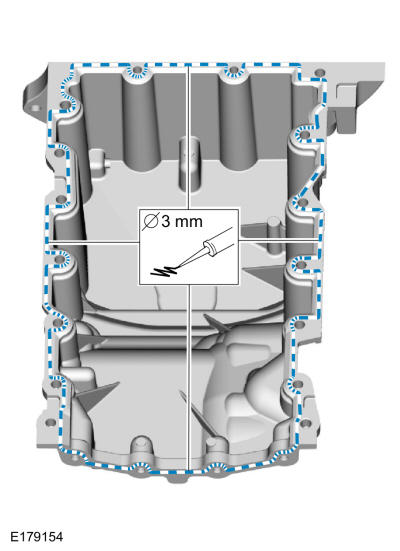

Apply a 3 mm (0.11 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

Material

: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

3.

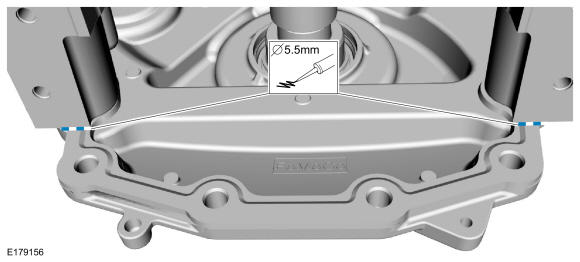

Apply a 5.5 mm (0.21 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.
Material

: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

4.

NOTE: The oil pan and the specified bolts must be installed within 4 minutes of the start of sealant application.

NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

Install the bolts finger tight.

Courtesy of FORD MOTOR COMPANY

5.

NOTE: Do not torque at this time.

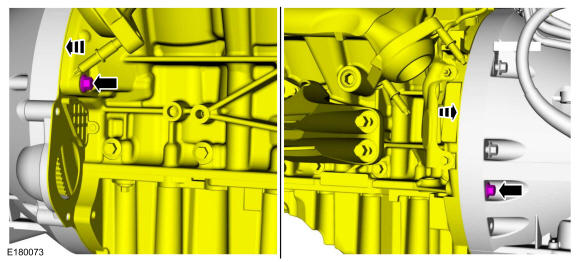

Draw the transmission and engine together using the bolts.

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Do not torque at this time.

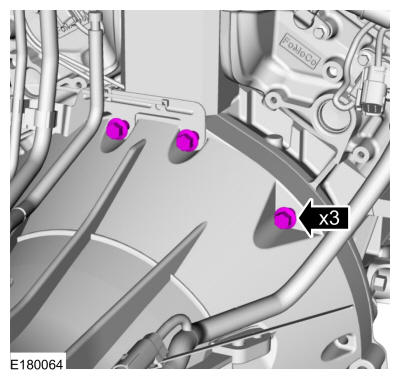

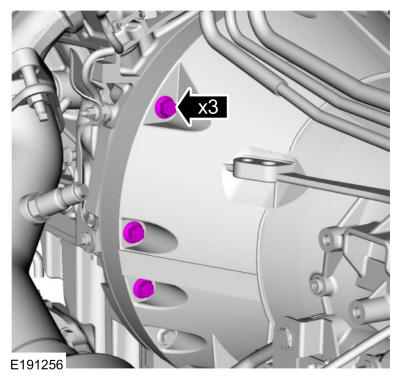

Install the transmission bolts.

Courtesy of FORD MOTOR COMPANY

7.

NOTE: Do not torque at this time.

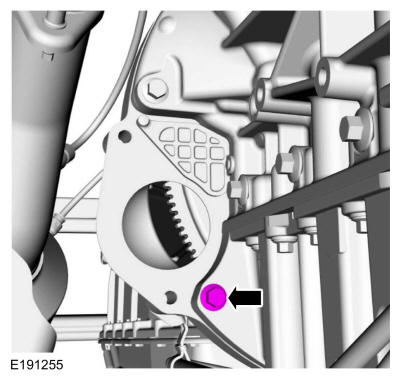

Install the transmission bolt.

Courtesy of FORD MOTOR COMPANY

8.

Tighten the oil pan bolts in sequence.
Torque

: 27 lb.in (3 Nm)

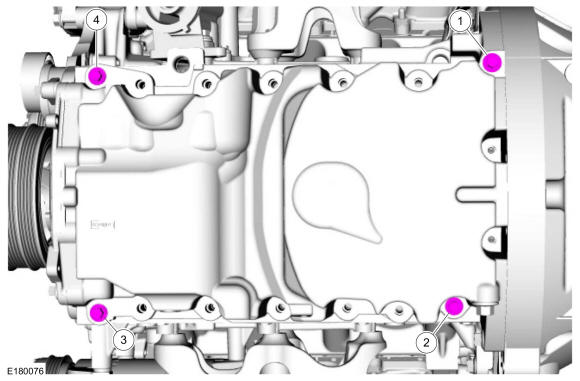

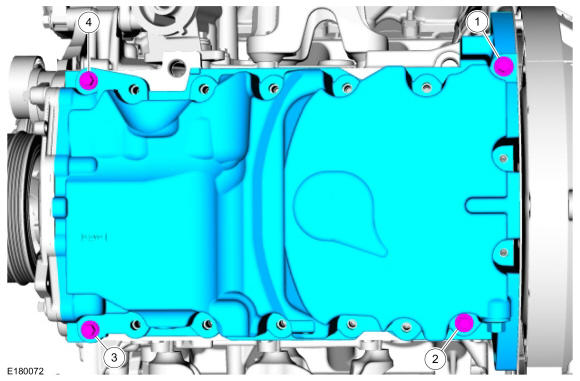

Fig 1: Oil Pan Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

9.

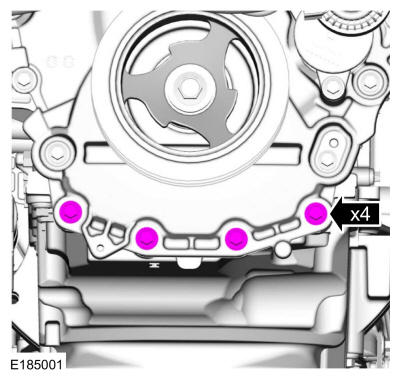

Install the engine front cover bolts finger tight.

Courtesy of FORD MOTOR COMPANY

10.

Install the remaining oil pan bolts and tighten in sequence shown.
Torque

: Stage 1: Tighten bolts 1 through 14 to: 18 lb.ft (24 Nm) Stage 2: Tighten bolt 10 an additional: 90 ° Stage 3: Tighten bolts 15 and 16 to: 89 lb.in (10 Nm)

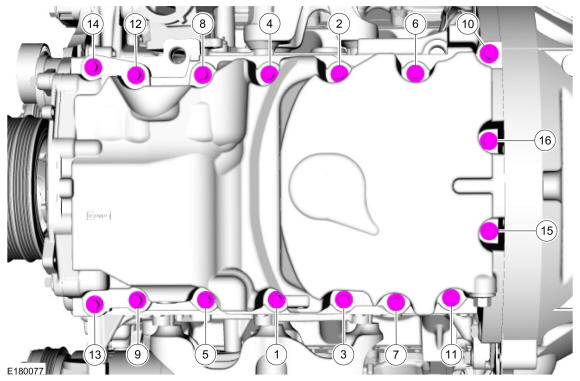

Fig 2: Oil Pan Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

11.

Tighten the engine front cover bolts.
Torque

: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

12.

Tighten the transmission bolts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

13.

Tighten the transmission bolts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

14.

Tighten the engine bolts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

15.

NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

Tighten the 2 transmission crossmember nuts.

Torque

: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

16.

Attach the generator wiring harness retainer to the engine block.

Courtesy of FORD MOTOR COMPANY

4x4

17.

Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

18.

Install the lower front axle carrier mounting bushing bolt.
Torque

: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

19.

Install the axle shaft housing carrier bushing bolt.
Torque

: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

20.

Install the upper front axle carrier mounting bushing bolt.
Torque

: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

21.

Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

4x2/4x4

22.

Install the crossmember, bolts and the nuts.
Torque

: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

23.

Install the starter motor. Refer to: STARTER MOTOR .

24.

Connect the generator wiring to the engine front cover.

Courtesy of FORD MOTOR COMPANY

25.

Position the wiring harness and transmission cooler tube bracket and install the nut.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

26.

Install the wiring harness retainer in the oil pan.

Courtesy of FORD MOTOR COMPANY

27.

NOTE: Do not lubricate the engine oil filter gasket.

Install the new engine oil filter.

Torque

: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 °

Courtesy of FORD MOTOR COMPANY

28.

Position the transmission cooler tube brackets to the radiator support and install the bolt.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

29.

Tighten the transmission bolts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

30.

If equipped, attach the transfer case vent tube retainer.

Courtesy of FORD MOTOR COMPANY

31.

If equipped, install the skid plate and the bolts.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

32.
- If equipped, install the underbody shield and bolts.
  Torque

  : 30 lb.ft (40 Nm)
- Install the pin-type retainers.

Courtesy of FORD MOTOR COMPANY

33.
- If equipped, install the transmission housing cover and attach the retainer.
- Install the bolts.
  Torque

  : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

34.

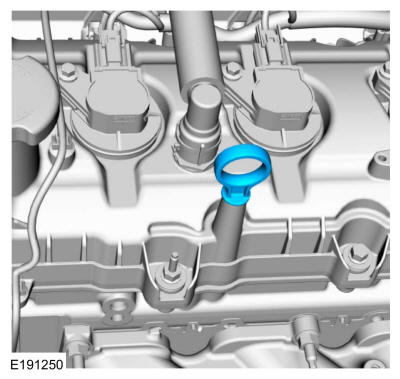

Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY

35.

Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

36.

NOTE: Do not expose the Motorcraft ® High Performance Engine RTV Silicone to engine oil for at least 90 minutes after installing the oil pan. Failure to follow these instructions may cause engine oil leakage.

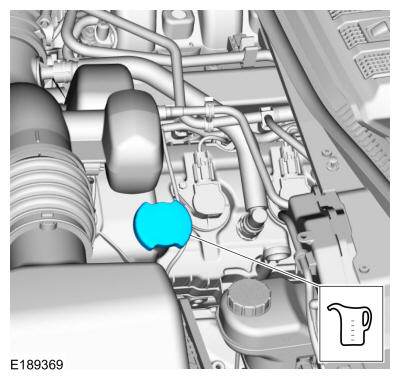

Fill the engine with clean engine oil. Refer to: Specifications .

Material

: Motorcraft ® SAE 5W-20 Premium Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY
