Oil Cooler: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment

Courtesy of FORD MOTOR COMPANY

3.
1. 1.

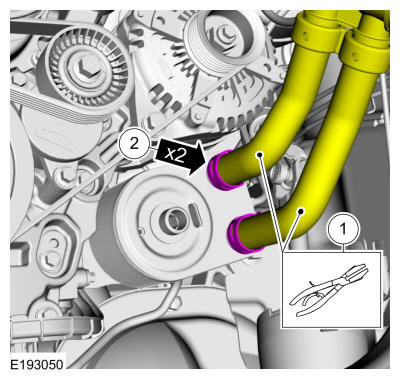

  Using hose locking pliers, clamp the oil cooler coolant hoses. Use the General Equipment: Locking Pliers
1. 2.

  Using the hose clamp remover, remove the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

4.

NOTE: If metal or foreign material is present in the oil cooler, mechanical concerns exist. To diagnose the mechanical concerns refer to ENGINE .

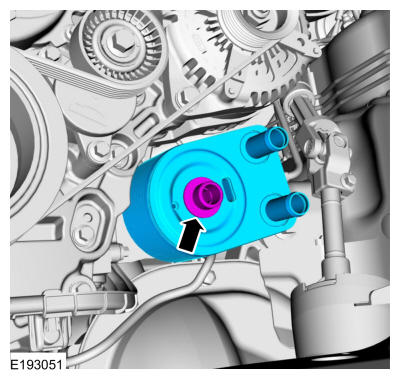

Remove the bolt and the oil cooler.

Courtesy of FORD MOTOR COMPANY
