Oil Cooler: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: Make sure the oil cooler-to-oil filter adapter is aligned.

Install the oil cooler and the bolt.

Torque

: 43 lb.ft (58 Nm)

GFD39713

Courtesy of FORD MOTOR COMPANY

2.

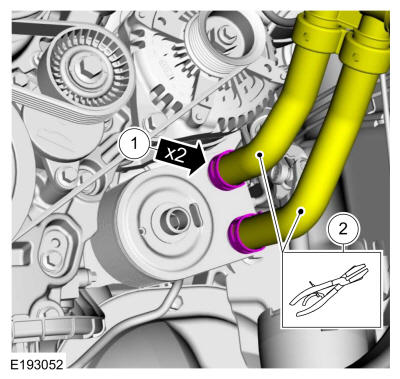

1. 1.

  Using the hose clamp installer, install the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
1. 2.

  Remove the hose locking pliers.

GFD39714

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Do not lubricate the engine oil filter gasket.

Install a new engine oil filter.

Torque

: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 °

GFD39617

Courtesy of FORD MOTOR COMPANY

4.

Inspect and adjust the coolant level in the degas bottle.
Material

: Motorcraft ® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

5.

Inspect and adjust the engine oil level.
Material

: Motorcraft ® SAE 5W-20 Premium Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
