Lower Intake Manifold: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE:
It is not necessary to remove the fuel rail from the intake manifold assembly.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.
Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE
- 3.
Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
- 4.
Drain the cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
- 5.
Remove the upper intake manifold. Refer to: Upper Intake Manifold .
- 6.

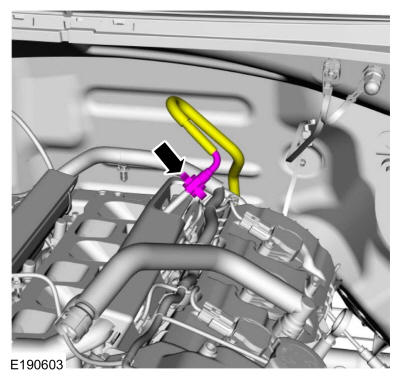

Disconnect the fuel tube quick release coupling. Refer to: QUICK RELEASE COUPLING .
- 8.
Remove the thermostat housing. Refer to: THERMOSTAT HOUSING .
