Exhaust Manifold RH: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

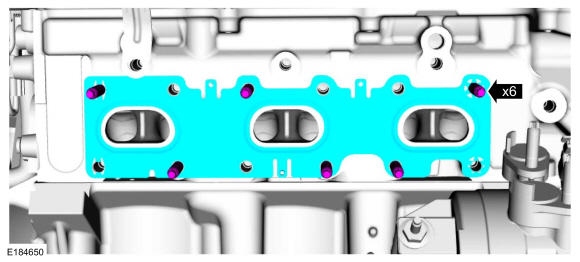

- Install the new exhaust manifold studs.
  Torque

  : 106 lb.in (12 Nm)
- Install the new exhaust manifold gasket.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: Failure to tighten the exhaust manifold nuts to specification a second time will cause the exhaust manifold to develop an exhaust leak.

Install the exhaust manifold and the new nuts.

Torque

: Stage 1: 168 lb.in (19 Nm) Stage 2: 18 lb.ft (25 Nm)

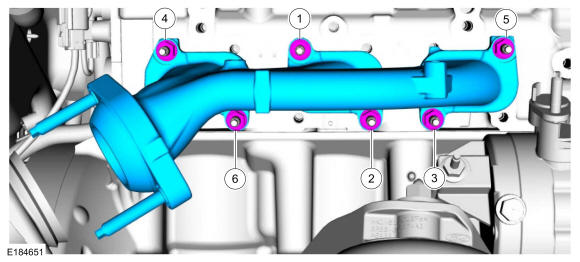

Fig 1: RH Exhaust Manifold Nuts Tightening Sequence

Courtesy of FORD MOTOR CO.

3.

Install the RH front wheel and tire. Refer to: Wheel and Tire .

4.

Install the new RH catalytic converter-to-exhaust manifold nuts.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

5.

Install the new LH and RH catalytic converter-to-exhaust manifold nuts.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

6.
- Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the new bolts.
- Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.
  Torque

  : 46 lb.ft (63 Nm)
- Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.
  Torque

  : 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

7.

If equipped, install the skid plate and the bolts.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

8.
- If equipped, install the underbody shield and bolts.
  Torque

  : 30 lb.ft (40 Nm)
- Install the pin-type retainers.

Courtesy of FORD MOTOR COMPANY

9.
- If equipped, install the transmission housing cover and attach the retainer.
- Install the bolts.
  Torque

  : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

10.

Start the engine and check the exhaust for leaks.
