Engine Mount RH: Removal

4x2/4x4

1. 1.

   With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

1. 2.


   NOTE: RH shown, LH similar.

   Index-mark the hood hinge location to aid in hood installation.

Courtesy of FORD MOTOR COMPANY

1. 3.

   Remove the nuts and the hood.

Courtesy of FORD MOTOR COMPANY

1. 4.


   NOTE: LH shown, RH similar.

   1. 1.

      Release the clip.

   1. 2.

      Detach and position the hood shock aside.

Courtesy of FORD MOTOR COMPANY

1. 5.

   Remove the upper intake manifold. Refer to: Upper Intake Manifold .

1. 6.

   Install Special Service Tool: 303-1245 Engine Lift Eye.

Courtesy of FORD MOTOR COMPANY

1. 7.

   Install Special Service Tool: 303-F070 Support Bar, Engine., 303-1454 Engine Spreader Bar.

Courtesy of FORD MOTOR COMPANY

1. 8.


   • If equipped, remove the bolts.
   • Release the retainer and remove the transmission housing cover.

Courtesy of FORD MOTOR COMPANY

1. 9.


   NOTE: Vehicles come with an underbody shield or a skid plate.
   • If equipped, remove the pin-type retainers.
   • Remove the bolts and the underbody shield.

Courtesy of FORD MOTOR COMPANY

1. 10.


   NOTE: Vehicles come with an underbody shield or a skid plate.

   If equipped, remove the bolts and the skid plate.

Courtesy of FORD MOTOR COMPANY

4x4

1. 11.

   Remove the front driveshaft. Refer to: Front Driveshaft .

4x2/4x4

1. 12.


   NOTE: Make sure that the mating faces are clean and free of foreign material.

   Remove and discard the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.

Courtesy of FORD MOTOR COMPANY

1. 13.


   NOTE: Make sure that the mating faces are clean and free of foreign material.

   Remove and discard the LH catalytic converter-to-exhaust manifold nuts.

Courtesy of FORD MOTOR COMPANY

1. 14.


   NOTE: Make sure that the mating faces are clean and free of foreign material.

   Remove and discard the RH catalytic converter-to-exhaust manifold nuts.

Courtesy of FORD MOTOR COMPANY

1. 15.


   NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

   Loosen the transmission mount-to-crossmember nuts.

Courtesy of FORD MOTOR COMPANY

1. 16.

   Remove the A/C compressor belt. Refer to: AIR CONDITIONING (A/C) COMPRESSOR BELT

1. 17.

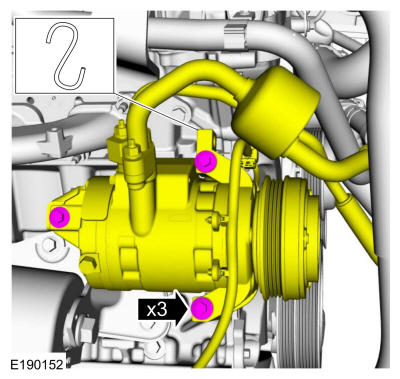

   Remove the bolts, position and support the A/C compressor aside.

Courtesy of FORD MOTOR COMPANY

1. 18.

   Remove the starter. Refer to: STARTER MOTOR .

1. 19.

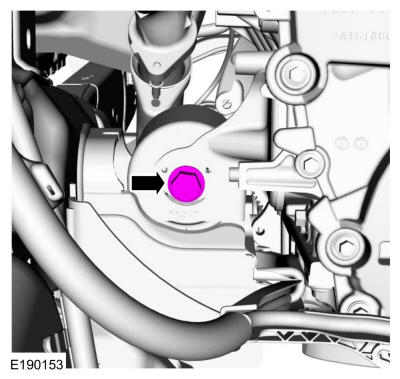

   NOTE: Only use hand tools when loosening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Remove and discard the RH engine mount through bolt.

Courtesy of FORD MOTOR COMPANY

1. 20.


   NOTE: Only use hand tools when loosening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Remove and discard the LH engine mount through bolt.

Courtesy of FORD MOTOR COMPANY

1. 21.


   NOTE: Only use hand tools when removing the engine mount nuts, stud bolts or damage to the engine mount can occur.
   • Remove and discard the RH engine mount nuts.
   • Remove the RH engine mount stud bolts.

Courtesy of FORD MOTOR COMPANY

1. 22.

   Using the engine support bar, raise the engine approximately 30 mm (1.18 in). Use Special Service Tool: 303-F070 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

1. 23.

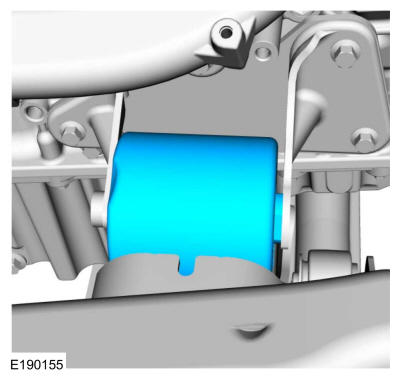

   Remove the RH engine mount.

Courtesy of FORD MOTOR COMPANY

1. 24.

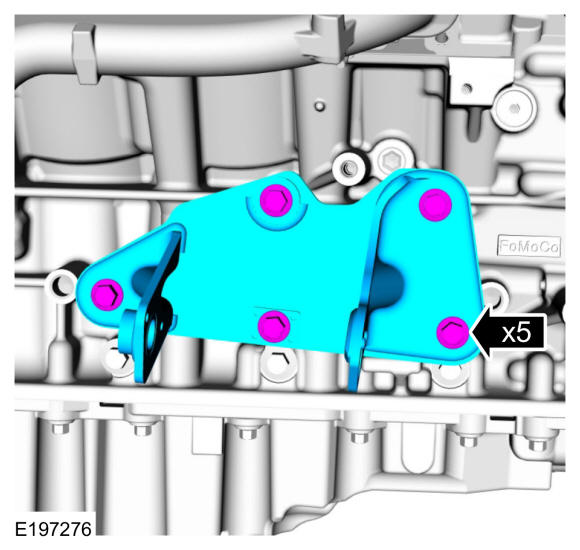

   Remove the bolts and the RH engine mount-to-cylinder block bracket.

Courtesy of FORD MOTOR COMPANY
