Engine Mount RH: Installation

4x2/4x4

1. 1.


   NOTE: Clean the engine mount-to-cylinder block mating surfaces of any dirt or foreign material prior to installation.

   Position the RH engine mount-to-cylinder block bracket and install the bolts.

   Torque

   : 57 lb.ft (77 Nm)

Courtesy of FORD MOTOR COMPANY

1. 2.


   NOTE: Clean the engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

   Position the RH engine mount into the vehicle.

Courtesy of FORD MOTOR COMPANY

1. 3.


   NOTE: Only use hand tools when installing the engine mount stud bolts or damage to the engine mount can occur.
   NOTE: Apply threadlock to the engine mount stud bolts.

   Install the RH engine mount stud bolts.

   Material

   : Threadlock 262 / TA-26 (WSK-M2G351-A6)

   Torque

   : 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

1. 4.


   NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

   Install the new RH engine mount nuts.

   Torque

   : 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY

1. 5.

   Using the engine support bar, lower the engine to the installed position. Use Special Service Tool: 303-F070 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

1. 6.


   NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Install the new LH engine mount through bolt.

   Torque

   : 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY

1. 7.


   NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Install the new RH engine mount through bolt.

   Torque

   : 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY

1. 8.

   Install the starter motor. Refer to: STARTER MOTOR .

1. 9.

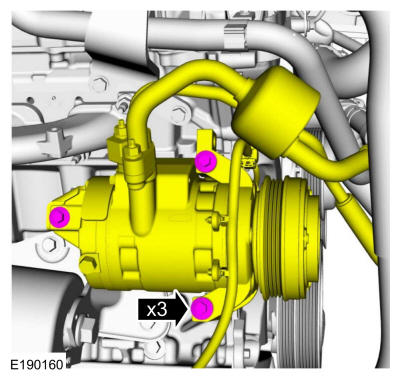

   Position the A/C compressor and install the bolts.

   Torque

   : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

1. 10.

   Install the A/C compressor belt. Refer to: AIR CONDITIONING (A/C) COMPRESSOR BELT

1. 11.


   NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

   Tighten the transmission mount-to-crossmember nuts.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 12.

   Install the new RH catalytic converter-to-exhaust manifold nuts.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 13.

   Install the new LH and RH catalytic converter-to-exhaust manifold nuts.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 14.


   • Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the new bolts.
   • Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

     Torque

     : 46 lb.ft (63 Nm)

   • Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

     Torque

     : 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

4x4

1. 15.

   Install the front driveshaft. Refer to: Front Driveshaft .

4x2/4x4

1. 16.

   If equipped, install the skid plate and the bolts.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 17.


   • If equipped, install the underbody shield and bolts.

     Torque

     : 30 lb.ft (40 Nm)

   • Install the pin-type retainers.

Courtesy of FORD MOTOR COMPANY

1. 18.


   • If equipped, install the transmission housing cover and attach the retainer.
   • Install the bolts.

     Torque

     : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

1. 19.

   Remove Special Service Tool: 303-F070 Support Bar, Engine., 303-1454 Engine Spreader Bar.

Courtesy of FORD MOTOR COMPANY

1. 20.

   Remove Special Service Tool: 303-1245 Engine Lift Eye.

Courtesy of FORD MOTOR COMPANY

1. 21.

   Install the upper intake manifold. Refer to: Upper Intake Manifold .

1. 22.


   NOTE: LH shown, RH similar.

   1. 1.

      Position the hood shock and attach.

   1. 2.

      Install the clip.

Courtesy of FORD MOTOR COMPANY

1. 23.

   Position the hood and install the nuts.

   Torque

   : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

1. 24.

   Start and check the exhaust system for leaks.
