Engine Mount LH: Removal

4x2/4x4

1. 1.

   With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

1. 2.


   NOTE: RH shown, LH similar.

   Index-mark the hood hinge location to aid in hood installation.

Courtesy of FORD MOTOR COMPANY

1. 3.

   Remove the nuts and the hood.

Courtesy of FORD MOTOR COMPANY

1. 4.

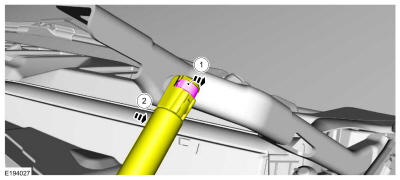

   NOTE: LH shown, RH similar.

   1. 1.

      Release the clip.

   1. 2.

      Detach and position the hood shock aside.

Courtesy of FORD MOTOR COMPANY

1. 5.

   Remove the upper intake manifold. Refer to: Upper Intake Manifold .

1. 6.

   Install Special Service Tool: 303-1245 Engine Lift Eye.

Courtesy of FORD MOTOR COMPANY

1. 7.

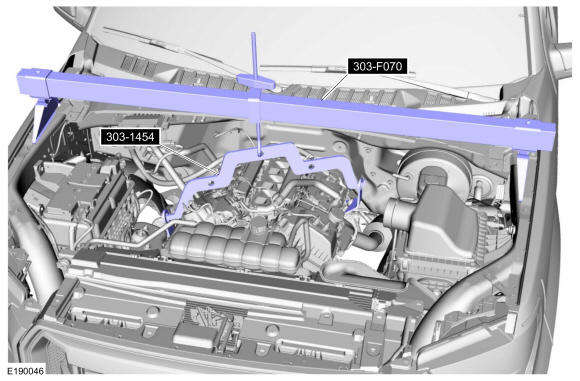

   Install Special Service Tool: 303-F070 Support Bar, Engine., 303-1454 Engine Spreader Bar.

Courtesy of FORD MOTOR COMPANY

1. 8.


   • If equipped, remove the bolts.
   • Release the retainer and remove the transmission housing cover.

Courtesy of FORD MOTOR COMPANY

1. 9.


   NOTE: Vehicles come with an underbody shield or a skid plate.
   • If equipped, remove the pin-type retainers.
   • Remove the bolts and the underbody shield.

Courtesy of FORD MOTOR COMPANY

1. 10.


   NOTE: Vehicles come with an underbody shield or a skid plate.

   If equipped, remove the bolts and the skid plate.

Courtesy of FORD MOTOR COMPANY

4x4

1. 11.

   Remove the front driveshaft. Refer to: Front Driveshaft .

4x2/4x4

1. 12.


   NOTE: Make sure that the mating faces are clean and free of foreign material.

   Remove and discard the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.

Courtesy of FORD MOTOR COMPANY

1. 13.


   NOTE: Make sure that the mating faces are clean and free of foreign material.

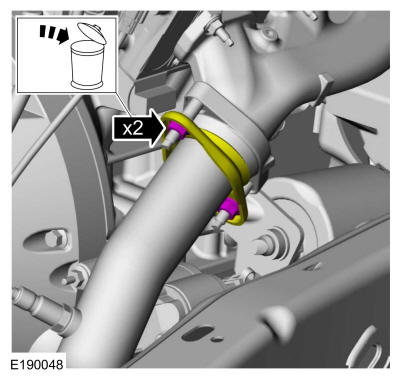

   Remove and discard the LH catalytic converter-to-exhaust manifold nuts.

Courtesy of FORD MOTOR COMPANY

1. 14.


   NOTE: Make sure that the mating faces are clean and free of foreign material.

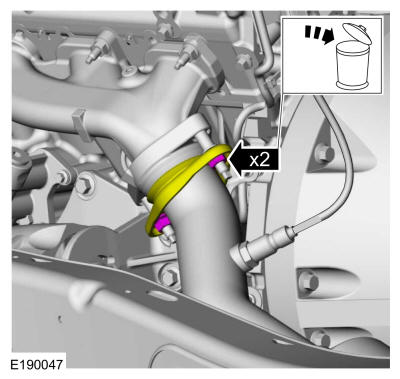

   Remove and discard the RH catalytic converter-to-exhaust manifold nuts.

Courtesy of FORD MOTOR COMPANY

1. 15.


   NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

   Loosen the transmission mount-to-crossmember nuts.

Courtesy of FORD MOTOR COMPANY

1. 16.


   NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

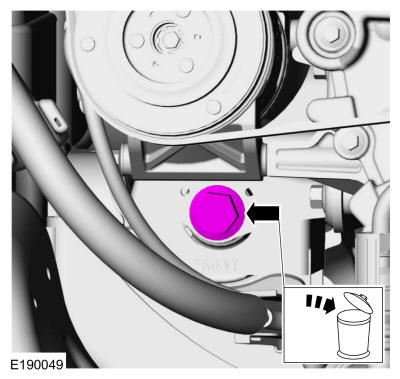

   Remove and discard the RH engine mount through bolt.

Courtesy of FORD MOTOR COMPANY

1. 17.


   NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.
   NOTE: 4x4 shown, 4x2 similar.

   Remove and discard the LH engine mount through bolt.

Courtesy of FORD MOTOR COMPANY

1. 18.

   Using the engine support bar, raise the engine approximately 30 mm (1.18 in). Use Special Service Tool: 303-F070 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

1. 19.


   NOTE: Only use hand tools when removing or installing the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.

   Remove and discard the LH engine mount-to-frame bolts.

Courtesy of FORD MOTOR COMPANY

4x4

1. 20.

   Using an adjustable stand, support the front axle. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

1. 21.

   Remove the upper front axle carrier mounting bushing bolt.

Courtesy of FORD MOTOR COMPANY

1. 22.

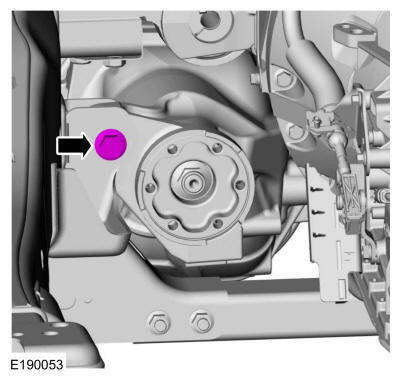

   Remove the axle shaft housing carrier bushing bolt.

Courtesy of FORD MOTOR COMPANY

1. 23.

   Remove the lower front axle carrier mounting bushing bolt.

Courtesy of FORD MOTOR COMPANY

1. 24.

   Using an adjustable stand, lower the front axle to allow clearance to the LH engine mount. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

4x2/4x4

1. 25.

   Remove the LH engine mount.

Courtesy of FORD MOTOR COMPANY

1. 26.



   1. 1.

      Inspect the engine mount-to-frame nut plate for thread damage.

   1. 2.

      If the nut plate is damaged, remove and discard the engine mount-to-frame nut plate.

Courtesy of FORD MOTOR COMPANY

1. 27.

   Detach the generator wiring harness retainer from the oil filter adapter.

Courtesy of FORD MOTOR COMPANY

1. 28.

   Detach the generator wiring harness from the engine front cover.

Courtesy of FORD MOTOR COMPANY

1. 29.

   Detach the generator wiring harness retainer from the lower LH side of the engine block.

Courtesy of FORD MOTOR COMPANY

1. 30.

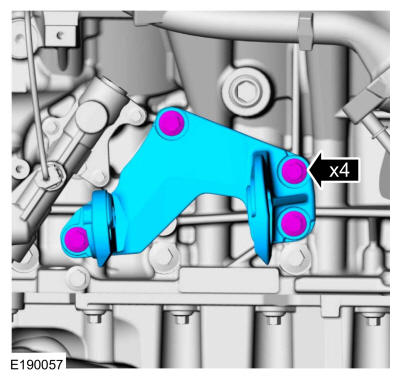

   Remove the 4 bolts and the LH engine mount-to-cylinder block bracket.

Courtesy of FORD MOTOR COMPANY
