Engine Mount LH: Installation

4x2/4x4

1. 1.

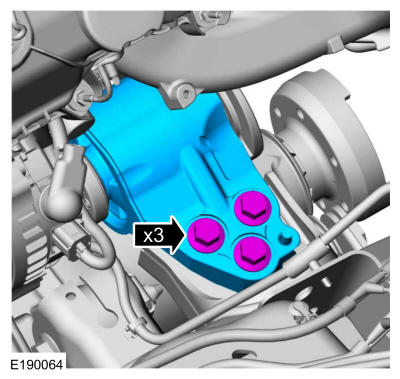

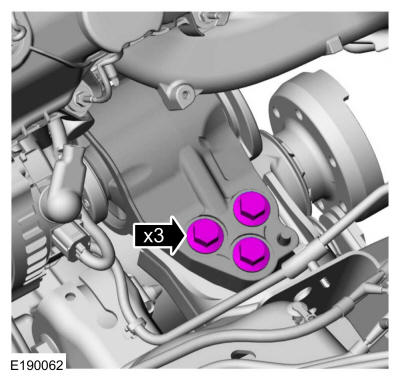

   Install the LH engine mount-to-cylinder block bracket and install the bolts.

   Torque

   : 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

1. 2.

   Attach the generator wiring harness retainer to the lower LH side of the engine block.

Courtesy of FORD MOTOR COMPANY

1. 3.

   Attach the generator wiring harness to the engine front cover.

Courtesy of FORD MOTOR COMPANY

1. 4.

   Attach the generator wiring harness retainer to the oil filter adapter.

Courtesy of FORD MOTOR COMPANY

1. 5.


   NOTE: Replace the nut plate with part number W716699-S439.

   If removed, install a new engine mount-to-frame nut plate.

Courtesy of FORD MOTOR COMPANY

1. 6.


   NOTE: Clean the engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.
   • Position the LH engine mount and hand start the new engine mount-to-frame bolts.
   • Do not torque at this time.

Courtesy of FORD MOTOR COMPANY

4x4

1. 7.

   Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

1. 8.

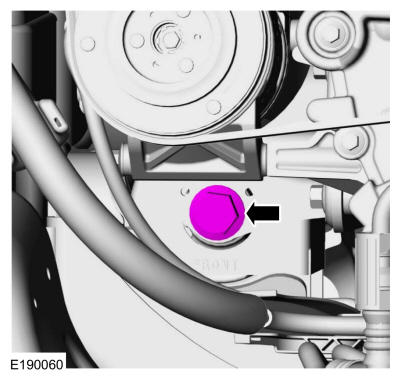

   Install the lower front axle carrier mounting bushing bolt.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 9.

   Install the axle shaft housing carrier bushing bolt.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 10.

   Install the upper front axle carrier mounting bushing bolt.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 11.

   Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

4x2/4x4

1. 12.

   Tighten the LH engine mount-to-frame bolts.

   Torque

   : 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY

1. 13.

   Using the engine support bar, lower the engine to the installed position. Use Special Service Tool: 303-F070 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

1. 14.


   NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Install the new LH engine mount through bolt.

   Torque

   : 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY

1. 15.


   NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Install the new RH engine mount through bolt.

   Torque

   : 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY

1. 16.


   NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

   Tighten the transmission mount-to-crossmember nuts.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 17.

   Install the new RH catalytic converter-to-exhaust manifold nuts.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 18.

   Install the new LH and RH catalytic converter-to-exhaust manifold nuts.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 19.


   • Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the new bolts.
   • Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

     Torque

     : 46 lb.ft (63 Nm)

   • Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

     Torque

     : 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

4x4

1. 20.

   Install the front driveshaft. Refer to: Front Driveshaft .

4x2/4x4

1. 21.

   If equipped, install the skid plate and the bolts.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 22.


   • If equipped, install the underbody shield and bolts.

     Torque

     : 30 lb.ft (40 Nm)

   • Install the pin-type retainers.

Courtesy of FORD MOTOR COMPANY

1. 23.


   • If equipped, install the transmission housing cover and attach the retainer.
   • Install the bolts.

     Torque

     : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

1. 24.

   Remove Special Service Tool: 303-F070 Support Bar, Engine., 303-1454 Engine Spreader Bar.

Courtesy of FORD MOTOR COMPANY

1. 25.

   Remove Special Service Tool: 303-1245 Engine Lift Eye.

Courtesy of FORD MOTOR COMPANY

1. 26.

   Install the upper intake manifold. Refer to: Upper Intake Manifold .

1. 27.


   NOTE: LH shown, RH similar.

   1. 1.

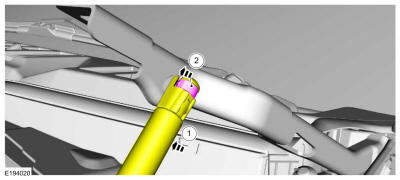

      Position the hood shock and attach.

   1. 2.

      Install the clip.

Courtesy of FORD MOTOR COMPANY

1. 28.

   Position the hood and install the nuts.

   Torque

   : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

1. 29.

   Start and check the exhaust system for leaks.
