Engine Front Cover: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

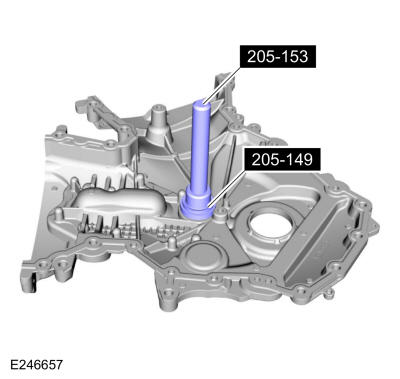

    Using the special tools, install the engine front cover to coolant pipe seal. Use Special Service Tool: 205-149 (T80T-4000-R) Installer, Spindle Bearing., 205-153 (T80T-4000-W) Handle.
GFD39652Courtesy of FORD MOTOR COMPANY

  1. 2.

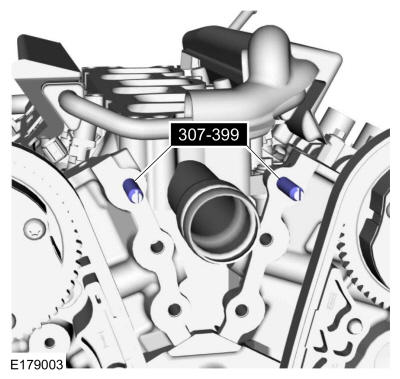

    Install Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
GFD39653Courtesy of FORD MOTOR COMPANY

  1. 3.

      NOTE: Failure to use Motorcraft ® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
      NOTE: The engine front cover and the bolts must be installed within 4 minutes of the initial sealant application. The remainder of the engine front cover bolts must be installed and tightened within 35 minutes of the initial sealant application. If the time limits are exceeded, the sealant must be removed, the sealing area cleaned and sealant reapplied. Failure to follow this procedure can cause future oil leakage.

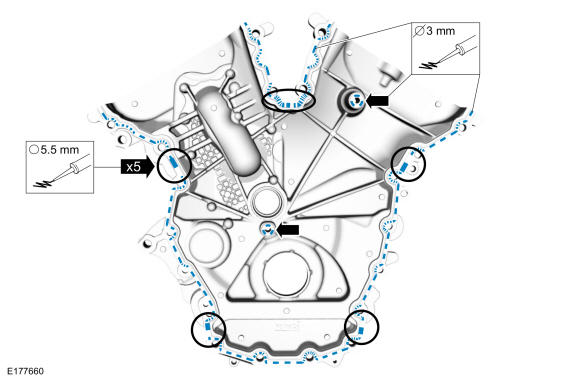

    • Apply a 3.0 mm (0.11 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the engine front cover sealing surfaces including the inner bolt bosses.

      Material

      : Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    • Apply a 5.5 mm (0.21 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the oil pan-to-cylinder block joint and the cylinder head-to-cylinder block joint areas of the engine front cover in places as indicated.

      Material

      : Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

GFD39654Courtesy of FORD MOTOR COMPANY

  1. 4.

    NOTE: Make sure the 2 locating dowel pins are seated correctly in the cylinder block.

    Install the engine front cover and the bolts.

    Torque

    : 27 lb.in (3 Nm)

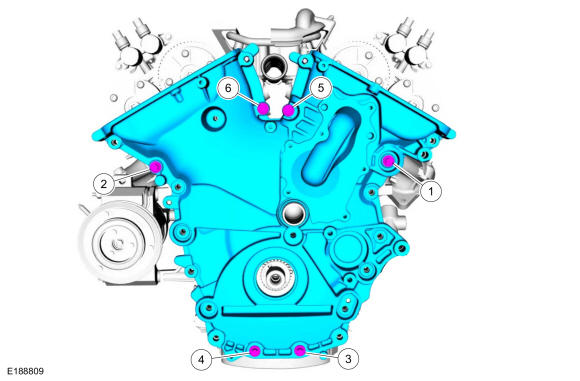

Fig 1: Engine Front Cover Bolts Tightening Sequence
GFD39655Courtesy of FORD MOTOR CO.

  1. 5.

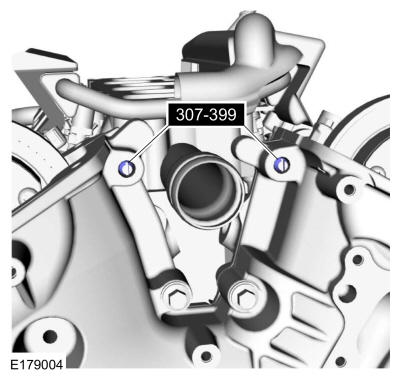

    Remove Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
GFD39656Courtesy of FORD MOTOR COMPANY

  1. 6.

    Install the remaining engine front cover bolts.

    Torque

    : Stage 1: Tighten bolts 1 thru 21 to: 89 lb.in (10 Nm) Stage 2: Tighten bolts 1 thru 20 to: 18 lb.ft (24 Nm) Stage 3: Tighten bolt 21 to: 177 lb.in (20 Nm) Stage 4: Tighten bolt 21 an additional: 90 ° Stage 5: Tighten bolt 22 to: 89 lb.in (10 Nm) Stage 6: Tighten bolt 22 an additional: 45 °

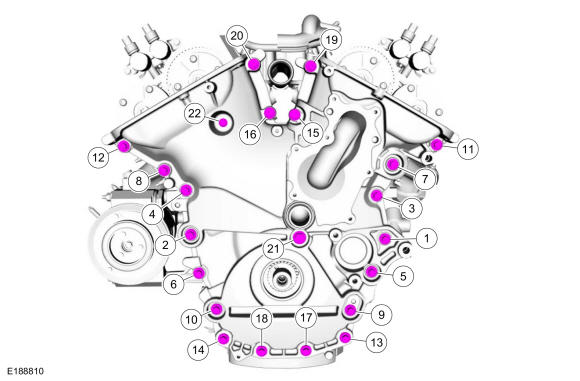

Fig 2: Engine Front Cover Bolts Tightening Sequence
GFD39657Courtesy of FORD MOTOR CO.

  1. 7.

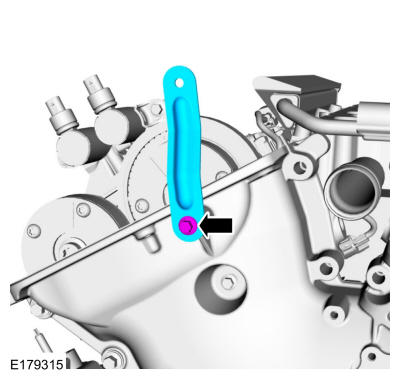

    Install the upper intake manifold support bracket and the bolt finger-tight.
GFD39646Courtesy of FORD MOTOR COMPANY

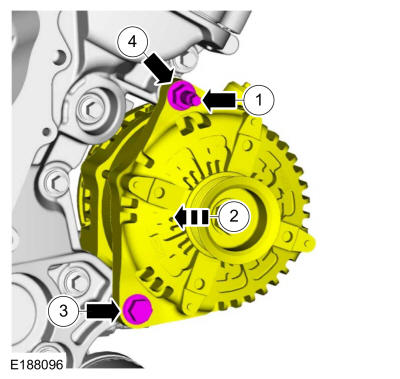

  1. 8.

    1. 1.

      Install the stud bolt.

      Torque

      : 71 lb.in (8 Nm)

    1. 2.

      Install the generator.

    1. 3.

      Install the bolt.

      Torque

      : 35 lb.ft (47 Nm)

    1. 4.

      Install the nut.

      Torque

      : 35 lb.ft (47 Nm)

GFD39658Courtesy of FORD MOTOR COMPANY

  1. 9.

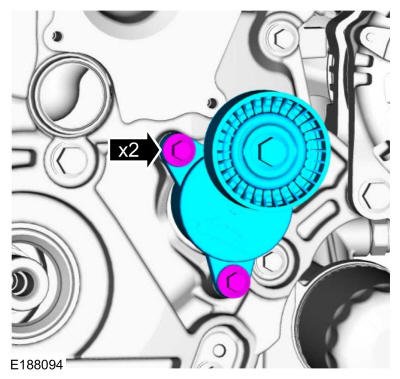

    Install the accessory drive belt tensioner and the bolts.

    Torque

    : 97 lb.in (11 Nm)

GFD39644Courtesy of FORD MOTOR COMPANY

  1. 10.

    Install the following items:

  1. 11.

    Connect the generator wiring to the engine front cover.
GFD39643Courtesy of FORD MOTOR COMPANY

  1. 12.

    Position the wiring harness and transmission cooler tube bracket and install the nut.

    Torque

    : 106 lb.in (12 Nm)

GFD39642Courtesy of FORD MOTOR COMPANY

  1. 13.

    Install the wiring harness retainer in the oil pan.
GFD39641Courtesy of FORD MOTOR COMPANY

  1. 14.

    NOTE: Do not lubricate the engine oil filter seal.

    Install a new engine oil filter.

    Torque

    : Stage 1: 44 lb.in (5 Nm) Stage 2: 180 °

GFD39617Courtesy of FORD MOTOR COMPANY

  1. 15.

    • If equipped, install the transmission housing cover and attach the retainer.
    • Install the bolts.

      Torque

      : 71 lb.in (8 Nm)

GFD38415Courtesy of FORD MOTOR COMPANY

  1. 16.

    Install the following items:

  1. 17.

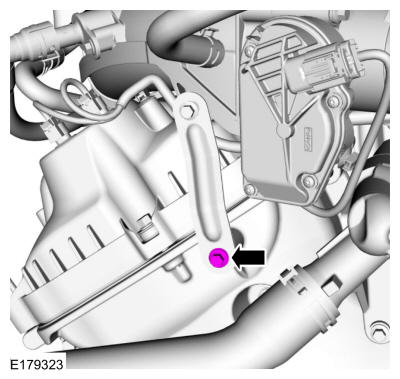

    Tighten the bolt for the upper intake manifold support bracket.

    Torque

    : 89 lb.in (10 Nm)

GFD39659Courtesy of FORD MOTOR COMPANY

  1. 18.

    Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

  1. 19.

    Fill the engine with clean engine oil. Refer to: Specifications .

    Material

    : Motorcraft ® SAE 5W-20 Premium Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

GFD39618Courtesy of FORD MOTOR COMPANY

  1. 20.

    Fill the cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING

  1. 21.

    After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
