Cylinder Head RH: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed. Refer to Variable Camshaft Timing (VCT) Unit .

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 2.

    Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE .

  1. 3.

    Disconnect the battery ground. Refer to: Battery Disconnect and Connect .

  1. 4.

    Drain the cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .

  1. 5.

    • If equipped, remove the bolts.
    • Release the retainer and remove the transmission housing cover.
GFD38415Courtesy of FORD MOTOR COMPANY

  1. 6.

    Disconnect the RH HO2S and catalyst monitor sensor electrical connectors and detach wiring harness from the retainer.
GFD39619Courtesy of FORD MOTOR COMPANY

  1. 7.

    NOTE: Clean the catalytic converter-to-exhaust manifold sealing surfaces.

    Remove and discard the RH catalytic converter flange nuts.

GFD39620Courtesy of FORD MOTOR COMPANY

  1. 8.

    Remove the RH camshafts. Refer to: Camshafts .

  1. 9.

    Remove the lower intake manifold. Refer to: Lower Intake Manifold .

  1. 10.

    Disconnect the RH CMP sensor electrical connectors.
GFD39621Courtesy of FORD MOTOR COMPANY

  1. 11.

    Remove the bolts and the RH CMP sensors.
GFD39622Courtesy of FORD MOTOR COMPANY

  1. 12.

    NOTE: Do not use power tools to remove the bolt or damage to the upper RH timing chain guide may occur.

    Remove the bolt and the RH timing chain guide.

GFD39623Courtesy of FORD MOTOR COMPANY

  1. 13.

    Disconnect the CHT sensor electrical connector.
GFD39624Courtesy of FORD MOTOR COMPANY

  1. 14.

    NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.

    Remove the valve tappets.

GFD39625Courtesy of FORD MOTOR COMPANY

  1. 15.

    Inspect and install new components as necessary.
GFD39605Courtesy of FORD MOTOR COMPANY

  1. 16.

    Remove and discard the M6 bolt.
GFD39626Courtesy of FORD MOTOR COMPANY

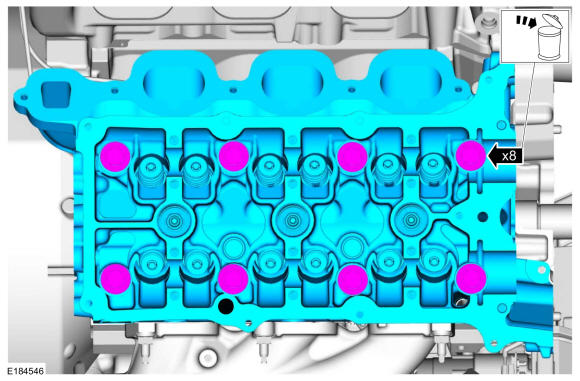

  1. 17.

      NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
      NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface
      NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.
    • Remove and discard the bolts.
    • Remove the cylinder head.
GFD39627Courtesy of FORD MOTOR COMPANY

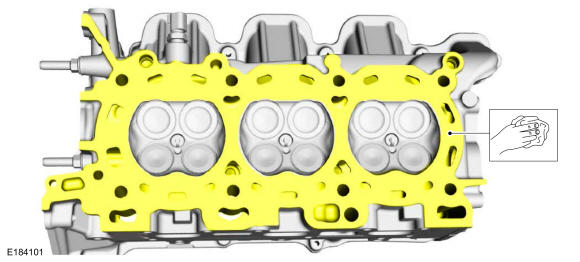

  1. 18.

    NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

    Make sure that the mating faces of the cylinder head are clean and free of foreign material.

GFD39628Courtesy of FORD MOTOR COMPANY

  1. 19.

    Remove and discard the cylinder head gasket.
GFD39629Courtesy of FORD MOTOR COMPANY

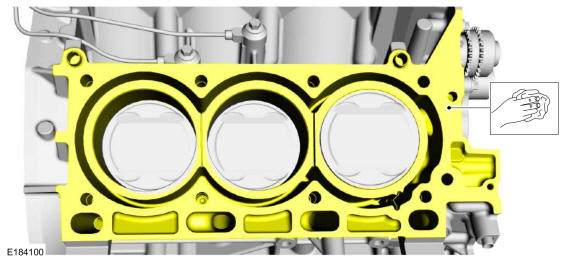

  1. 20.

    NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
    NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

    Make sure that the mating faces of the engine block are clean and free of foreign material.

GFD39630Courtesy of FORD MOTOR COMPANY

  1. 21.

    Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion. Refer to: Cylinder Head Distortion . Refer to: Cylinder Block Distortion .
