Crankshaft Rear Seal: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

1.

Remove the flexplate. Refer to: Flexplate .

2.

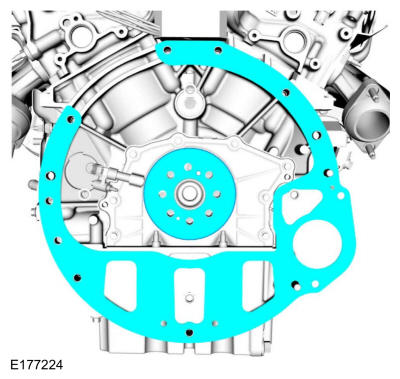

Remove the crankshaft sensor ring and the engine-to-transmission spacer plate.

GFD39587

Courtesy of FORD MOTOR COMPANY

3.

Disconnect the CKP sensor electrical connector.

GFD39588

Courtesy of FORD MOTOR COMPANY

4.

Remove the bolt and the CKP sensor.

GFD39589

Courtesy of FORD MOTOR COMPANY

5.

Remove oil pan-to-crankshaft rear seal bolts.

GFD39590

Courtesy of FORD MOTOR COMPANY

6.

Remove the bolts and the crankshaft rear seal and discard the seal.

GFD39591

Courtesy of FORD MOTOR COMPANY

7.

NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc ® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

Material

: Motorcraft ® Silicone Gasket Remover / ZC-30-A

Material

: Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Material

: Motorcraft ® Metal Surface Prep / ZC-31-B

GFD39592

Courtesy of FORD MOTOR COMPANY
