Section 676 (Engine - 3.5L DURATEC (209KW/284PS)): Disassembly: Engine

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-142 (T80T-4000-J) Installer, Differential Bearing Cone
Courtesy of FORD MOTOR COMPANY	205-150 (T80T-4000-S) Installer, Spindle Bearing
Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle
Courtesy of FORD MOTOR COMPANY	303-1245 Engine Lift Eye TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1247 VCT Spark Plug Tube Seal Remover and Installer TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1248 Camshaft holding tools TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1530 Tool, Chain Tensioner Hold Down TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW
Courtesy of FORD MOTOR COMPANY	303-409 (T92C-6700-CH) Remover, Crankshaft Seal TKIT-1992-FH/FMH/FLMH TKIT-1993-LMH/MH
Floor Crane
Three Leg Puller
Mounting Stand
Plastic Scraper
Hose Clamp Remover/Installer

Materials

Name	Specification
Motorcraft ® Silicone Gasket Remover ZC-30-A	-
Motorcraft ® Metal Surface Prep ZC-31-B	-
Metal Brake Parts Cleaner PM-4-A, PM-4-B	-

1. 1.

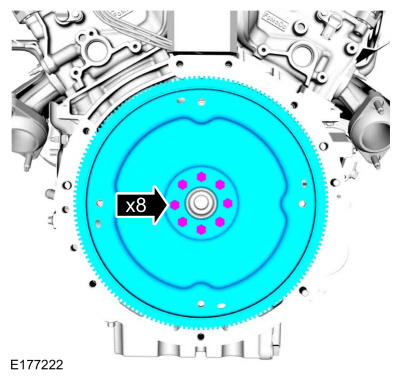

   Remove the bolts and the flexplate.

Courtesy of FORD MOTOR COMPANY

1. 2.

   Remove the crankshaft sensor ring and the engine-to-transmission spacer plate.

Courtesy of FORD MOTOR COMPANY

1. 3.

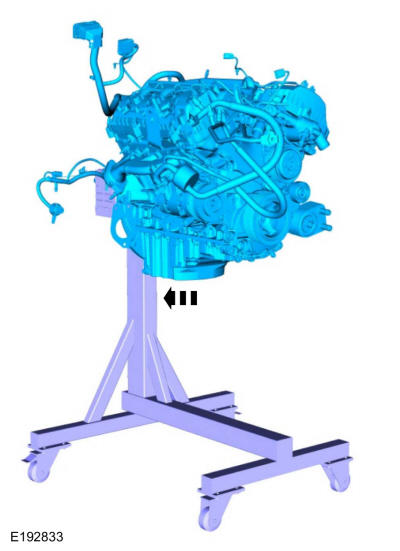

   NOTE: Install the engine stand bolts into the cylinder block only. Do not install the bolts into the oil pan.

   Mount the engine to the mounting stand. Use the General Equipment: Mounting Stand

Courtesy of FORD MOTOR COMPANY

1. 4.

   Remove the floor crane and chain. Use the General Equipment: Floor Crane

Courtesy of FORD MOTOR COMPANY

1. 5.

   Remove the bolts and the A/C compressor.

Courtesy of FORD MOTOR COMPANY

1. 6.

   Remove the bolts and the RH lift eye.

Courtesy of FORD MOTOR COMPANY

1. 7.

   Remove Special Service Tool: 303-1245 Engine Lift Eye.

Courtesy of FORD MOTOR COMPANY

1. 8.

   Remove the bolt and the RH engine mount.

Courtesy of FORD MOTOR COMPANY

1. 9.

   Remove the bolts and the RH engine mount bracket.

Courtesy of FORD MOTOR COMPANY

1. 10.

   Remove the bolts and the LH engine mount bracket.

Courtesy of FORD MOTOR COMPANY

1. 11.

   Remove the degas bottle hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

1. 12.


   • Remove the crankshaft pulley bolt and washer.
   • Discard the bolt.

Courtesy of FORD MOTOR COMPANY

1. 13.

   Using a three leg puller, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller

Courtesy of FORD MOTOR COMPANY

1. 14.

   Using the special tool, remove and discard the crankshaft front seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

Courtesy of FORD MOTOR COMPANY

1. 15.

   Remove the bolts, coolant pump pulley and the accessory drive belt tensioner.

Courtesy of FORD MOTOR COMPANY

1. 16.

   Remove the bolt and the upper intake manifold support bracket.

Courtesy of FORD MOTOR COMPANY

1. 17.

   Remove the nut, bolt and the heat shield.

Courtesy of FORD MOTOR COMPANY

1. 18.

   Remove the wiring harness retainer stud bolt.

Courtesy of FORD MOTOR COMPANY

1. 19.

   Remove the wiring harness grommet.

Courtesy of FORD MOTOR COMPANY

1. 20.


   • Disconnect the CKP sensor electrical connector.
   • Remove the bolt and the CKP sensor.

Courtesy of FORD MOTOR COMPANY

1. 21.

   Remove the bolt and the ground strap.

Courtesy of FORD MOTOR COMPANY

1. 22.


   • Disconnect the KS sensor electrical connector.
   • Disconnect the CMP sensor electrical connectors.
   • Detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

1. 23.


   • Disconnect the VCT oil control solenoids electrical connectors.
   • Disconnect the ignition coil-on-plug electrical connectors.
   • Disconnect the oil pressure switch electrical connector.
   • Detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

1. 24.

   Remove the fuel rail insulators.

Courtesy of FORD MOTOR COMPANY

1. 25.


   • Disconnect the VCT oil control solenoids electrical connectors.
   • Disconnect the ignition coil-on-plug electrical connectors.
   • Disconnect the CHT sensor electrical connector.
   • Detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

1. 26.

   Disconnect the fuel injector electrical connectors and remove the engine wiring harness.

Courtesy of FORD MOTOR COMPANY

1. 27.


   NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
   NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
   • Remove the bolts and the ignition coil-on-plugs.
   • Remove the oil level indicator.

Courtesy of FORD MOTOR COMPANY

1. 28.

   Inspect the coil seals for rips, nicks or tears and replace if necessary.

Courtesy of FORD MOTOR COMPANY

1. 29.


   NOTE: While removing the valve cover do not apply excessive force to the VCT oil control solenoid or damage may occur.
   NOTE: If the VCT oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

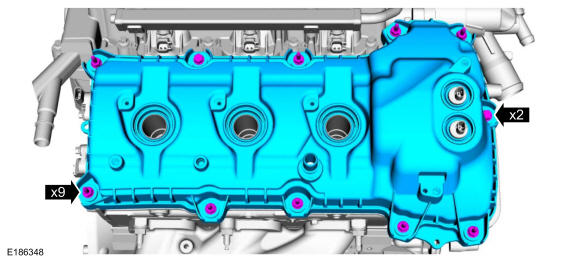

   Loosen the bolts and the LH valve cover.

Courtesy of FORD MOTOR COMPANY

1. 30.

   Discard the gasket.

Courtesy of FORD MOTOR COMPANY

1. 31.


   NOTE: Inspect the VCT solenoid seals. Remove any damaged seals.

   Using the special tools, remove and discard the seal(s). Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone., 205-153 (T80T-4000-W) Handle.

Courtesy of FORD MOTOR COMPANY

1. 32.


   NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

   Using the special tools, remove and discard the seal(s). Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

Courtesy of FORD MOTOR COMPANY

1. 33.

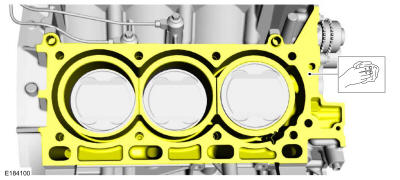

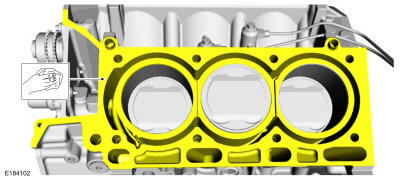

   Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

   Material

   : Motorcraft ® Silicone Gasket Remover / ZC-30-A

   Material

   : Metal Brake Parts Cleaner / PM-4-A, PM-4-B

   Material

   : Motorcraft ® Metal Surface Prep / ZC-31-B

Courtesy of FORD MOTOR COMPANY

1. 34.


   NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
   NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

   Remove the bolts and the ignition coil-on-plugs.

Courtesy of FORD MOTOR COMPANY

1. 35.

   Inspect the coil seals for rips, nicks or tears and replace if necessary.

Courtesy of FORD MOTOR COMPANY

1. 36.


   NOTE: While removing the valve cover do not apply excessive force to the VCT oil control solenoid or damage may occur.
   NOTE: If the VCT oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

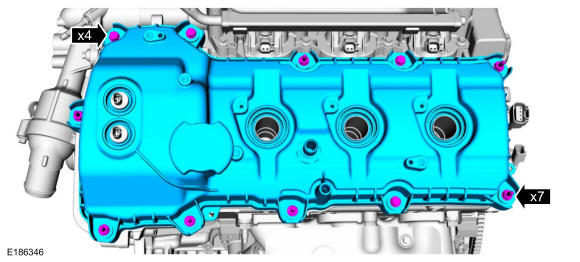

   Loosen the bolts and remove the RH valve cover.

Courtesy of FORD MOTOR COMPANY

1. 37.

   Discard the gasket.

Courtesy of FORD MOTOR COMPANY

1. 38.


   NOTE: Inspect the VCT solenoid seals. Remove any damaged seals.

   Using the special tools, remove and discard the seal(s). Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone., 205-153 (T80T-4000-W) Handle.

Courtesy of FORD MOTOR COMPANY

1. 39.


   NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

   Using the special tools, remove and discard the seal(s). Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

Courtesy of FORD MOTOR COMPANY

1. 40.

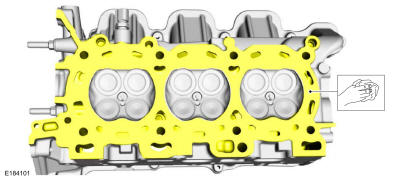

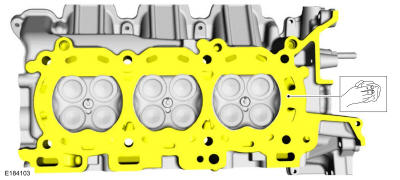

   Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

   Material

   : Motorcraft ® Silicone Gasket Remover / ZC-30-A

   Material

   : Metal Brake Parts Cleaner / PM-4-A, PM-4-B

   Material

   : Motorcraft ® Metal Surface Prep / ZC-31-B

Courtesy of FORD MOTOR COMPANY

1. 41.


   • Remove the nuts and the LH exhaust manifold.
   • Discard the nuts.

Courtesy of FORD MOTOR COMPANY

1. 42.

   Clean and inspect the catalytic converter flange. Refer to: Exhaust Manifold Cleaning and Inspection .

1. 43.

   Remove and discard the LH exhaust manifold gasket and studs.

Courtesy of FORD MOTOR COMPANY

1. 44.

   Remove the bolt and discard the oil cooler.

Courtesy of FORD MOTOR COMPANY

1. 45.

   Remove the bolts and the oil filter adapter.

Courtesy of FORD MOTOR COMPANY

1. 46.

   Inspect and replace if necessary.

Courtesy of FORD MOTOR COMPANY

1. 47.

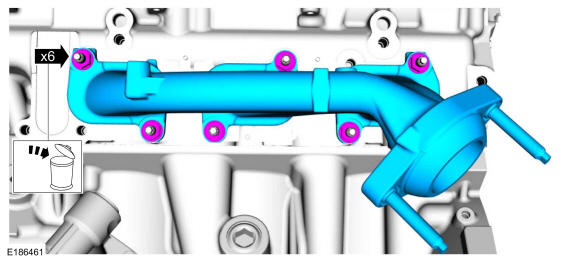

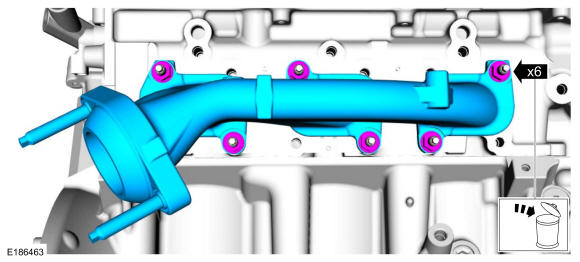

   • Remove the nuts and the RH exhaust manifold.
   • Discard the nuts.

Courtesy of FORD MOTOR COMPANY

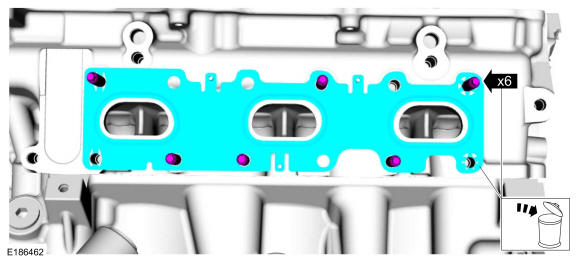

1. 48.

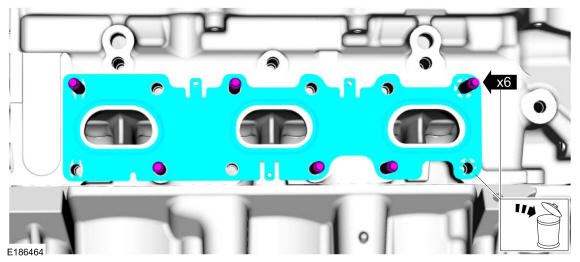

   Remove and discard the RH exhaust manifold gasket and studs.

Courtesy of FORD MOTOR COMPANY

1. 49.

   Clean and inspect the catalytic converter flange. Refer to: Exhaust Manifold Cleaning and Inspection .

1. 50.

   Remove the LH block coolant drain plug and allow coolant to drain from the cylinder block.

Courtesy of FORD MOTOR COMPANY

1. 51.

   Remove the RH block coolant drain plug and allow coolant to drain from the cylinder block.

Courtesy of FORD MOTOR COMPANY

1. 52.

   Remove the bolts and the CMP sensors.

Courtesy of FORD MOTOR COMPANY

1. 53.

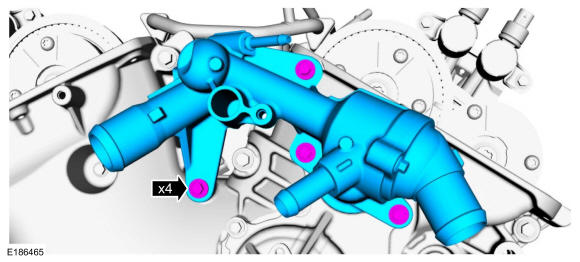

   Remove the bolts and the thermostat housing.

Courtesy of FORD MOTOR COMPANY

1. 54.

   Inspect and replace if necessary.

Courtesy of FORD MOTOR COMPANY

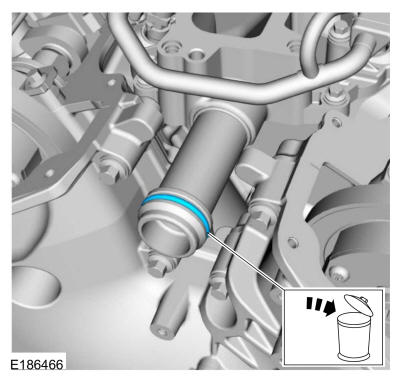

1. 55.

   Remove and discard the thermostat housing O-ring seal.

Courtesy of FORD MOTOR COMPANY

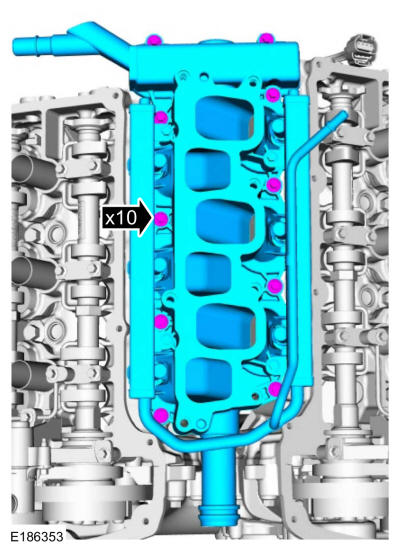

1. 56.

   Remove the bolts and the lower intake manifold.

Courtesy of FORD MOTOR COMPANY

1. 57.

   Remove and discard the lower intake manifold gaskets.

Courtesy of FORD MOTOR COMPANY

1. 58.

   Remove the foam insulator.

Courtesy of FORD MOTOR COMPANY

1. 59.

   Disconnect the CHT sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

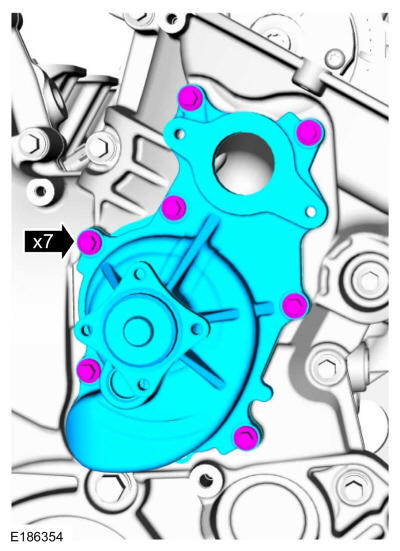

1. 60.

   Remove the bolts and the coolant pump.

Courtesy of FORD MOTOR COMPANY

1. 61.

   Remove and discard the coolant pump gasket and O-ring seal.

Courtesy of FORD MOTOR COMPANY

1. 62.

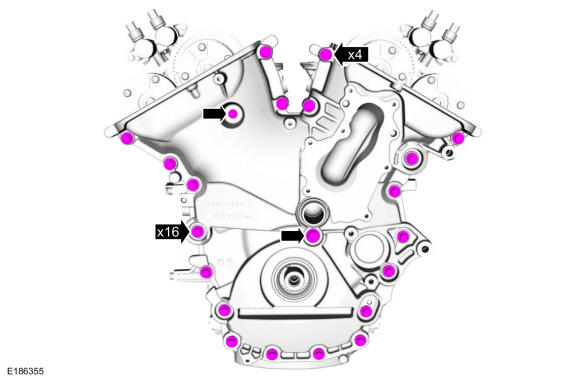

   Remove the engine front cover bolts.

Courtesy of FORD MOTOR COMPANY

1. 63.

   Using a pry tool, locate the pry pads shown and pry the engine front cover loose and remove.

Courtesy of FORD MOTOR COMPANY

1. 64.

   Using the special tools, remove the engine front cover to coolant pipe seal. Use Special Service Tool: 205-150 (T80T-4000-S) Installer, Spindle Bearing., 205-153 (T80T-4000-W) Handle.

Courtesy of FORD MOTOR COMPANY

1. 65.


   NOTE: Only use a 3M™ Roloc ® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 RPM, to clean the engine front cover. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean front cover.
   • Make sure that the mating faces of the front cover are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

     Material

     : Motorcraft ® Silicone Gasket Remover / ZC-30-A

     Material

     : Metal Brake Parts Cleaner / PM-4-A, PM-4-B

     Material

     : Motorcraft ® Metal Surface Prep / ZC-31-B

   • Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process.

Courtesy of FORD MOTOR COMPANY

1. 66.


   NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
   NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc ® Bristle Disk (2-in white part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that will cause premature engine failure. Remove all traces of the gasket.

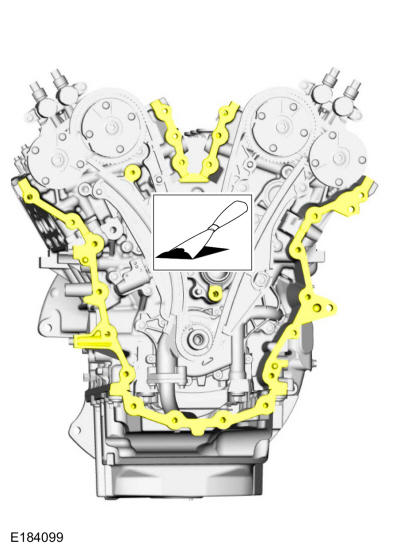

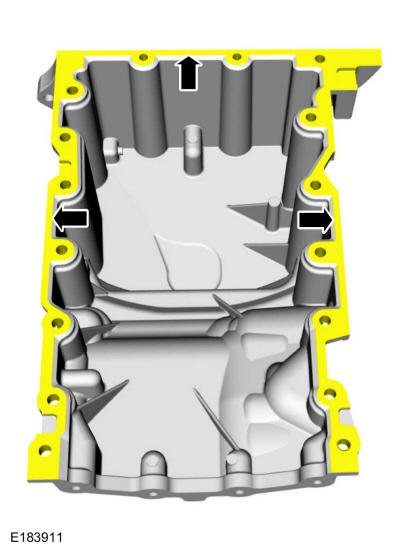

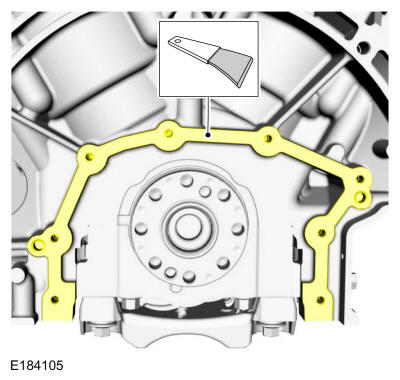

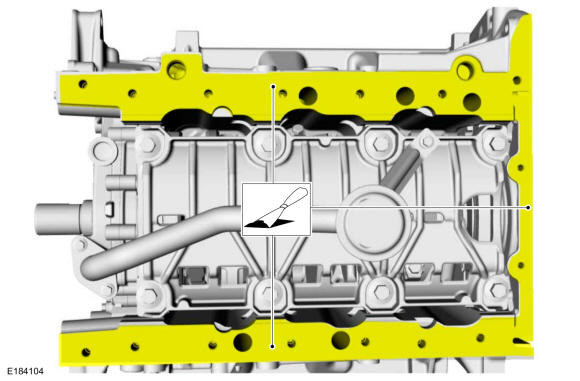

   Make sure that the mating faces of the engine block and oil pan are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

   Material

   : Motorcraft ® Silicone Gasket Remover / ZC-30-A

   Material

   : Metal Brake Parts Cleaner / PM-4-A, PM-4-B

   Material

   : Motorcraft ® Metal Surface Prep / ZC-31-B

Courtesy of FORD MOTOR COMPANY

1. 67.


   NOTE: Rotate the crankshaft in a clockwise direction only.

   Rotate the crankshaft clockwise and align the timing marks on the intake VCT units as shown.

Courtesy of FORD MOTOR COMPANY

1. 68.

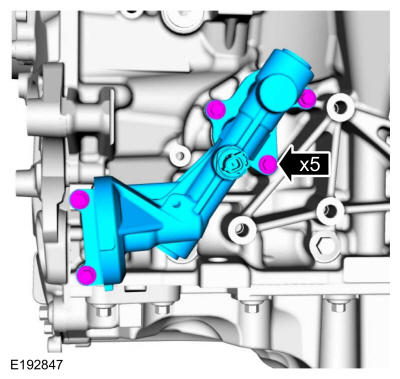

   Remove the bolts and the LH oil tube.

Courtesy of FORD MOTOR COMPANY

1. 69.


   NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

   Install Special Service Tool: 303-1248 Camshaft holding tools.

Courtesy of FORD MOTOR COMPANY

1. 70.

   Remove the bolts and the RH oil tube.

Courtesy of FORD MOTOR COMPANY

1. 71.


   NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

   Install Special Service Tool: 303-1248 Camshaft holding tools.

Courtesy of FORD MOTOR COMPANY

1. 72.

   Mark the timing chain link that aligns with the timing mark on the LH intake VCT unit as shown.

Courtesy of FORD MOTOR COMPANY

1. 73.

   Mark the timing chain link that aligns with the timing mark on the RH intake VCT unit as shown.

Courtesy of FORD MOTOR COMPANY

1. 74.


   NOTE: The crankshaft sprocket timing mark should be between the colored links.

   Mark the timing chain links that aligns with the timing mark on the crankshaft sprocket as shown.

Courtesy of FORD MOTOR COMPANY

1. 75.

   Remove the bolts and the timing chain tensioner.

Courtesy of FORD MOTOR COMPANY

1. 76.

   Remove the timing chain tensioner arm.

Courtesy of FORD MOTOR COMPANY

1. 77.

   Remove the bolts and the lower LH timing chain guide.

Courtesy of FORD MOTOR COMPANY

1. 78.


   NOTE: Removal of the VCT oil control solenoid will aid in the removal of the timing chain.
   NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoids.
   NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

   Remove the bolts and the VCT oil control solenoids.

Courtesy of FORD MOTOR COMPANY

1. 79.

   Remove the timing chain.

Courtesy of FORD MOTOR COMPANY

1. 80.

   Remove the crankshaft sprocket.

Courtesy of FORD MOTOR COMPANY

1. 81.


   NOTE: Do not use power tools to remove the bolt or damage to the LH primary timing chain guide may occur.

   Remove the bolt and the upper LH timing chain guide.

Courtesy of FORD MOTOR COMPANY

1. 82.


   NOTE: The VCT oil control solenoids are removed for clarity.

   Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

Courtesy of FORD MOTOR COMPANY

1. 83.

   Remove and discard the LH VCT unit bolts.

Courtesy of FORD MOTOR COMPANY

1. 84.

   Remove the LH VCT units and secondary timing chain.

Courtesy of FORD MOTOR COMPANY

1. 85.

   Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

Courtesy of FORD MOTOR COMPANY

1. 86.

   Remove Special Service Tool: 303-1248 Camshaft holding tools.

Courtesy of FORD MOTOR COMPANY

1. 87.


   NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.
   NOTE: Mark the exhaust and intake camshafts for installation into their original locations.

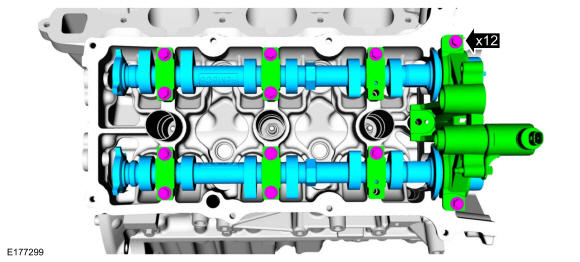

   Remove the bolts, camshaft caps and the camshafts.

Courtesy of FORD MOTOR COMPANY

1. 88.


   NOTE: The VCT oil control solenoids are removed for clarity.

   Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

Courtesy of FORD MOTOR COMPANY

1. 89.

   Remove and discard the RH VCT unit bolts.

Courtesy of FORD MOTOR COMPANY

1. 90.

   Remove the RH VCT units and secondary timing chain.

Courtesy of FORD MOTOR COMPANY

1. 91.

   Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

Courtesy of FORD MOTOR COMPANY

1. 92.

   Remove Special Service Tool: 303-1248 Camshaft holding tools.

Courtesy of FORD MOTOR COMPANY

1. 93.


   NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.
   NOTE: Mark the exhaust and intake camshafts for installation into their original locations.

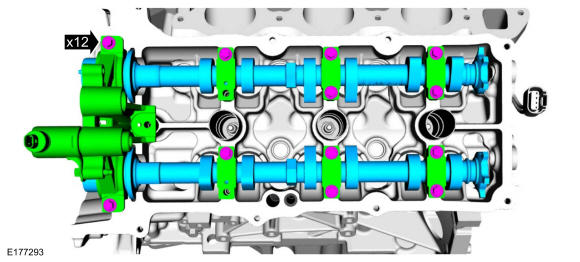

   Remove the bolts, camshaft caps and the camshafts.

Courtesy of FORD MOTOR COMPANY

1. 94.


   NOTE: Do not use power tools to remove the bolt or damage to the RH primary timing chain guide may occur.

   Remove the bolt and the RH timing chain guide.

Courtesy of FORD MOTOR COMPANY

1. 95.


   NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.
   NOTE: RH shown, LH similar.

   Remove the valve tappets from the cylinder heads.

Courtesy of FORD MOTOR COMPANY

1. 96.

   Inspect and install new components as necessary.

Courtesy of FORD MOTOR COMPANY

1. 97.

   Remove and discard the M6 bolt.

Courtesy of FORD MOTOR COMPANY

1. 98.


   NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
   NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface
   NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.

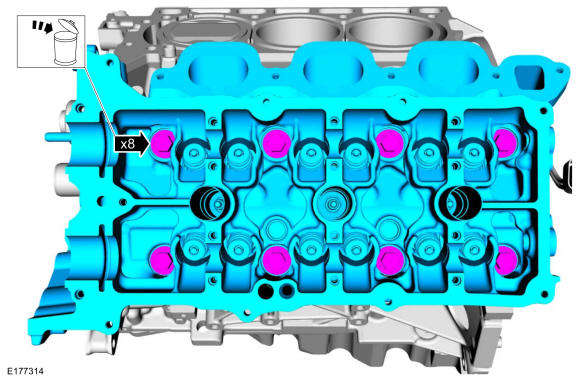

   • Remove and discard the bolts from the cylinder head.
   • Remove the cylinder head.

Courtesy of FORD MOTOR COMPANY

1. 99.


   NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

   Make sure that the mating faces of the cylinder head are clean and free of foreign material.

Courtesy of FORD MOTOR COMPANY

1. 100.

   Remove and discard the cylinder head gasket.

Courtesy of FORD MOTOR COMPANY

1. 101.


   NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
   NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

   Make sure that the mating faces of the engine block are clean and free of foreign material.

Courtesy of FORD MOTOR COMPANY

1. 102.

   Remove and discard the M6 bolt.

Courtesy of FORD MOTOR COMPANY

1. 103.


   NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
   NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface
   NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.

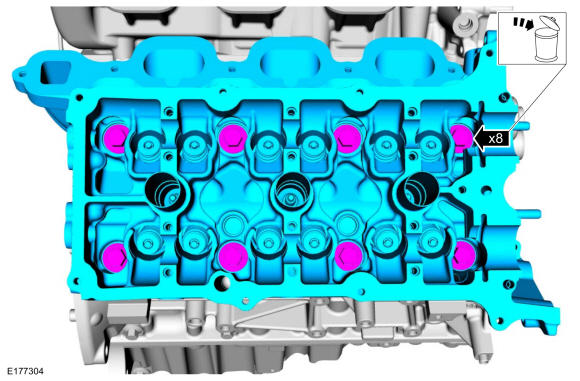

   • Remove and discard the bolts from the cylinder head.
   • Remove the cylinder head.

Courtesy of FORD MOTOR COMPANY

1. 104.


   NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

   Make sure that the mating faces of the cylinder head are clean and free of foreign material.

Courtesy of FORD MOTOR COMPANY

1. 105.

   Remove and discard the cylinder head gasket.

Courtesy of FORD MOTOR COMPANY

1. 106.


   NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
   NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

   Make sure that the mating faces of the engine block are clean and free of foreign material.

Courtesy of FORD MOTOR COMPANY

1. 107.

   Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion. Refer to: Cylinder Head Distortion .

1. 108.

   Remove the bolts and the KS.

Courtesy of FORD MOTOR COMPANY

1. 109.

   Remove the bolts and the channel cover plate.

Courtesy of FORD MOTOR COMPANY

1. 110.

   Inspect and replace if necessary.

Courtesy of FORD MOTOR COMPANY

1. 111.

   Remove the oil pan bolts.

Courtesy of FORD MOTOR COMPANY

1. 112.

   Using a pry tool, locate the pry pads at the LH and RH side of the oil pan and pry the oil pan loose and remove.

Courtesy of FORD MOTOR COMPANY

1. 113.


   NOTE: Only use a 3M™ Roloc ® Bristle Disk (2-in white, part number 07528) to clean the oil pan and engine front cover. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean. These tools cause scratches and gouges that make leak paths.
   • Make sure that the mating faces of the oil pan are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

     Material

     : Motorcraft ® Silicone Gasket Remover / ZC-30-A

     Material

     : Metal Brake Parts Cleaner / PM-4-A, PM-4-B

     Material

     : Motorcraft ® Metal Surface Prep / ZC-31-B

   • Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.

Courtesy of FORD MOTOR COMPANY

1. 114.


   NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc ® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

   Make sure that the mating faces of the engine block are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

   Material

   : Motorcraft ® Silicone Gasket Remover / ZC-30-A

   Material

   : Metal Brake Parts Cleaner / PM-4-A, PM-4-B

   Material

   : Motorcraft ® Metal Surface Prep / ZC-31-B

Courtesy of FORD MOTOR COMPANY

1. 115.

   Remove the bolts and the oil pump screen and pickup tube.

Courtesy of FORD MOTOR COMPANY

1. 116.

   Remove and discard the oil pump screen and pickup tube O-ring seal.

Courtesy of FORD MOTOR COMPANY

1. 117.

   Remove the bolts and the oil pump.

Courtesy of FORD MOTOR COMPANY

1. 118.


   • Remove the bolts and the crankshaft rear seal.
   • Discard the crankshaft rear seal.

Courtesy of FORD MOTOR COMPANY

1. 119.


   NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc ® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

   Make sure that the mating faces is clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

   Material

   : Motorcraft ® Silicone Gasket Remover / ZC-30-A

   Material

   : Metal Brake Parts Cleaner / PM-4-A, PM-4-B

   Material

   : Motorcraft ® Metal Surface Prep / ZC-31-B

Courtesy of FORD MOTOR COMPANY

1. 120.

   Inspect and clean the specified component with a abrasive pad.

Courtesy of FORD MOTOR COMPANY

1. 121.


   • Remove and discard the bolts in the sequence shown.
   • Remove the main bearing cap support brace.

1. 122.


   NOTE: The connecting rod cap bolts are a torque-to-yield design. The original connecting rod cap bolts will be used when measuring the connecting rod large end bore during assembly. The connecting rod cap bolts will be discarded after measurement.
   NOTE: Clearly mark the position and orientation of the connecting rods, connecting rod caps and connecting rod bearings for reassembly.

   Remove the connecting rod cap bolts and caps.

Courtesy of FORD MOTOR COMPANY

1. 123.


   NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod while removing the pistons.

   Remove the piston/rod assembly from the engine block.

Courtesy of FORD MOTOR COMPANY

1. 124.

   Inspect the pistons. Refer to: Piston Inspection .

1. 125.


   NOTE: Clearly mark the position and orientation of the main bearing caps for reassembly.

   Remove and discard the main bearing caps bolts in the sequence shown.

1. 126.


   NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.
   NOTE: Note the position of the thrust washer on the outside of the No. 4 rear main bearing cap.

   Remove the main bearing caps.

Courtesy of FORD MOTOR COMPANY

1. 127.

   Remove the lower crankshaft thrust washer from the back side of the No. 4 rear main bearing cap.

Courtesy of FORD MOTOR COMPANY

1. 128.


   NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.

   Remove the crankshaft main bearings from the main bearing caps.

Courtesy of FORD MOTOR COMPANY

1. 129.


   NOTE: Note the position of the 2 thrust washers on the inside and outside of the rear main bearing bulkhead.

   Remove the crankshaft.

Courtesy of FORD MOTOR COMPANY

1. 130.

   Remove the crankshaft thrust bearings from the rear main bearing bulkhead.

Courtesy of FORD MOTOR COMPANY

1. 131.


   NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.

   Remove the crankshaft main bearings from the cylinder block.

Courtesy of FORD MOTOR COMPANY

1. 132.

   Using a hex bit, remove the piston oil cool valves.

Courtesy of FORD MOTOR COMPANY

1. 133.

   Inspect the cylinder block distortion. Refer to: Cylinder Block Distortion .
