Cylinder Head: Disassembly

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

LH cylinder head

1.

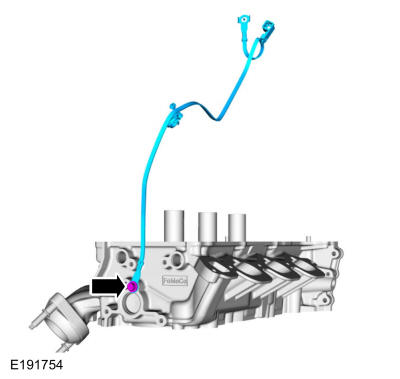

Remove the bolt and ground strap.

Courtesy of FORD MOTOR COMPANY

2.

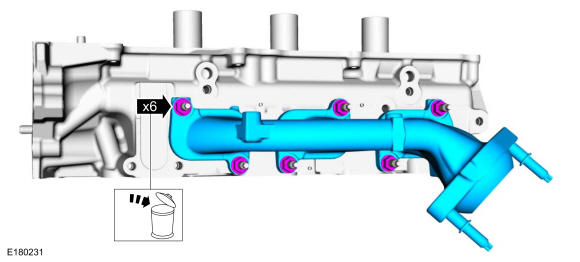

- Remove the nuts and the exhaust manifold.
- Discard the nuts.
- Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .

Courtesy of FORD MOTOR COMPANY

3.

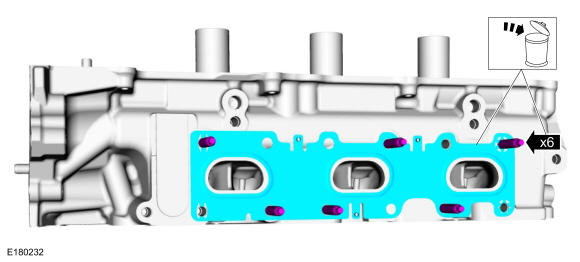

Remove and discard the studs and the exhaust manifold gasket.

Courtesy of FORD MOTOR COMPANY

4.

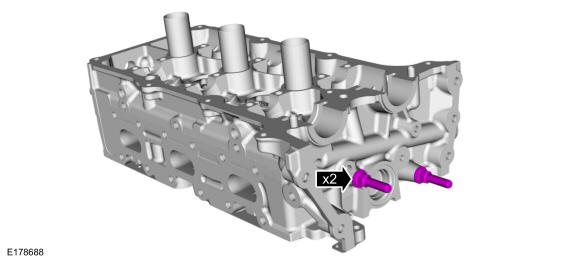

Remove the timing chain guide pin.

Courtesy of FORD MOTOR COMPANY

RH cylinder head

5.

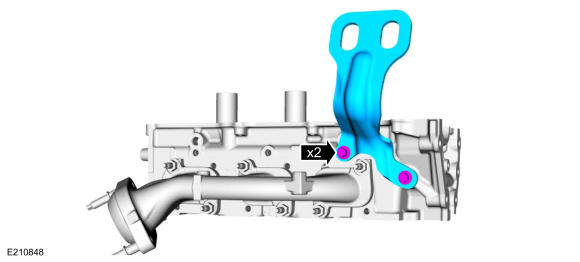

Remove the bolts and the lift eye.

Courtesy of FORD MOTOR COMPANY

6.

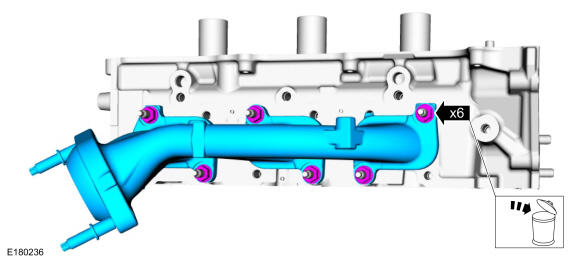

- Remove the nuts and the exhaust manifold.
- Discard the nuts.
- Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .

Courtesy of FORD MOTOR COMPANY

7.

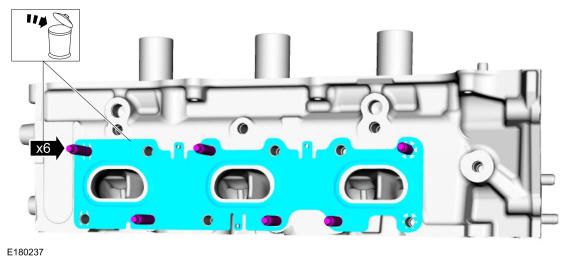

Remove and discard the studs and the exhaust manifold gasket.

Courtesy of FORD MOTOR COMPANY

8.

Remove the timing chain tensioner arm and timing chain guide pins.

Courtesy of FORD MOTOR COMPANY

9.

Remove and discard the CHT sensor.

Courtesy of FORD MOTOR COMPANY

All cylinder heads

10.

Remove the spark plugs. Refer to: SPARK PLUGS .

11.

NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.

Using the special tools, remove the valve collet, valve spring retainer and the valve spring. Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor., 303-350 (T89P-6565-A) Compressor, Valve Spring., 303-1249 Valve Spring Compressor.

Courtesy of FORD MOTOR COMPANY

12.

Remove the valve stem seal.

Courtesy of FORD MOTOR COMPANY

13.

Remove the valve.

Courtesy of FORD MOTOR COMPANY

14.

Repeat the previous 3 steps for each valve.
