Cylinder Head: Assembly

All cylinder heads

1. 1.

   Install the valve.

Courtesy of FORD MOTOR COMPANY

1. 2.

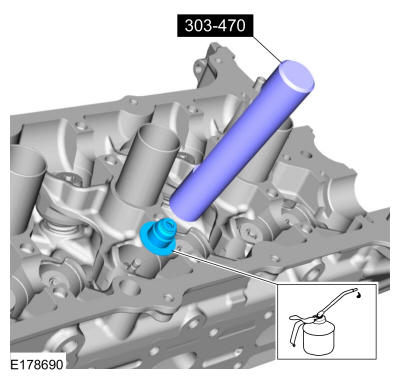

   Lubricate with clean engine oil and using the special tool, install the valve stem seal. Use Special Service Tool: 303-470 (T94P-6510-CH) Installer, Valve Stem Oil Seal.

   Material

   : Motorcraft ® SAE 5W-20 Premium Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY

1. 3.

   Using the special tools, install the valve spring, valve spring retainer and the valve collet. Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor., 303-350 (T89P-6565-A) Compressor, Valve Spring., 303-1249 Valve Spring Compressor.

Courtesy of FORD MOTOR COMPANY

1. 4.

   Repeat the previous 3 steps for each valve.

1. 5.

   Install the spark plugs. Refer to: SPARK PLUGS .

RH cylinder head

1. 6.

   Install the timing chain tensioner arm and timing chain guide pins.

   Torque

   : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

1. 7.

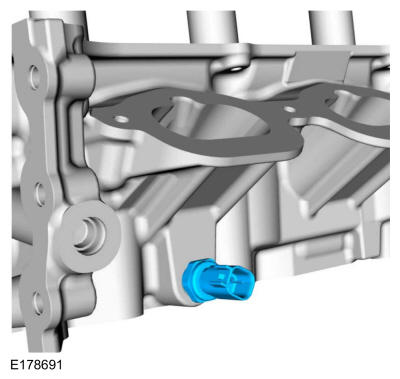

   Install a new CHT sensor.

   Torque

   : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

1. 8.

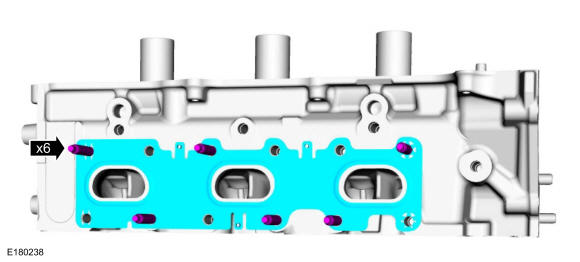

   • Install the new the exhaust manifold studs.

     Torque

     : 106 lb.in (12 Nm)

   • Install a new exhaust manifold gasket.

Courtesy of FORD MOTOR COMPANY

1. 9.

   Install the exhaust manifold and the new nuts.

   Torque

   : Stage 1: 168 lb.in (19 Nm) Stage 2: 18 lb.ft (25 Nm)

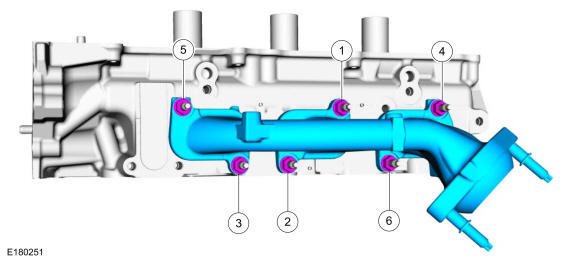

Fig 1: RH Exhaust Manifold Nuts Tightening Sequence

Courtesy of FORD MOTOR CO.

1. 10.

   Install the lift eye and the bolts.

   Torque

   : 25 lb.ft (34 Nm)

Courtesy of FORD MOTOR COMPANY

LH cylinder head

1. 11.

   Install the timing chain guide pin.

   Torque

   : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

1. 12.

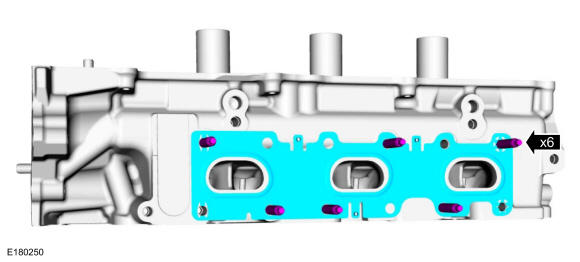

   • Install the new the exhaust manifold studs.

     Torque

     : 106 lb.in (12 Nm)

   • Install a new exhaust manifold gasket.

Courtesy of FORD MOTOR COMPANY

1. 13.

   Install the exhaust manifold and the new nuts.

   Torque

   : Stage 1: 168 lb.in (19 Nm) Stage 2: 18 lb.ft (25 Nm)

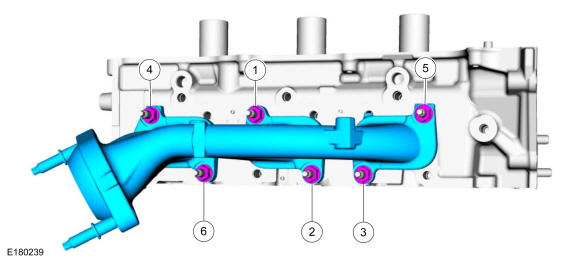

Fig 2: LH Exhaust Manifold Nuts Tightening Sequence

Courtesy of FORD MOTOR CO.

1. 14.

   Install ground strap and the bolt.

   Torque

   : 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
