Section 675 (Engine - 2.7L ECOBOOST (238KW/324PS)): Removal: Engine

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s) / General Equipment

GFD39292Courtesy of FORD MOTOR COMPANY
 303-1246 Engine Spreader Bar TKIT-2006UF-FLM TKIT-2006UF-ROW
GFD39293Courtesy of FORD MOTOR COMPANY
 303-1634 Lift Eyes (2) TKIT-2014D-FL_ROW TKIT-2014D-ROW3
Floor Crane
Oil Drain Equipment
Trolley Jack
Wooden Block

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 2.

    Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE

  1. 3.

    Using a holding device, hold the steering wheel in the straight-ahead position.
GFD38261Courtesy of FORD MOTOR COMPANY

  1. 4.

    Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

  1. 5.

    Remove the front wheels and tires. Refer to: Wheel and Tire .

  1. 6.

    If equipped, remove the bolts and the skid plate.
GFD38662Courtesy of FORD MOTOR COMPANY

  1. 7.

    If equipped, remove the fasteners and the underbody shield.
GFD38663Courtesy of FORD MOTOR COMPANY

  1. 8.

    If equipped, remove the fasteners and the underbody shield.
GFD38415Courtesy of FORD MOTOR COMPANY

  1. 9.

    If equipped, remove the bolts and the skid plate.
GFD39149Courtesy of FORD MOTOR COMPANY

  1. 10.

    Remove the RH and LH fender splash shields. Refer to: Fender Splash Shield .

  1. 11.

    Drain the engine cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .

  1. 12.

    NOTE: RH shown, LH similar.

    Index-mark the hood hinge location to aid in hood installation.

GFD39294Courtesy of FORD MOTOR COMPANY

  1. 13.

    Remove the nuts and the hood.
GFD39295Courtesy of FORD MOTOR COMPANY

  1. 14.

    Remove the following items:

  1. 15.

    Disconnect the A/C pressure transducer electrical connector.
GFD39296Courtesy of FORD MOTOR COMPANY

  1. 16.

    Remove the nut and disconnect the A/C tube.
    • Discard the O-ring seal and gasket.
GFD39297Courtesy of FORD MOTOR COMPANY

  1. 17.

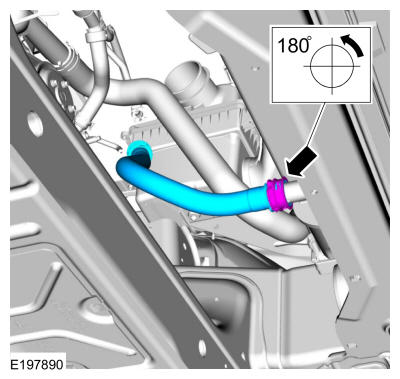

    Rotate the retaining ring counterclockwise 180 degrees and remove the TC bypass tube.
GFD39128Courtesy of FORD MOTOR COMPANY

  1. 18.

    1. 1.

      Remove the nuts.

    1. 2.

      Slide the engine appearance cover out of the retaining bracket.
    • If the engine appearance cover stud bolts are loosened or removed, they must be installed/tightened into the intake manifold.

      Torque

      : 62 lb.in (7 Nm)

GFD39181Courtesy of FORD MOTOR COMPANY

  1. 19.

    Remove the following items:

  1. 20.

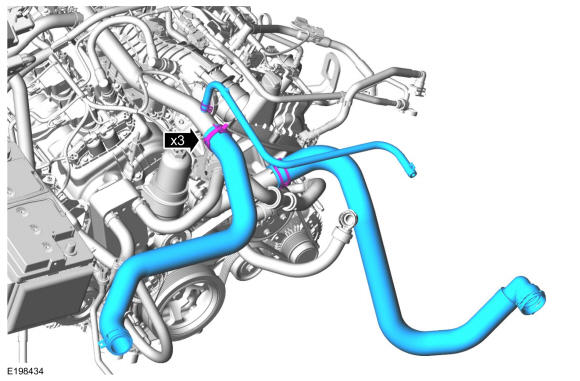

    Release the clamps and remove the coolant hoses.
GFD39298Courtesy of FORD MOTOR COMPANY

  1. 21.

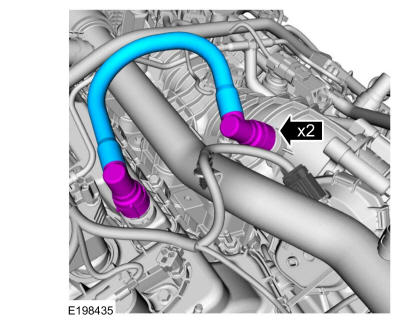

    Disconnect the PCV tube quick release couplings and remove the tube. Refer to: QUICK RELEASE COUPLING
GFD39299Courtesy of FORD MOTOR COMPANY

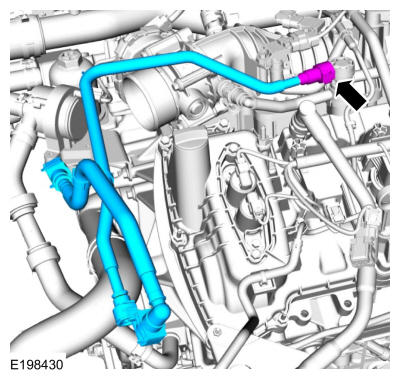

  1. 22.

    Disconnect the quick release coupling and remove the EVAP tube assembly. Refer to: QUICK RELEASE COUPLING .
GFD39300Courtesy of FORD MOTOR COMPANY

  1. 23.

    1. 1.

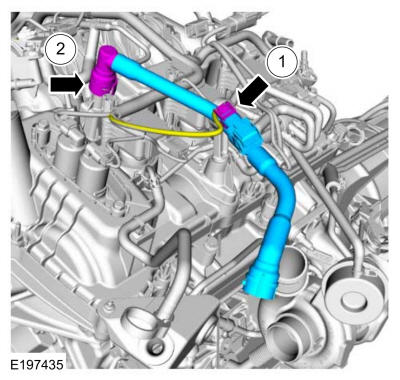

      Disconnect the crankcase pressure sensor electrical connector.

    1. 2.

      Disconnect the PCV tube quick release coupling. Refer to: QUICK RELEASE COUPLING .
GFD39183Courtesy of FORD MOTOR COMPANY

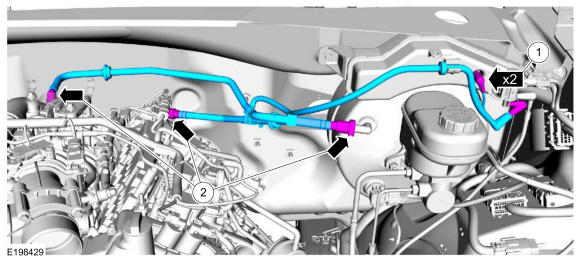

  1. 24.

    1. 1.

      Disconnect the vacuum tubes.

    1. 2.

      Disconnect the quick release couplings and remove the vacuum tube assembly. Refer to: QUICK RELEASE COUPLING .
GFD39301Courtesy of FORD MOTOR COMPANY

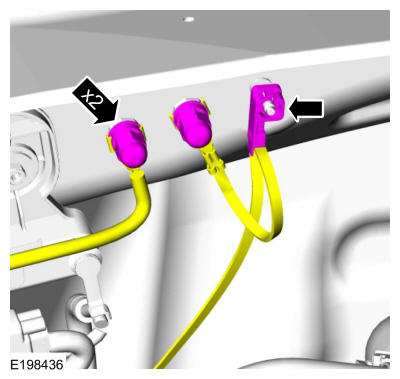

  1. 25.

    Remove the nuts, the wiring ground terminals and detach the wiring harness retainer.
GFD39302Courtesy of FORD MOTOR COMPANY

  1. 26.

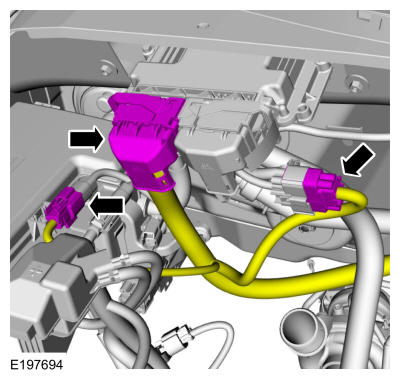

    Disconnect the engine wiring harness electrical connectors.
GFD39273Courtesy of FORD MOTOR COMPANY

  1. 27.

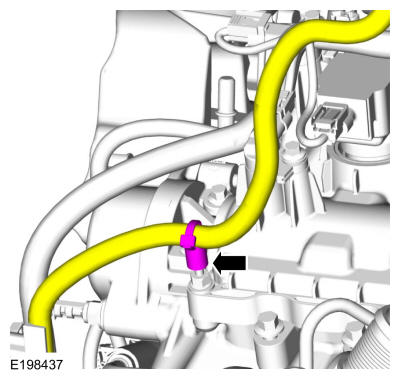

    If equipped, detach 4x4 wiring harness retainer from the rear RH valve cover stud bolt.
GFD39303Courtesy of FORD MOTOR COMPANY

  1. 28.

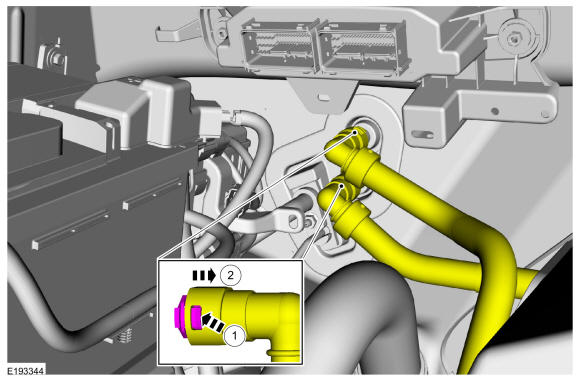

    Disconnect the heater core inlet and outlet hoses.
GFD39304Courtesy of FORD MOTOR COMPANY

  1. 29.

    1. 1.

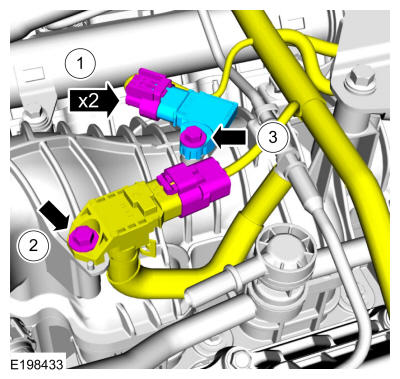

      Disconnect the wiring harness electrical connectors.

    1. 2.

      Remove the bolt and position the vacuum harness pressure sensor aside.

    1. 3.

      Remove the bolt and the MAP sensor.
GFD39305Courtesy of FORD MOTOR COMPANY

  1. 30.

    NOTE: When removing or installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

    Remove the high-pressure fuel pump noise insulator.

GFD39306Courtesy of FORD MOTOR COMPANY

  1. 31.

    Disconnect the high-pressure fuel pump fuel feed tube quick release coupling. Refer to: QUICK RELEASE COUPLING
GFD39307Courtesy of FORD MOTOR COMPANY

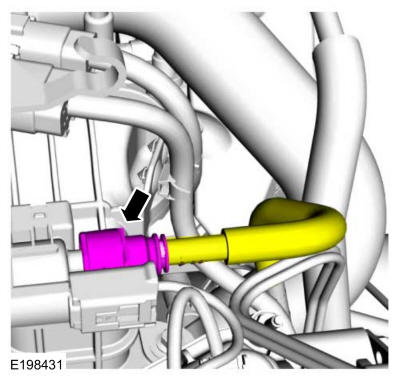

  1. 32.

    Disconnect the EVAP tube quick release coupling. Refer to: QUICK RELEASE COUPLING .
GFD39308Courtesy of FORD MOTOR COMPANY

  1. 33.

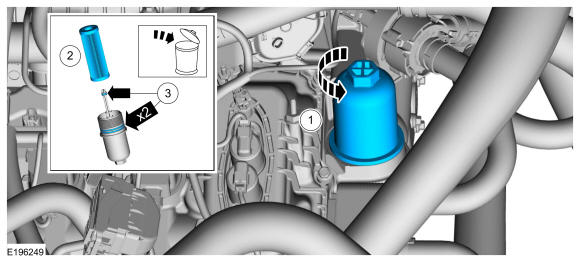

    NOTE: Use a shop towel when removing the oil filter housing to prevent oil from spilling on the engine or accessory drive belt.

    1. 1.

      Loosen the oil filter housing and allow the oil to drain out of the housing and down into the engine.

    1. 2.

      Remove the oil filter housing and discard the oil filter element.

    1. 3.

      Remove and discard the O-ring seals.
GFD39065Courtesy of FORD MOTOR COMPANY

  1. 34.

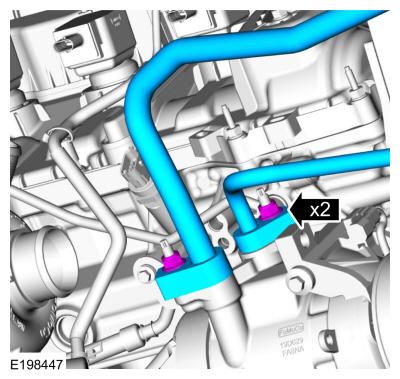

    Remove the nuts and the A/C tubes.
    • Discard the O-ring seals and gaskets.
GFD39309Courtesy of FORD MOTOR COMPANY

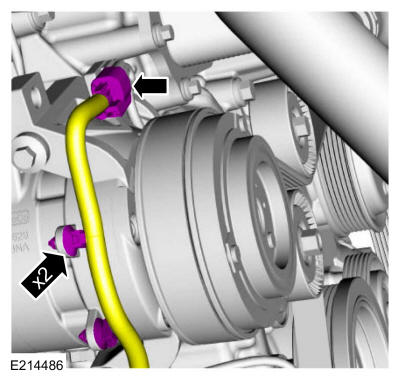

  1. 35.

    • Disconnect the A/C compressor electrical connector.
    • Detach the wiring harness connectors.
GFD39310Courtesy of FORD MOTOR COMPANY

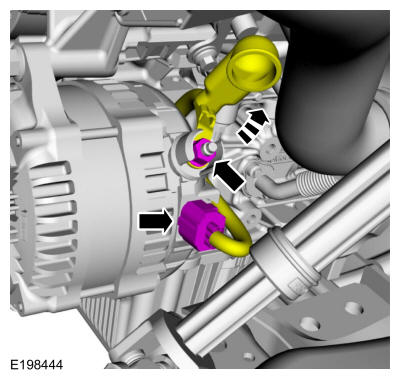

  1. 36.

    • Disconnect the generator electrical connector.
    • Lift the protective cover, remove the nut and position the harness aside.
GFD39311Courtesy of FORD MOTOR COMPANY

  1. 37.

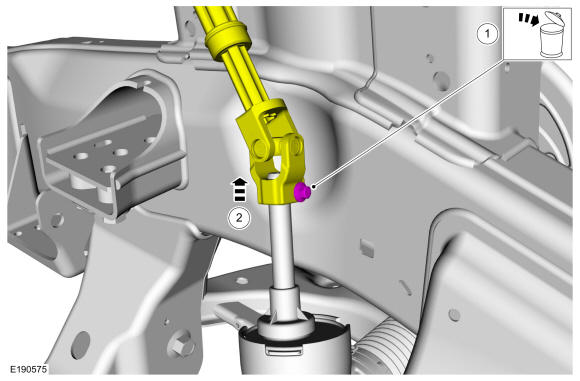

    WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    1. 1.

      Remove and discard the steering column shaft bolt.

    1. 2.

      Separate the steering column shaft u-joint from the steering gear.
GFD38666Courtesy of FORD MOTOR COMPANY

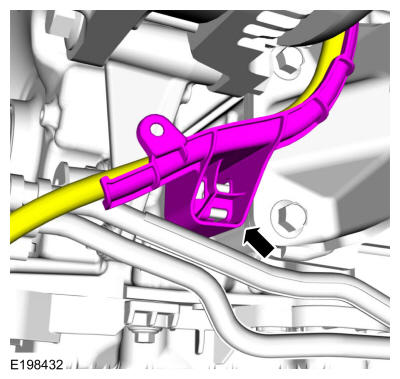

  1. 38.

    Detach the wiring harness retainer located below the generator from the cylinder block.
GFD39312Courtesy of FORD MOTOR COMPANY

  1. 39.

    1. 1.

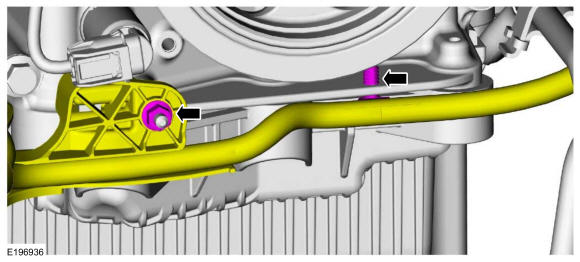

      Remove the wiring harness retainer nut.

    1. 2.

      Remove the pin-type retainer.
GFD39209Courtesy of FORD MOTOR COMPANY

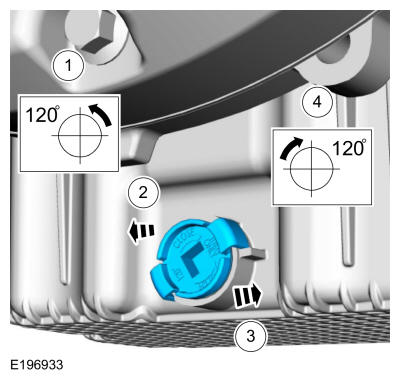

  1. 40.

    NOTE: The drain plug should be removed and installed by hand, do not use tools.

    1. 1.

      Turn the oil drain plug by hand counterclockwise 120 degrees. Use the General Equipment: Oil Drain Equipment

    1. 2.

      Pull the oil drain plug out of the oil pan.

    1. 3.

      After the oil has drained, push the oil drain plug into the oil pan.

    1. 4.

      NOTE: Overtightening will damage the oil drain plug and possibly the oil pan.

      Turn the oil drain plug by hand clockwise 120 degrees.

GFD39066Courtesy of FORD MOTOR COMPANY

  1. 41.

    1. 1.

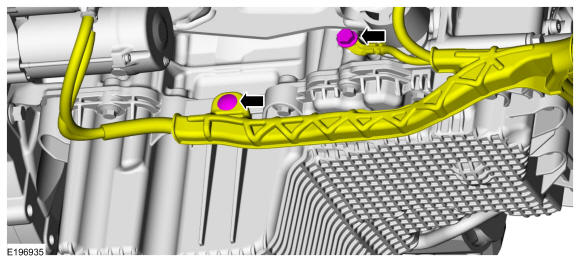

      Remove the pin-type retainer.

    1. 2.

      Remove the bolt and ground wire.
GFD39208Courtesy of FORD MOTOR COMPANY

  1. 42.

    Remove the following items:

  1. 43.

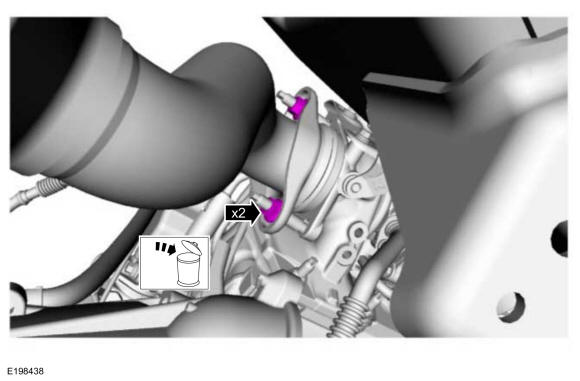

    Remove and discard the RH catalytic converter nuts.
GFD39313Courtesy of FORD MOTOR COMPANY

  1. 44.

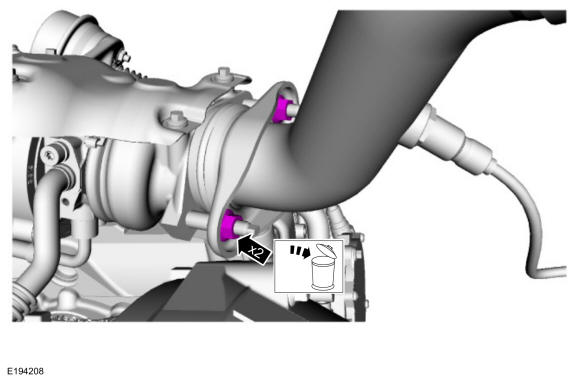

    Remove and discard the LH catalytic converter nuts.
GFD39314Courtesy of FORD MOTOR COMPANY

  1. 45.

    NOTE: Make sure that the mating faces are clean and free of foreign material.

    Remove and discard the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.

GFD39151Courtesy of FORD MOTOR COMPANY

  1. 46.

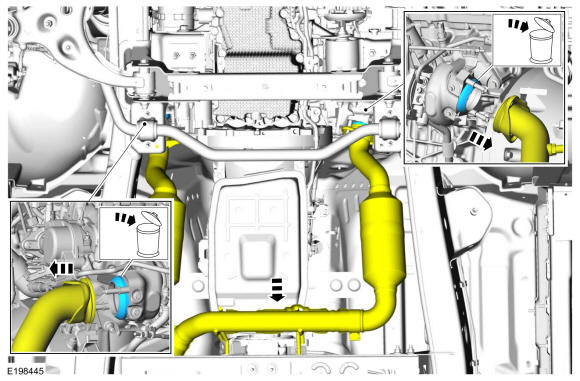

    NOTE: Make sure that the mating faces are clean and free of foreign material.

    Position the catalytic converters back.

    • Remove and discard the exhaust gaskets.
GFD39315Courtesy of FORD MOTOR COMPANY

  1. 47.

    Disconnect theLH catalyst monitor sensor and HO2S electrical connectors.
GFD39316Courtesy of FORD MOTOR COMPANY

  1. 48.

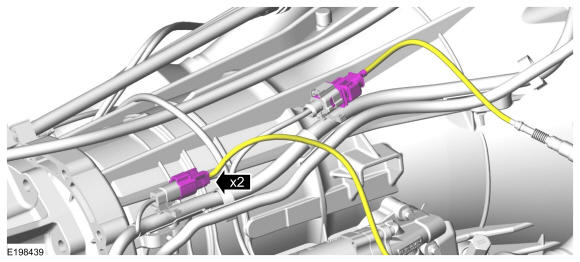

    Disconnect the RH catalyst monitor sensor and HO2S electrical connectors.
GFD39317Courtesy of FORD MOTOR COMPANY

  1. 49.

    If equipped, detach the 4x4 wiring harness retainers and position the harness aside.
GFD39318Courtesy of FORD MOTOR COMPANY

  1. 50.

    NOTE: Do not pull on the wire harness to disconnect the electrical connector or damage to the electrical connector will occur.

    1. 1.

      Rotate the transmission electrical connector counterclockwise.

    1. 2.

      Pull the transmission electrical connector out to disconnect.

    1. 3.

      Disconnect the transmission fluid auxiliary pump electrical connector.

    1. 4.

      Detach the retainers and position the wiring harness aside.
GFD39319Courtesy of FORD MOTOR COMPANY

  1. 51.

    Remove the transmission fluid cooler tube bracket nut.
GFD39210Courtesy of FORD MOTOR COMPANY

  1. 52.

    If equipped, remove the nut and the selector lever cable splash shield.
GFD39320Courtesy of FORD MOTOR COMPANY

  1. 53.

    1. 1.

      Remove and discard the transmission fluid cooler tube bracket stud bolt.

    1. 2.

      Release the retainer and position aside the transmission cooler fluid cooler tubes.
GFD39212Courtesy of FORD MOTOR COMPANY

  1. 54.

    Remove the retainers and the access cover.
GFD39321Courtesy of FORD MOTOR COMPANY

  1. 55.

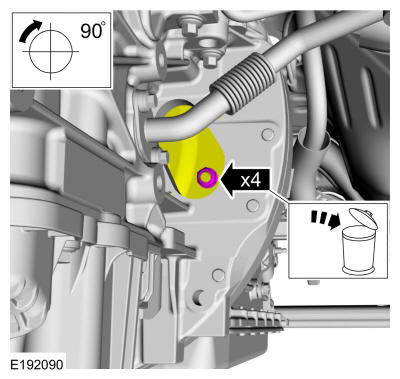

    NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Remove and discard the torque converter nuts.

GFD39322Courtesy of FORD MOTOR COMPANY

  1. 56.

    NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Loosen the transmission mount-to-crossmember nuts.

GFD39152Courtesy of FORD MOTOR COMPANY

  1. 57.

    NOTE: Only use hand tools when loosening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the LH engine mount through bolt.

GFD39161Courtesy of FORD MOTOR COMPANY

  1. 58.

    NOTE: Only use hand tools when removing the engine mount nuts, stud bolts or damage to the engine mount can occur.

    Remove and discard the RH engine mount nuts.

    • Remove the studs.
GFD39160Courtesy of FORD MOTOR COMPANY

  1. 59.

    Remove the lower bellhousing bolt.
GFD39323Courtesy of FORD MOTOR COMPANY

  1. 60.

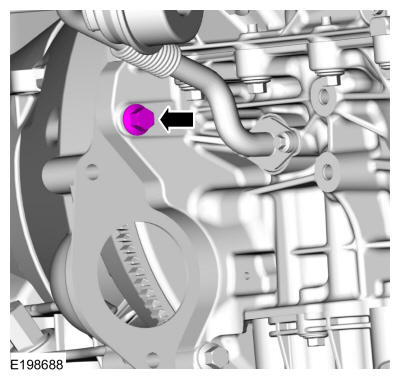

    Remove the RH side bellhousing bolt.
GFD39324Courtesy of FORD MOTOR COMPANY

  1. 61.

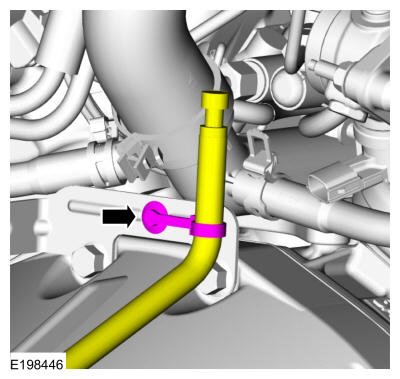

    If equipped, detach the 4x4 vent hose retainer.
GFD39325Courtesy of FORD MOTOR COMPANY

  1. 62.

    Remove the top bellhousing bolts and position aside the bracket.
GFD39326Courtesy of FORD MOTOR COMPANY

  1. 63.

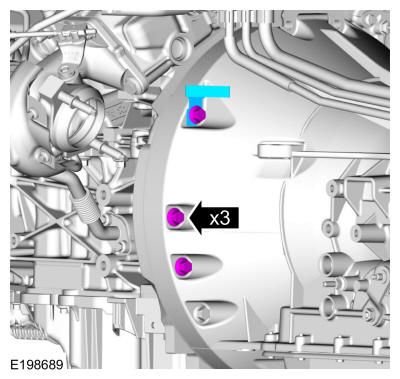

    Remove the LH bellhousing bolts and the selector lever cable bracket.
GFD39327Courtesy of FORD MOTOR COMPANY

  1. 64.

    NOTE: Do not support the transmission by the fluid pan, failure to follow this instruction may result in serious damage to the transmission.

    Support the bellhousing of the transmission with a suitable floor jack and a block of wood. Use the General Equipment: Trolley Jack Use the General Equipment: Wooden Block

GFD39328Courtesy of FORD MOTOR COMPANY

  1. 65.

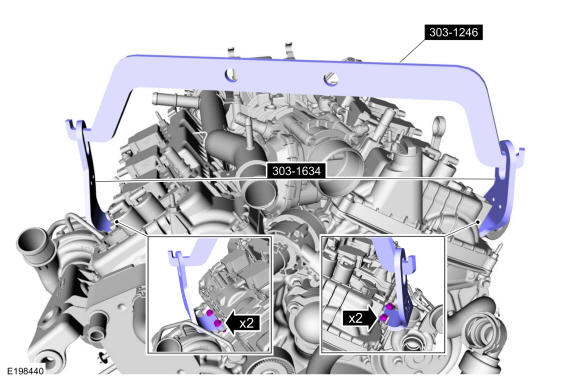

    Install Special Service Tool: 303-1634 Lift Eyes (2)., 303-1246 Engine Spreader Bar.
GFD39329Courtesy of FORD MOTOR COMPANY

  1. 66.

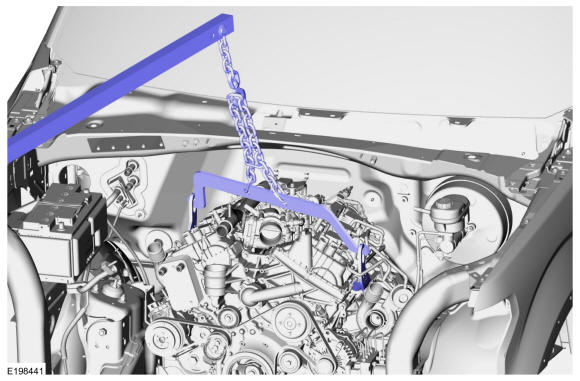

    Install a floor crane and a length of chain with connecting links. Use the General Equipment: Floor Crane
GFD39330Courtesy of FORD MOTOR COMPANY

  1. 67.

    NOTE: Only use hand tools when removing or installing the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.

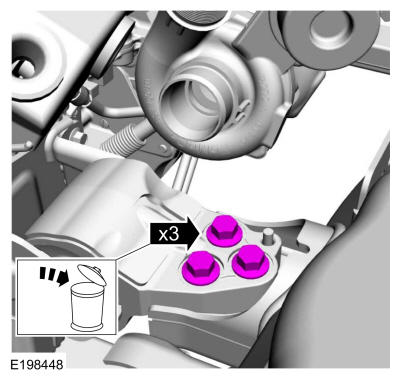

    Remove and discard the engine mount-to-frame bolts.

GFD39331Courtesy of FORD MOTOR COMPANY

  1. 68.

    NOTE: It will be necessary to adjust the height floor jack to support the transmission.

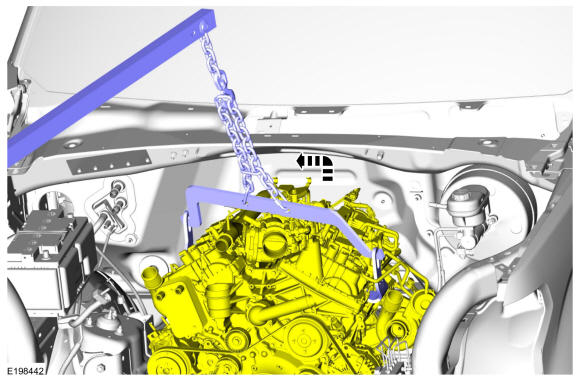

    Using the floor crane raise the engine assembly and position the engine to the RH side of the vehicle. Use the General Equipment: Floor Crane

GFD39332Courtesy of FORD MOTOR COMPANY

  1. 69.

    Remove the LH engine mount.
GFD39333Courtesy of FORD MOTOR COMPANY

  1. 70.

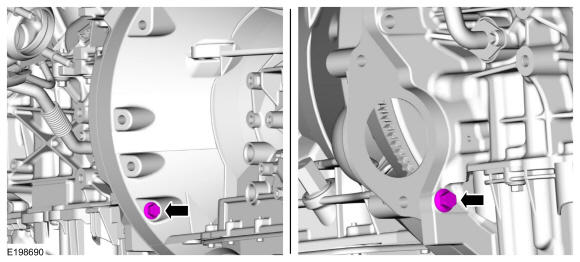

    Remove the remaining transmission bellhousing bolts.
GFD39334Courtesy of FORD MOTOR COMPANY

  1. 71.

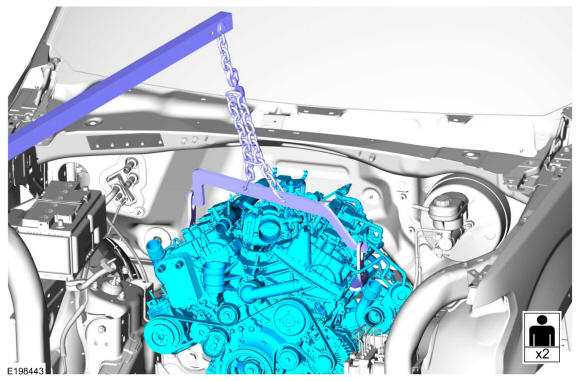

    Using the floor crane, remove the engine assembly from the vehicle. Use the General Equipment: Floor Crane
GFD39335Courtesy of FORD MOTOR COMPANY
