Valve Cover LH: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

3.
1. 1.

  Remove the nuts.
1. 2.

  Slide the engine appearance cover out of the retaining bracket.
- If the engine appearance cover stud bolts are loosened or removed, they must be installed/tightened into the intake manifold.
  Torque

  : 62 lb.in (7 Nm)

GFD39181

Courtesy of FORD MOTOR COMPANY

4.

Remove the following items:
- Refer to: AIR CLEANER .
- Refer to: AIR CLEANER OUTLET PIPE LH
- LH CAC intake pipe. Refer to: CHARGE AIR COOLER (CAC) INTAKE PIPE .
- Refer to: THROTTLE BODY .

5.

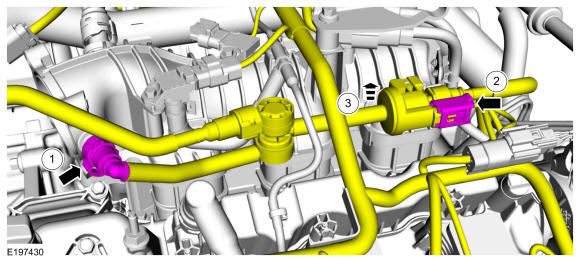

1. 1.

  Disconnect the EVAP tube quick release coupling. Refer to: QUICK RELEASE COUPLING .
1. 2.

  Disconnect the EVAP purge valve electrical connector.
1. 3.

  Lift the EVAP purge valve off of the intake manifold mounting tab.

GFD39182

Courtesy of FORD MOTOR COMPANY

6.

Remove the bolts and the engine appearance cover bracket.

GFD39184

Courtesy of FORD MOTOR COMPANY

7.

Disconnect the engine wiring harness electrical connectors and retainers.

GFD39186

Courtesy of FORD MOTOR COMPANY

8.
1. 1.

  Remove the vacuum harness pressure sensor bolt.
1. 2.

  Disconnect the MAP sensor electrical connector.
1. 3.

  Detach the wiring harness and vacuum harness retainers.

GFD39187

Courtesy of FORD MOTOR COMPANY

9.

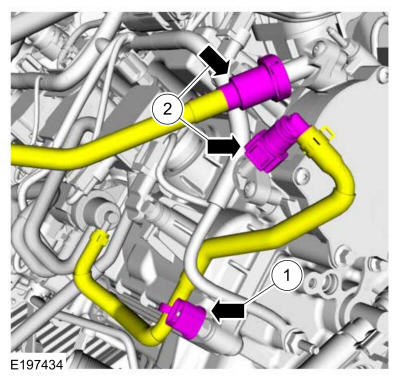

1. 1.

  Detach the vacuum tube retainer.
1. 2.

  Disconnect the vacuum tube quick release couplings. Refer to: QUICK RELEASE COUPLING .

GFD39258

Courtesy of FORD MOTOR COMPANY

10.
1. 1.

  Disconnect the crankcase pressure sensor electrical connector.
1. 2.

  Disconnect the PCV tube quick release coupling. Refer to: QUICK RELEASE COUPLING

GFD39183

Courtesy of FORD MOTOR COMPANY

11.

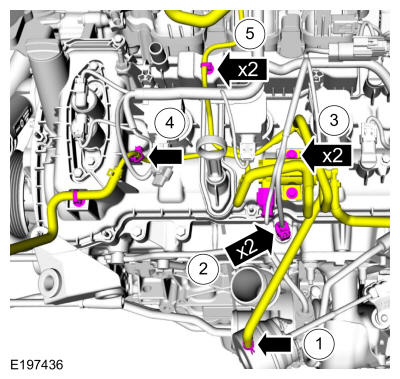

1. 1.

  Disconnect the TC vacuum supply hose.
1. 2.

  Disconnect the engine wiring harness electrical connectors.
1. 3.

  Remove the bolts and position the TC control solenoid aside.
1. 4.

  Disconnect the vacuum hose retaining clip.
1. 5.

  Detach the vacuum hose retainers.

GFD39259

Courtesy of FORD MOTOR COMPANY

12.

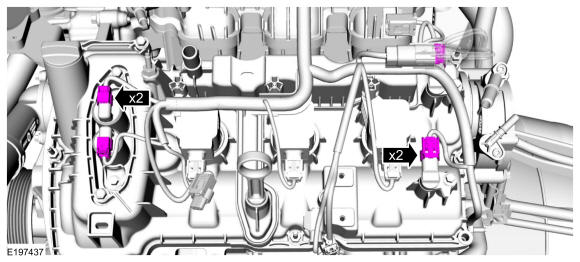

Disconnect the VCT and CMP sensor electrical connectors.

GFD39260

Courtesy of FORD MOTOR COMPANY

13.

Remove the LH coil-on-plugs. Refer to: IGNITION COIL-ON-PLUG

14.

Remove the oil level indicator.

GFD39261

Courtesy of FORD MOTOR COMPANY

15.

Remove the nuts and the bracket.

GFD39262

Courtesy of FORD MOTOR COMPANY

16.

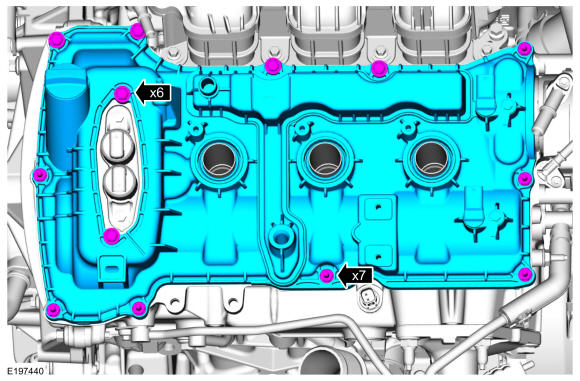

Loosen the fasteners and remove the valve cover.

GFD39263

Courtesy of FORD MOTOR COMPANY

17.

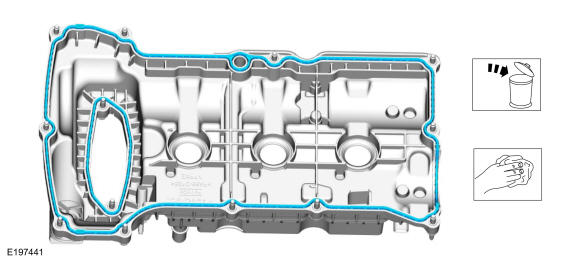

Remove and discard the gasket.
- Clean the valve cover gasket groove with soap and water or a suitable solvent.

GFD39264

Courtesy of FORD MOTOR COMPANY

18.

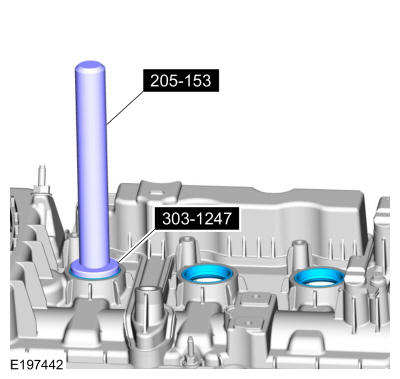

Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

GFD39265

Courtesy of FORD MOTOR COMPANY

19.

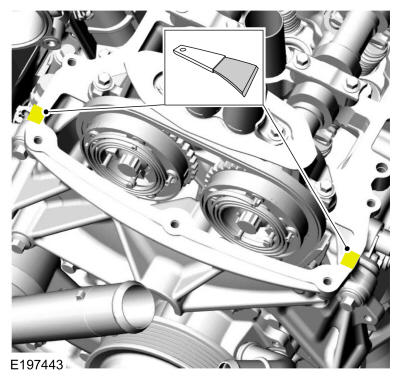

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

Clean the valve cover mating surface of the cylinder head and engine front cover. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

Material

: Motorcraft ® Silicone Gasket Remover / ZC-30-A

Material

: Motorcraft ® Metal Surface Prep / ZC-31-B

Material

: Metal Brake Parts Cleaner / PM-4-A, PM-4-B

GFD39266

Courtesy of FORD MOTOR COMPANY
