Valve Cover LH: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: Installation of new seals is only required if damaged seals were removed.

Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

Courtesy of FORD MOTOR COMPANY

2.

Install a new gasket.

Courtesy of FORD MOTOR COMPANY

3.

NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

Apply an 8 mm (0.31 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

Material

: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

4.

Install the valve cover and tighten the bolts.
Torque

: 89 lb.in (10 Nm)

Fig 1: LH Valve Cover Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

5.

Install the bracket and the nuts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

6.

Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY

7.

Install the LH coil-on-plugs. Refer to: IGNITION COIL-ON-PLUG

8.

Connect the VCT and CMP sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY

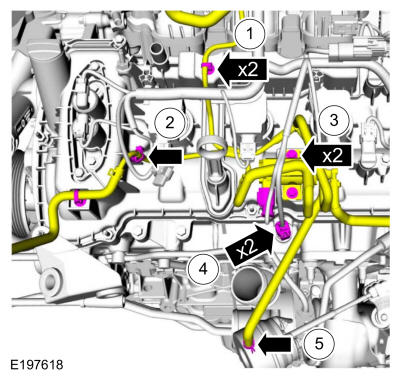

9.
1. 1.

  Attach the vacuum hose retainers.
1. 2.

  Connect the vacuum hose retaining clip.
1. 3.

  Install the TC control solenoid and the bolts.
  Torque

  : 62 lb.in (7 Nm)
1. 4.

  Connect the engine wiring harness electrical connectors.
1. 5.

  Connect the TC vacuum supply hose.

Courtesy of FORD MOTOR COMPANY

10.
1. 1.

  Connect the PCV tube quick release coupling. Refer to: QUICK RELEASE COUPLING
1. 2.

  Connect the crankcase pressure sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

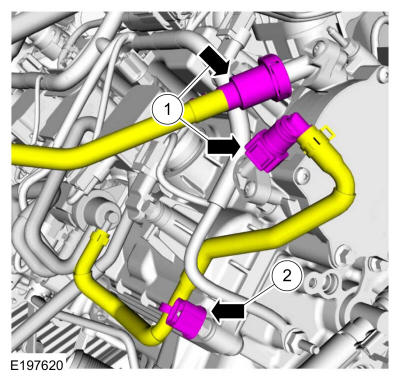

11.
1. 1.

  Connect the vacuum tube quick release couplings. Refer to: QUICK RELEASE COUPLING
1. 2.

  Attach the vacuum tube retainer.

Courtesy of FORD MOTOR COMPANY

12.
1. 1.

  Position the vacuum harness pressure sensor and install the bolt.
  Torque

  : 62 lb.in (7 Nm)
1. 2.

  Connect the MAP sensor electrical connector.
1. 3.

  Attach the wiring harness and vacuum harness retainers.

Courtesy of FORD MOTOR COMPANY

13.

Connect the engine wiring harness electrical connectors and retainers.

Courtesy of FORD MOTOR COMPANY

14.

Install the engine appearance cover bracket and the bolts.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

15.
1. 1.

  Slide the EVAP purge valve onto the intake manifold mounting tab.
1. 2.

  Connect the EVAP purge valve electrical connector.
1. 3.

  Connect the EVAP tube quick release coupling. Refer to: QUICK RELEASE COUPLING

Courtesy of FORD MOTOR COMPANY

16.

Install the following items:
- Refer to: THROTTLE BODY
- LH CAC intake pipe. Refer to: CHARGE AIR COOLER (CAC) INTAKE PIPE .
- Refer to: AIR CLEANER OUTLET PIPE LH .
- Refer to: AIR CLEANER .

17.
1. 1.

  Slide the engine appearance cover into the retaining bracket.
1. 2.

  Install the nuts.
  Torque

  : 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

18.

Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
