Oil Pump: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.
1. 1.

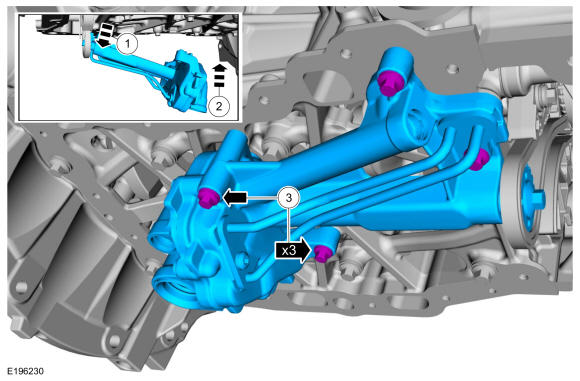

  Install the oil pump sprocket into the oil pump drive chain.
1. 2.

  Raise the rear of the oil pump assembly into the installed position.
1. 3.

  Install the oil pump bolts.
  Torque

  : Stage 1: 89 lb.in (10 Nm) Stage 2: 45 °

Courtesy of FORD MOTOR COMPANY

2.

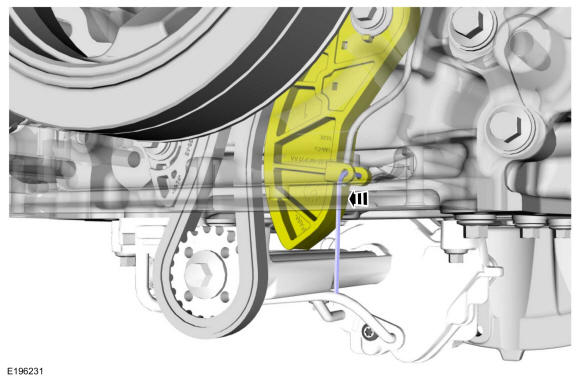

Remove the pin.

Courtesy of FORD MOTOR COMPANY

3.

Install the oil pan. Refer to: Oil Pan .
