Oil Pan: Installation

4x2/4x4

1. 1.

   Install a new oil pump seal.

Courtesy of FORD MOTOR COMPANY

1. 2.


   NOTE: Failure to use Motorcraft ® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
   NOTE: The oil pan must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.

   1. 1.

      Apply a 4.5 mm (0.18 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the sealing surface of the new oil pan.

      Material

      : Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

   1. 2.

      Apply a 9 mm (0.35 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the engine front cover-to-cylinder block joint areas on the new oil pan.

      Material

      : Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

   1. 3.

      Inspect the crankcase ventilation passages to make sure they are not blocked by any sealer applied.

Courtesy of FORD MOTOR COMPANY

1. 3.

   Install the new oil pan and the bolts.

   Torque

   : 89 lb.in (10 Nm)

Fig 1: Oil Pan Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

1. 4.


   NOTE: Inspect the case and make sure the old transmission fluid cooler tube O-rings are not stuck in the case.

   Inspect the transmission fluid cooler O-ring seals. Install new O-ring seals if necessary.

Courtesy of FORD MOTOR COMPANY

1. 5.



   1. 1.

      Position the transmission fluid cooler tubes and attach the retainer.

   1. 2.

      Install the new transmission fluid cooler tube bracket stud bolt.

      Torque

      : 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

1. 6.


   NOTE: 4WD shown, 2WD similar.

   Install the heat shield and nut.

   Torque

   : 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

1. 7.

   Install the transmission fluid cooler tube bracket nut.

   Torque

   : 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

1. 8.



   1. 1.

      Install the wiring harness retainer nut.

      Torque

      : 106 lb.in (12 Nm)

   1. 2.

      Install the pin-type retainer.

Courtesy of FORD MOTOR COMPANY

1. 9.



   1. 1.

      Install the pin-type retainer.

   1. 2.

      Install the ground wire and bolt.

      Torque

      : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

4x4

1. 10.

   Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

1. 11.

   Install the lower front axle carrier mounting bushing bolt.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 12.

   Install the axle shaft housing carrier bushing bolt.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 13.

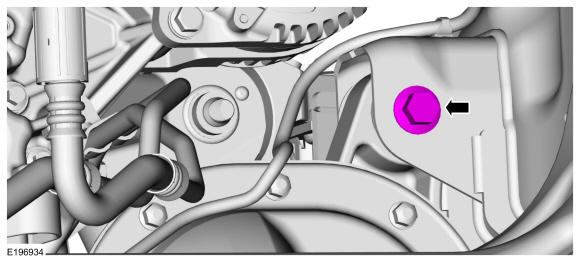

   Install the upper front axle carrier mounting bushing bolt.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 14.

   Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

4x2/4x4

1. 15.

   Install the crossmember, bolts and the nuts.

   Torque

   : 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

1. 16.

   If equipped, install the skid plate and bolts.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 17.

   If equipped, install the underbody shield and fasteners.

   Torque

   : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

1. 18.

   If equipped, install the underbody shield and fasteners.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 19.

   If equipped, install the skid plate and bolts.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 20.


   NOTE: If the filter housing stem is damaged or missing the oil will flow through the reservoir drain port and a loss  of engine oil pressure will occur.

   Inspect the oil filter housing and stem for damage including cracks or separation of the stem from the housing. If damaged, a new oil filter housing assembly must be installed.

Courtesy of FORD MOTOR COMPANY

1. 21.


   NOTE: Failure to install new oil filter housing-to-engine front cover seals may result in oil leakage.
   • Install new oil filter housing-to-engine front cover seals and lubricate with clean engine oil.

     Material

     : Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

   NOTE: Failure to install a new oil filter housing stem-to-oil reservoir drain port seal will result with the oil flowing through the reservoir drain port and a loss  of engine oil pressure.
   • Install a new oil filter housing stem-to-oil reservoir drain port seal and lubricate with clean engine oil.

     Material

     : Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY

1. 22.



   1. 1.

      Install a new oil filter element.

   1. 2.

      Install the oil filter housing.

      Torque

      : 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

1. 23.

   Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY

1. 24.

   Fill the engine with clean engine oil. Refer to: Specifications .

   Material

   : Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY

1. 25.

   After filling the engine with oil, the oil must flow from the main chamber of the oil pan, through a check valve into the smaller side chamber to correctly register the oil level on the oil level indicator. This may take up to 15 minutes.

Courtesy of FORD MOTOR COMPANY

1. 26.

   Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

1. 27.

   Check transmission fluid level. Refer to: Transmission Fluid Level Check .
