Oil Cooler: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

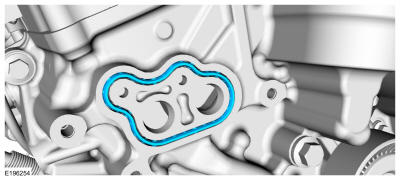

    Install a new gasket.
GFD39203Courtesy of FORD MOTOR COMPANY

  1. 2.

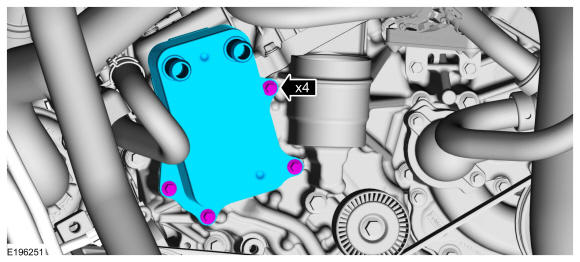

    Install the oil cooler and the bolts.

    Torque

    : 89 lb.in (10 Nm)

GFD39200Courtesy of FORD MOTOR COMPANY

  1. 3.

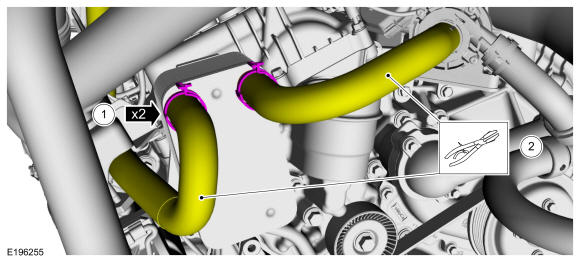

    • Connect the coolant hoses.
    • Remove the hose locking pliers. Use the General Equipment: Locking Pliers
GFD39204Courtesy of FORD MOTOR COMPANY

  1. 4.

    NOTE: The drain plug should be removed and installed by hand, do not use tools.

    1. 1.

      Turn the oil drain plug by hand counterclockwise 120 degrees. Use the General Equipment: Oil Drain Equipment

    1. 2.

      Pull the oil drain plug out of the oil pan.

    1. 3.

      After the oil has drained, push the oil drain plug into the oil pan.

    1. 4.

      NOTE: Overtightening will damage the oil drain plug and possibly the oil pan.

      Turn the oil drain plug by hand clockwise 120 degrees.

GFD39066Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: If the filter housing stem is damaged or missing the oil will flow through the reservoir drain port and a loss  of engine oil pressure will occur.

    Inspect the oil filter housing and stem for damage including cracks or separation of the stem from the housing. If damaged, a new oil filter housing assembly must be installed.

GFD39067Courtesy of FORD MOTOR COMPANY

  1. 6.

      NOTE: Failure to install new oil filter housing-to-engine front cover seals may result in oil leakage.
    • Install new oil filter housing-to-engine front cover seals and lubricate with clean engine oil.

      Material

      : Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

      NOTE: Failure to install a new oil filter housing stem-to-oil reservoir drain port seal will result with the oil flowing through the reservoir drain port and a loss  of engine oil pressure.
    • Install a new oil filter housing stem-to-oil reservoir drain port seal and lubricate with clean engine oil.

      Material

      : Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

GFD39068Courtesy of FORD MOTOR COMPANY

  1. 7.

    1. 1.

      Install a new oil filter element.

    1. 2.

      Install the oil filter housing.

      Torque

      : 18 lb.ft (24 Nm)

GFD39069Courtesy of FORD MOTOR COMPANY

  1. 8.

    Fill the engine with clean engine oil. Refer to: Specifications .

    Material

    : Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

GFD39070Courtesy of FORD MOTOR COMPANY

  1. 9.

    After filling the engine with oil, the oil must flow from the main chamber of the oil pan, through a check valve into the smaller side chamber to correctly register the oil level on the oil level indicator. This may take up to 15 minutes.
GFD39061Courtesy of FORD MOTOR COMPANY

  1. 10.

    Check the oil level and adjust as necessary.
GFD39205Courtesy of FORD MOTOR COMPANY

  1. 11.

    Inspect and adjust the coolant level in the degas bottle

    Material

    : Motorcraft ® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)
