Intake Manifold: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris if found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

  1. 1.

    Install the gaskets.
GFD39194Courtesy of FORD MOTOR COMPANY

  1. 2.

    Install the intake manifold and tighten the bolts.

    Torque

    : 89 lb.in (10 Nm)

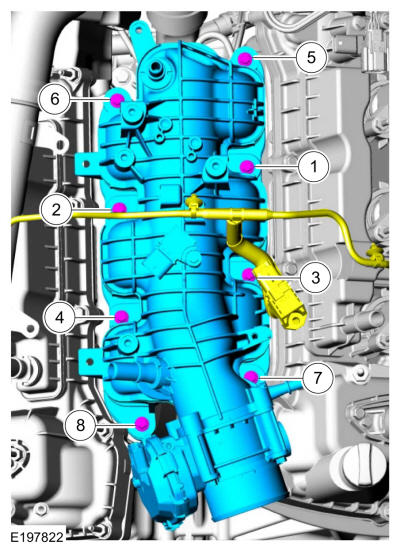

Fig 1: Intake Manifold Bolts Tightening Sequence
GFD39195Courtesy of FORD MOTOR CO.

  1. 3.

    Install the coolant pipe and the bolts.

    Torque

    : 97 lb.in (11 Nm)

GFD39191Courtesy of FORD MOTOR COMPANY

  1. 4.

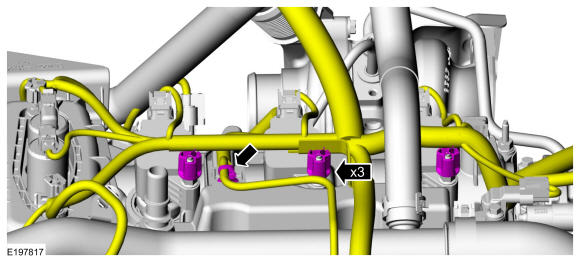

    Attach the engine wiring harness and vacuum hose retainers.
GFD39190Courtesy of FORD MOTOR COMPANY

  1. 5.

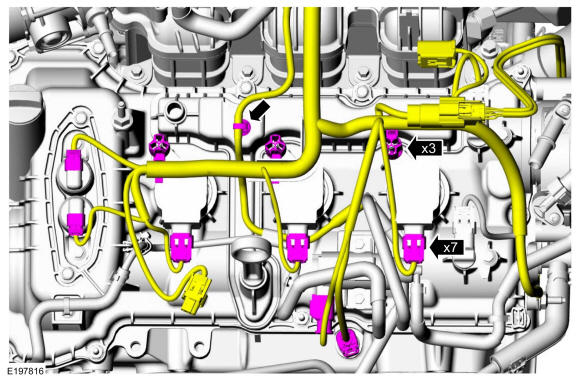

    Connect the engine wiring harness electrical connectors and attach the harness and vacuum hose retainers.
GFD39189Courtesy of FORD MOTOR COMPANY

  1. 6.

    • Connect the throttle body electrical connector and wiring harness retainer.
GFD39188Courtesy of FORD MOTOR COMPANY

  1. 7.

    1. 1.

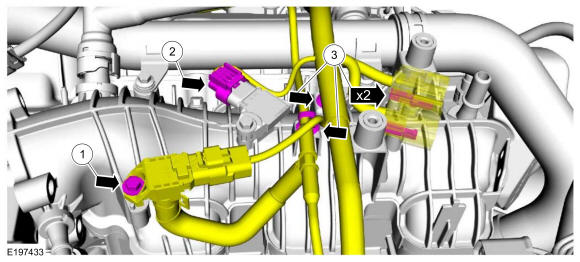

      Position the vacuum harness pressure sensor and install the bolt.

      Torque

      : 62 lb.in (7 Nm)

    1. 2.

      Connect the MAP sensor electrical connector.

    1. 3.

      Attach the wiring harness and vacuum harness retainers.
GFD39187Courtesy of FORD MOTOR COMPANY

  1. 8.

    Connect the engine wiring harness electrical connectors and retainers.
GFD39186Courtesy of FORD MOTOR COMPANY

  1. 9.

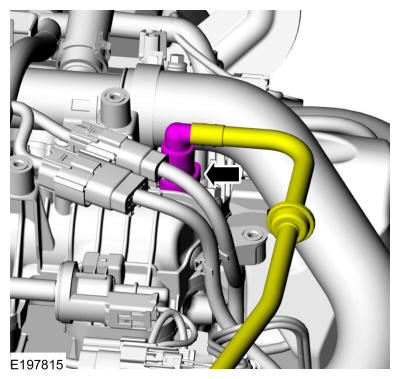

    Connect the vacuum tube quick release coupling. Refer to: QUICK RELEASE COUPLING
GFD39185Courtesy of FORD MOTOR COMPANY

  1. 10.

    Install the engine appearance cover bracket and the bolts.

    Torque

    : 97 lb.in (11 Nm)

GFD39184Courtesy of FORD MOTOR COMPANY

  1. 11.

    1. 1.

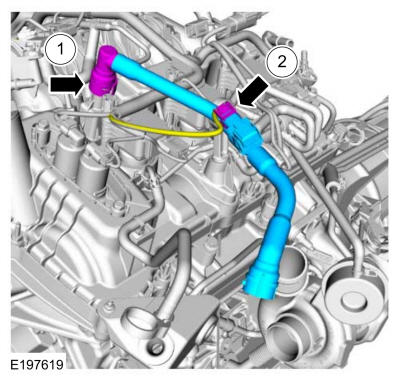

      Connect the PCV tube quick release coupling. Refer to: QUICK RELEASE COUPLING

    1. 2.

      Connect the crankcase pressure sensor electrical connector.
GFD39196Courtesy of FORD MOTOR COMPANY

  1. 12.

    1. 1.

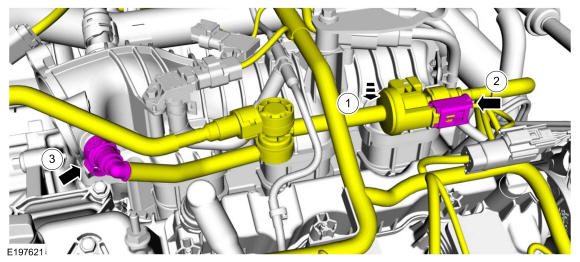

      Slide the EVAP purge valve onto the intake manifold mounting tab.

    1. 2.

      Connect the EVAP purge valve electrical connector.

    1. 3.

      Connect the EVAP tube quick release coupling. Refer to: QUICK RELEASE COUPLING .
GFD39197Courtesy of FORD MOTOR COMPANY

  1. 13.

    Install the following items:

  1. 14.

    1. 1.

      Slide the engine appearance cover into the retaining bracket.

    1. 2.

      Install the nuts.

      Torque

      : 44 lb.in (5 Nm)

GFD39198Courtesy of FORD MOTOR COMPANY

  1. 15.

    Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
