Removal And Installation: Flexplate: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.
1. 1.

  Position the flexplate on the crankshaft.
1. 2.

  Install the bolts then rundown the bolts one turn at a time in sequence shown until the flexplate is snug against the rear face of the crankshaft.
1. 3.

  Final tighten the bolts in sequence shown.
  Torque

  : 59 lb.ft (80 Nm)

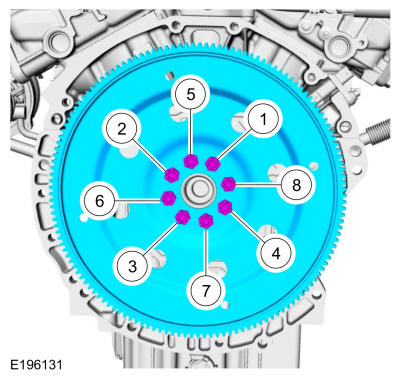

Fig 1: Flexplate Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

2.

Install the transmission. Refer to: Transmission - 2.7L EcoBoost (238kW/324PS) .

3.

After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
