Engine Mount RH: Removal

4x2/4x4

1. 1.

   With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

1. 2.

   Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

1. 3.

   Remove the following items:
   • Refer to: AIR CLEANER OUTLET PIPE RH .
   • Refer to: AIR CLEANER OUTLET PIPE LH .
   • RH CAC intake pipe. Refer to: CHARGE AIR COOLER (CAC) INTAKE PIPE
   • Refer to: CHARGE AIR COOLER (CAC) OUTLET PIPE .

1. 4.

   If equipped, remove the fasteners and the underbody shield.

Courtesy of FORD MOTOR COMPANY

1. 5.

   If equipped, remove the bolts and the skid plate.

Courtesy of FORD MOTOR COMPANY

1. 6.

   If equipped, remove the fasteners and the underbody shield.

Courtesy of FORD MOTOR COMPANY

1. 7.

   Remove the following items:
   • Refer to: STARTING SYSTEM .
   • Refer to: ACCESSORY DRIVE BELT

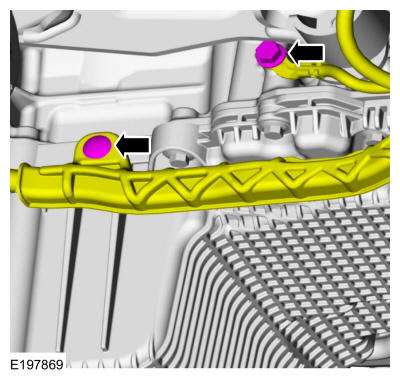

1. 8.



   1. 1.

      Remove the pin-type retainer.

   1. 2.

      Remove the bolt and ground wire.

Courtesy of FORD MOTOR COMPANY

1. 9.

   Remove the following items:
   • RH wheel and tire. Refer to: Wheel and Tire .
   • RH fender splash shield. Refer to: Fender Splash Shield .

1. 10.

   Remove the bolts and position the A/C compressor aside.

Courtesy of FORD MOTOR COMPANY

1. 11.


   NOTE: Make sure that the mating faces are clean and free of foreign material.

   Remove and discard the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.

Courtesy of FORD MOTOR COMPANY

1. 12.


   NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

   Loosen the transmission mount-to-crossmember nuts.

Courtesy of FORD MOTOR COMPANY

4x4

1. 13.

   Remove the front drive shaft. Refer to: Front Driveshaft .

4x2

1. 14.

   Remove and discard the stabilizer bar bracket nuts.
   • Allow the stabilizer bar to swing downward.

Courtesy of FORD MOTOR COMPANY

4x2/4x4

1. 15.


   NOTE: Only use hand tools when loosening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Remove and discard the LH engine mount through bolt.

Courtesy of FORD MOTOR COMPANY

1. 16.


   NOTE: Only use hand tools when removing the engine mount nuts, stud bolts or damage to the engine mount can occur.

   Remove and discard the RH engine mount nuts.

   • Remove the studs.

Courtesy of FORD MOTOR COMPANY

1. 17.



   1. 1.

      Position an adjustable stand under the rear of the engine. Use the General Equipment: Vehicle/Axle Stands

   1. 2.

      Raise the engine 50 mm (2 in).

Courtesy of FORD MOTOR COMPANY

1. 18.

   Remove and discard the engine mount bracket-to-engine bolts.

   1. 1.

      Remove the engine mount and bracket as an assembly.

   1. 2.

      Clean the engine mount bracket-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

Courtesy of FORD MOTOR COMPANY
