Engine Mount LH: Removal

4x2/4x4

1. 1.

   With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

1. 2.

   Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

1. 3.

   Remove the following items:
   • Refer to: AIR CLEANER .
   • Refer to: AIR CLEANER OUTLET PIPE LH .
   • LH CAC intake pipe. Refer to: CHARGE AIR COOLER (CAC) INTAKE PIPE .
   • Refer to: CHARGE AIR COOLER (CAC) OUTLET PIPE .

1. 4.


   NOTE: Only use hand tools when removing or installing the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.

   Remove and discard the engine mount-to-frame bolts.

Courtesy of FORD MOTOR COMPANY

1. 5.

   If equipped, remove the fasteners and the underbody shield.

Courtesy of FORD MOTOR COMPANY

1. 6.

   If equipped, remove the bolts and the skid plate.

Courtesy of FORD MOTOR COMPANY

1. 7.

   If equipped, remove the fasteners and the underbody shield.

Courtesy of FORD MOTOR COMPANY

1. 8.


   NOTE: Make sure that the mating faces are clean and free of foreign material.

   Remove and discard the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.

Courtesy of FORD MOTOR COMPANY

1. 9.


   NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

   Loosen the transmission mount-to-crossmember nuts.

Courtesy of FORD MOTOR COMPANY

4x4

1. 10.

   Remove the front drive shaft. Refer to: Front Driveshaft .

1. 11.

   Using an adjustable stand, support the front axle. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

1. 12.

   Remove the upper front axle carrier mounting bushing bolt.

Courtesy of FORD MOTOR COMPANY

1. 13.

   Remove the axle shaft housing carrier bushing bolt.

Courtesy of FORD MOTOR COMPANY

1. 14.

   Remove the lower front axle carrier mounting bushing bolt.

Courtesy of FORD MOTOR COMPANY

1. 15.

   Using an adjustable stand, lower the axle to allow clearance for the engine mount to be removed. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

4x2

1. 16.

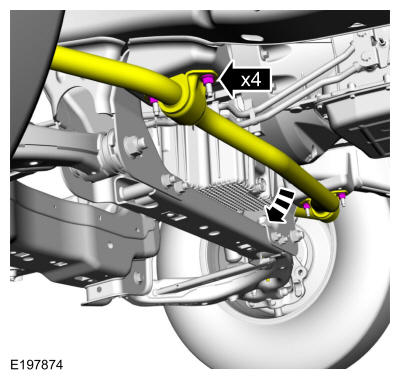

   Remove and discard the stabilizer bar bracket nuts.
   • Allow the stabilizer bar to swing downward.

Courtesy of FORD MOTOR COMPANY

4x2/4x4

1. 17.

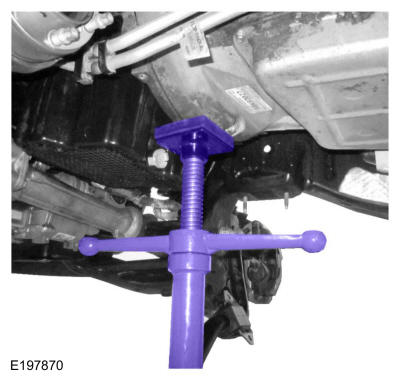

   Position an adjustable stand under the rear of the engine. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

1. 18.


   NOTE: Only use hand tools when removing the engine mount nuts, stud bolts or damage to the engine mount can occur.

   Remove and discard the RH engine mount nuts.

   • Remove the studs.

Courtesy of FORD MOTOR COMPANY

1. 19.


   NOTE: Only use hand tools when loosening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Remove and discard the LH engine mount through bolt.

Courtesy of FORD MOTOR COMPANY

1. 20.

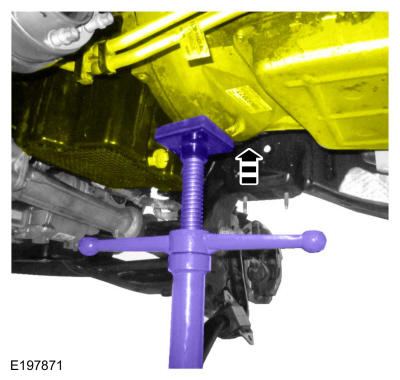

   Using the adjustable stand, raise the engine 50 mm (2 in). Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

1. 21.

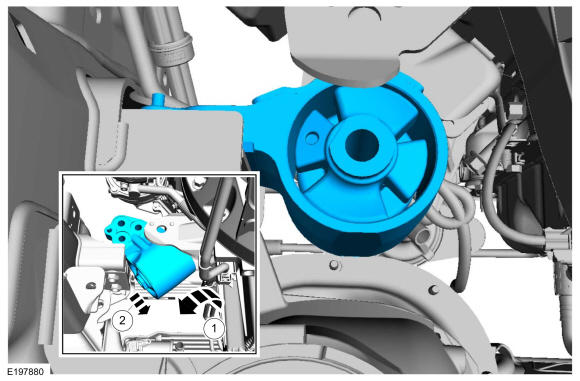

   Using a twisting motion, remove the LH engine mount.

Courtesy of FORD MOTOR COMPANY

1. 22.



   1. 1.

      Inspect the engine mount-to-frame nut plate for thread damage.

   1. 2.

      If the nut plate is damaged, remove and discard the engine mount-to-frame nut plate.

Courtesy of FORD MOTOR COMPANY

1. 23.

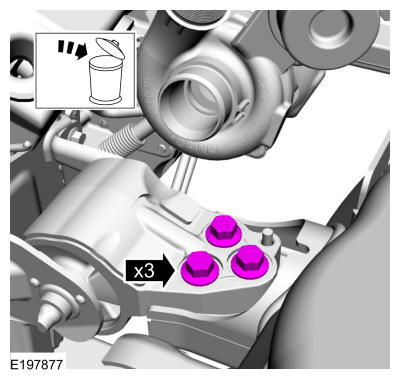

   Remove the bolts and the engine mount-to-cylinder block bracket.
   • Discard the bolts.
   • Clean the engine mount-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

Courtesy of FORD MOTOR COMPANY
