Engine Mount LH: Installation

4x2/4x4

1. 1.

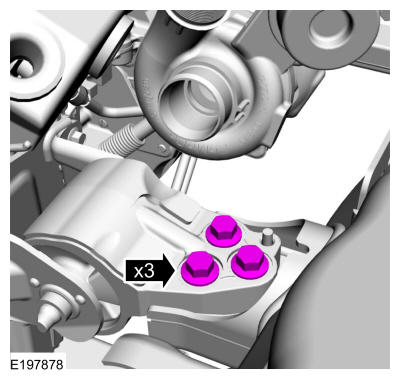

   Install the engine mount-to-cylinder block bracket and the bolts.

   Torque

   : 57 lb.ft (77 Nm)

Courtesy of FORD MOTOR COMPANY

1. 2.

   If removed, install a new engine mount-to-frame nut plate.

Courtesy of FORD MOTOR COMPANY

1. 3.



   1. 1.

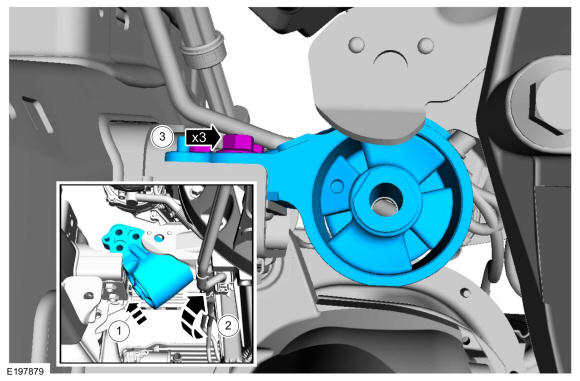

      Position the LH engine mount into the bracket opening.

   1. 2.

      Using a twisting motion install the mount.

   1. 3.

      Hand start the new engine mount-to-frame bolts. Do not tighten at this time.

Courtesy of FORD MOTOR COMPANY

1. 4.

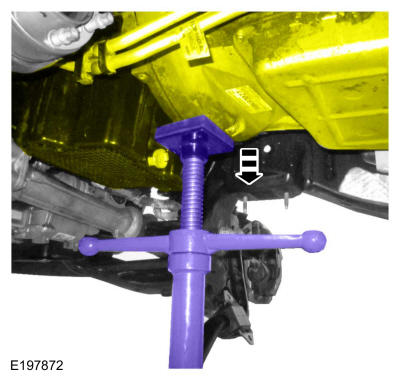

   Using the adjustable stand, lower the engine to the installed position. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

1. 5.

   Install the new LH engine mount through bolt.
   • Do not tighten at this time.

Courtesy of FORD MOTOR COMPANY

1. 6.


   NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.

   Install the engine mount studs.

   Torque

   : 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

1. 7.


   NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

   Install the new engine mount nuts.

   Torque

   : 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY

1. 8.

   Remove the stand. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

1. 9.


   NOTE: Only use hand tools when removing or installing the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.

   Tighten the LH engine mount bolts

   Torque

   : 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY

1. 10.


   NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Tighten the LH engine mount through bolt.

   Torque

   : 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY

4x2

1. 11.

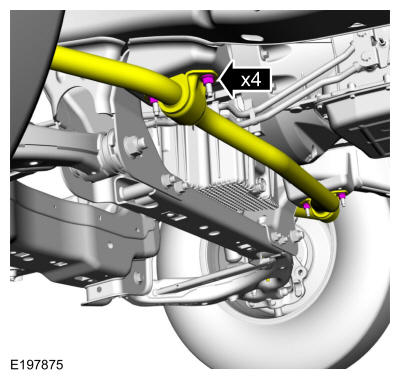

   Position the stabilizer bar and install the new nuts.

   Torque

   : 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

4x4

1. 12.

   Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

1. 13.

   Install the lower front axle carrier mounting bushing bolt.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 14.

   Install the axle shaft housing carrier bushing bolt.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 15.

   Install the upper front axle carrier mounting bushing bolt.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 16.

   Remove the stand. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

1. 17.

   Install the front drive shaft. Refer to: Front Driveshaft .

4x2/4x4

1. 18.


   NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

   Tighten the transmission mount-to-crossmember nuts.

   Torque

   : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

1. 19.


   • Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the new bolts.
   • Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

     Torque

     : 46 lb.ft (63 Nm)

   • Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

     Torque

     : 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

1. 20.

   If equipped, install the skid plate and bolts.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 21.

   If equipped, install the underbody shield and fasteners.

   Torque

   : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

1. 22.

   If equipped, install the underbody shield and fasteners.

   Torque

   : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

1. 23.

   Install the following items:
   • Refer to: CHARGE AIR COOLER (CAC) OUTLET PIPE .
   • LH CAC intake pipe. Refer to: CHARGE AIR COOLER (CAC) INTAKE PIPE .
   • Refer to: AIR CLEANER OUTLET PIPE LH .
   • Refer to: AIR CLEANER .

1. 24.

   Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

1. 25.

   Check the exhaust system for leaks.
