Cylinder Head LH: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

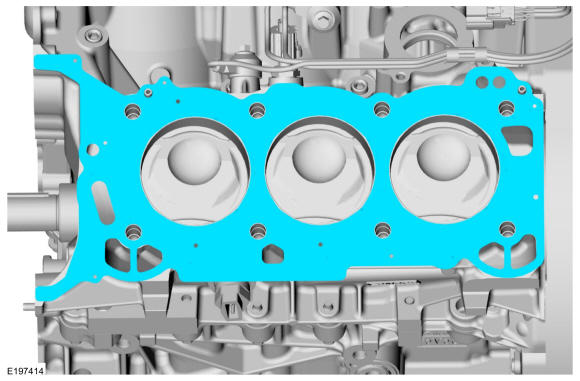

Install a new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY

2.
- Install the cylinder head.
- Install new cylinder head bolts.
  Torque

  : Stage 1: 177 lb.in (20 Nm) Stage 2: Loosen: 2 turn(s) Stage 3: 37 lb.ft (50 Nm) Stage 4: 180 °

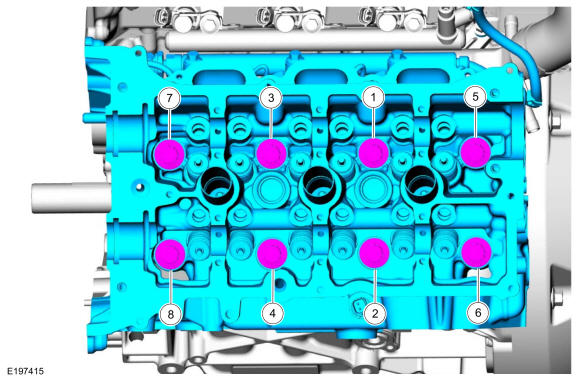

Fig 1: LH Cylinder Head Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

3.

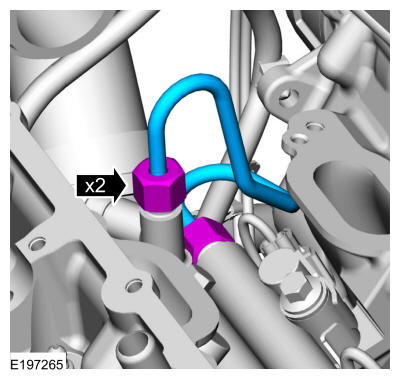

Install a new fuel rail-to-fuel rail high-pressure fuel tube and finger tighten the flare nuts.
- Final tighten the flare nuts.
  Torque

  : Stage 1: 62 lb.in (7 Nm) Stage 2: 89 lb.in (10 Nm) Stage 3: 25 °

Courtesy of FORD MOTOR COMPANY

4.
1. 1.

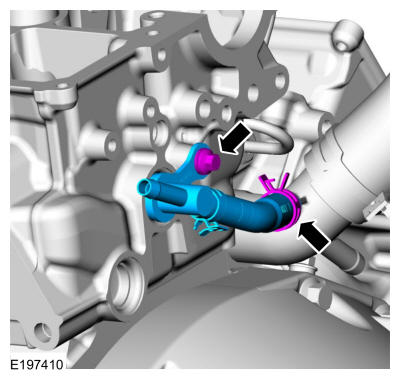

  Install the cylinder head to coolant outlet connector hose assembly and the bolt.
  Torque

  : 89 lb.in (10 Nm)
1. 2.

  Connect the coolant hose and the clamp. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

5.

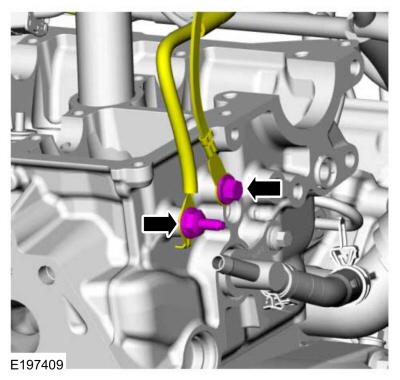

Install the wiring harness grounds, the bolt and the studbolt.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

6.

Install the following items:
- Refer to: Turbocharger LH .
- Refer to: Camshaft LH .
- Refer to: Intake Manifold .

7.

Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
