Crankshaft Rear Seal with Retainer Plate: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the flexplate. Refer to: Flexplate .

2.

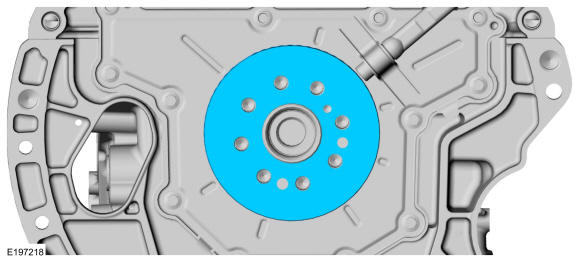

Remove the crankshaft sensor ring.

Courtesy of FORD MOTOR COMPANY

3.

Inspect the crankshaft sensor ring for damage. If the crankshaft sensor ring has been dropped or has any visual damage, it must be discarded.

Courtesy of FORD MOTOR COMPANY

4.

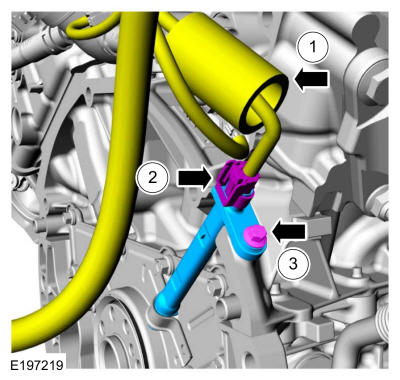

1. 1.

  Reposition the CKP sensor electrical connector insulator.
1. 2.

  Disconnect the CKP sensor electrical connector.
1. 3.

  Remove the bolt and the CKP sensor.

Courtesy of FORD MOTOR COMPANY

5.

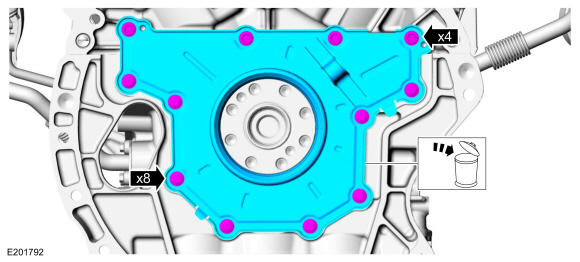

Remove the bolts and the crankshaft rear seal and retainer plate.
- Discard the crankshaft rear seal and retainer plate.

Courtesy of FORD MOTOR COMPANY

6.

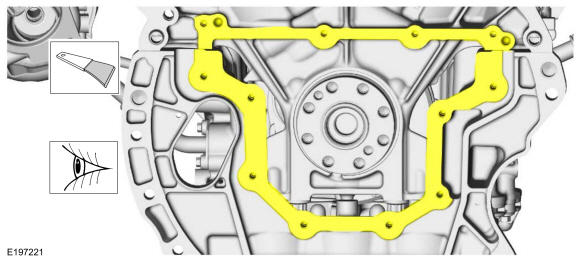

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

Clean and inspect the mating surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

Material

: Motorcraft ® Silicone Gasket Remover / ZC-30-A

Material

: Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Material

: Motorcraft ® Metal Surface Prep / ZC-31-B

Courtesy of FORD MOTOR COMPANY
