Section 675 (Engine - 2.7L ECOBOOST (238KW/324PS)): Installation: Engine

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s) / General Equipment

GFD39292Courtesy of FORD MOTOR COMPANY
 303-1246 Engine Spreader Bar TKIT-2006UF-FLM TKIT-2006UF-ROW
GFD39293Courtesy of FORD MOTOR COMPANY
 303-1634 Lift Eyes (2) TKIT-2014D-FL_ROW TKIT-2014D-ROW3
Floor Crane
Trolley Jack
Wooden Block

Materials

Name Specification
Motorcraft ® Multi-Purpose Grease Spray XL-5-A ESB-M1C93-B
Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil XO-5W30-QSP WSS-M2C946-A

  1. 1.

    1. 1.

      Inspect the engine mount-to-frame nut plate for thread damage.

    1. 2.

      If the nut plate is damaged, remove and discard the engine mount-to-frame nut plate.
    • Clean the engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.
GFD39164Courtesy of FORD MOTOR COMPANY

  1. 2.

    Lubricate the torque converter pilot hub with multi-purpose grease.

    Material

    : Motorcraft ® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

GFD39526Courtesy of FORD MOTOR COMPANY

  1. 3.

    1. 1.

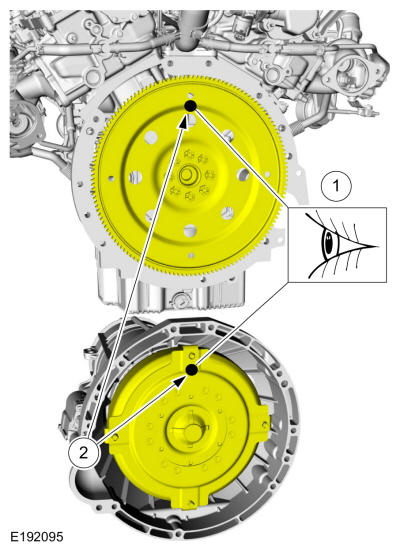

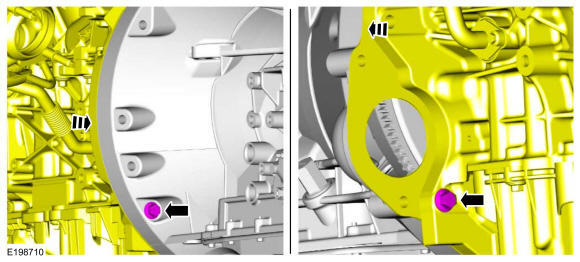

      Inspect the torque converter stud and flexplate for paint marks.

    1. 2.

      Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.
GFD39527Courtesy of FORD MOTOR COMPANY

  1. 4.

    Using the floor crane, position the engine in the engine compartment. Use the General Equipment: Floor Crane
GFD39335Courtesy of FORD MOTOR COMPANY

  1. 5.

    • Align the engine to the transmission and install the bolts.
    • Draw the engine and transmission together evenly using the bolts.

      Torque

      : 35 lb.ft (48 Nm)

GFD39528Courtesy of FORD MOTOR COMPANY

  1. 6.

    Remove the floor jack and the block of wood. Use the General Equipment: Trolley Jack Use the General Equipment: Wooden Block
GFD39328Courtesy of FORD MOTOR COMPANY

  1. 7.

    Install the LH engine mount and the new engine mount-to-frame bolts.

    Torque

    : 129 lb.ft (175 Nm)

GFD39529Courtesy of FORD MOTOR COMPANY

  1. 8.

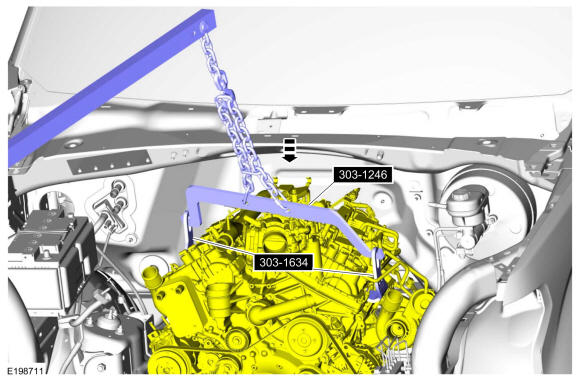

    Using the floor crane, lower the engine assembly into the installed position.

    1. 1.

      Remove the floor crane and chain. Use the General Equipment: Floor Crane

    1. 2.

      Remove Special Service Tool: 303-1246 Engine Spreader Bar., 303-1634 Lift Eyes (2).
GFD39530Courtesy of FORD MOTOR COMPANY

  1. 9.

    NOTE: Only use hand tools when installing the engine mount stud bolts or damage to the engine mount can occur.

    Install the RH engine mount studs.

    Torque

    : 22 lb.ft (30 Nm)

GFD39171Courtesy of FORD MOTOR COMPANY

  1. 10.

    NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

    Install the new RH engine mount nuts.

    Torque

    : 111 lb.ft (150 Nm)

GFD39172Courtesy of FORD MOTOR COMPANY

  1. 11.

    NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new LH engine mount through bolt.

    Torque

    : 258 lb.ft (350 Nm)

GFD39170Courtesy of FORD MOTOR COMPANY

  1. 12.

    NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Tighten the transmission mount-to-crossmember nuts.

    Torque

    : 85 lb.ft (115 Nm)

GFD39152Courtesy of FORD MOTOR COMPANY

  1. 13.

    Install the selector lever cable bracket and the LH bellhousing bolts.

    Torque

    : 35 lb.ft (48 Nm)

GFD39327Courtesy of FORD MOTOR COMPANY

  1. 14.

    Install the bracket and the bellhousing bolts.

    Torque

    : 35 lb.ft (48 Nm)

GFD39326Courtesy of FORD MOTOR COMPANY

  1. 15.

    If equipped, attach the 4x4 vent hose retainer.

    Torque

    : 35 lb.ft (48 Nm)

GFD39325Courtesy of FORD MOTOR COMPANY

  1. 16.

    Install the RH side bellhousing bolt.

    Torque

    : 35 lb.ft (48 Nm)

GFD39324Courtesy of FORD MOTOR COMPANY

  1. 17.

    Install the lower bellhousing bolt.

    Torque

    : 35 lb.ft (48 Nm)

GFD39323Courtesy of FORD MOTOR COMPANY

  1. 18.

    NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Install the new torque converter nuts.

    Torque

    : 30 lb.ft (40 Nm)

GFD39531Courtesy of FORD MOTOR COMPANY

  1. 19.

    Install the access cover and the retainers.
GFD39321Courtesy of FORD MOTOR COMPANY

  1. 20.

    NOTE: Inspect the case and make sure the old transmission fluid cooler tube O-rings are not stuck in the case.
    NOTE: Install new transmission fluid cooler tube O-rings on the ends of the transmission fluid cooler tubes prior to installing.

    Install new transmission fluid cooler tube O-rings on the transmission fluid cooler tubes.

GFD39532Courtesy of FORD MOTOR COMPANY

  1. 21.

    1. 1.

      Position back the transmission cooler fluid cooler tubes and attach the retainer.

    1. 2.

      Install the new transmission fluid cooler tube bracket bolt.

      Torque

      : 22 lb.ft (30 Nm)

GFD39221Courtesy of FORD MOTOR COMPANY

  1. 22.

    If equipped, install the selector lever cable splash shield and nut.

    Torque

    : 106 lb.in (12 Nm)

GFD39320Courtesy of FORD MOTOR COMPANY

  1. 23.

    Install the transmission fluid cooler tube bracket and nut.

    Torque

    : 106 lb.in (12 Nm)

GFD39210Courtesy of FORD MOTOR COMPANY

  1. 24.

    1. 1.

      Push the transmission electrical connector in to connect.

    1. 2.

      Rotate the transmission electrical connector clockwise.

    1. 3.

      Attach the wiring harness retainers.

    1. 4.

      Connect the transmission fluid auxiliary pump electrical connector.
GFD39533Courtesy of FORD MOTOR COMPANY

  1. 25.

    If equipped, attach the 4x4 wiring harness retainers.
GFD39318Courtesy of FORD MOTOR COMPANY

  1. 26.

    Connect the RH catalyst monitor sensor and HO2S electrical connectors.
GFD39317Courtesy of FORD MOTOR COMPANY

  1. 27.

    Connect the LH catalyst monitor sensor and HO2S electrical connectors.
GFD39316Courtesy of FORD MOTOR COMPANY

  1. 28.

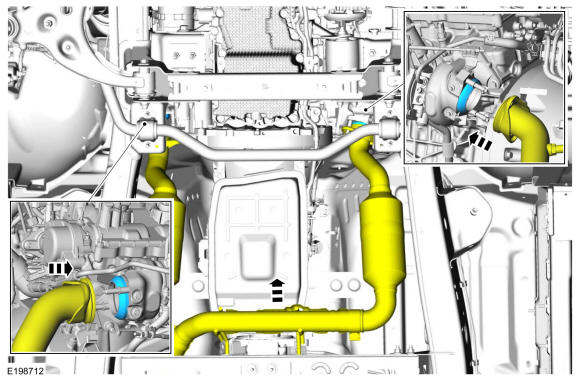

    Install new exhaust gaskets.
    • Position the catalytic converters forward into the installed position.
GFD39534Courtesy of FORD MOTOR COMPANY

  1. 29.

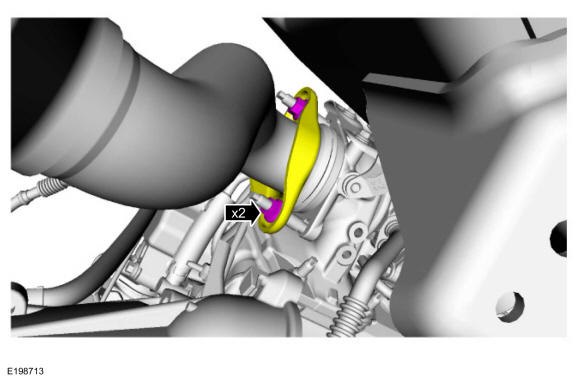

    Position the flange onto the studs and loosely install new RH catalytic converter nuts.
GFD39535Courtesy of FORD MOTOR COMPANY

  1. 30.

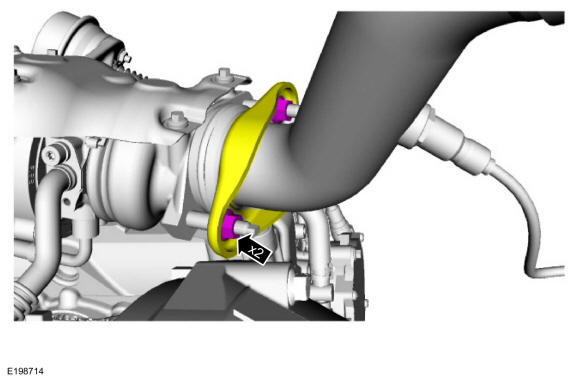

    Position the flange onto the studs and loosely install new LH catalytic converter nuts.
GFD39536Courtesy of FORD MOTOR COMPANY

  1. 31.

    Evenly tighten the nuts.

    Torque

    : 30 lb.ft (40 Nm)

GFD39537Courtesy of FORD MOTOR COMPANY

  1. 32.

    Evenly tighten the nuts.

    Torque

    : 30 lb.ft (40 Nm)

GFD39538Courtesy of FORD MOTOR COMPANY

  1. 33.

    Position the exhaust Y-pipe dual catalytic converter onto the exhaust intermediate pipe and install new bolts.
    • Evenly tighten the bolts.

      Torque

      : 46 lb.ft (63 Nm)

GFD39176Courtesy of FORD MOTOR COMPANY

  1. 34.

    Install the following items:

  1. 35.

    1. 1.

      Install the pin-type retainer.

    1. 2.

      Install the ground wire and bolt.

      Torque

      : 18 lb.ft (25 Nm)

GFD39208Courtesy of FORD MOTOR COMPANY

  1. 36.

    1. 1.

      Install the wiring harness retainer nut.

      Torque

      : 106 lb.in (12 Nm)

    1. 2.

      Install the pin-type retainer.
GFD39209Courtesy of FORD MOTOR COMPANY

  1. 37.

    Attach the wiring harness retainer located below the generator to the cylinder block.
GFD39312Courtesy of FORD MOTOR COMPANY

  1. 38.

    WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    1. 1.

      Connect the steering column shaft u-joint to the steering gear.

    1. 2.

      Install the new steering column shaft bolt.

      Torque

      : 22 lb.ft (30 Nm)

GFD38957Courtesy of FORD MOTOR COMPANY

  1. 39.

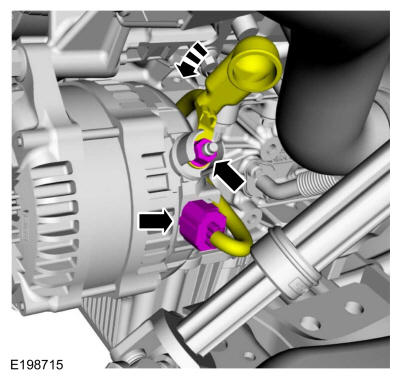

    • Install the wiring terminal and nut.

      Torque

      : 150 lb.in (17 Nm)

    • Position the protective cover.
    • Connect the generator electrical connector.
GFD39539Courtesy of FORD MOTOR COMPANY

  1. 40.

    • Connect the A/C compressor electrical connector.
    • Attach the wiring harness retainers.
GFD39310Courtesy of FORD MOTOR COMPANY

  1. 41.

    • Install new O-ring seals and gaskets.
    • Connect the A/C tubes and install the nuts.

      Torque

      : 133 lb.in (15 Nm)

GFD39309Courtesy of FORD MOTOR COMPANY

  1. 42.

    Connect the EVAP tube quick release coupling. Refer to: QUICK RELEASE COUPLING
GFD39308Courtesy of FORD MOTOR COMPANY

  1. 43.

    Connect the high-pressure fuel pump fuel feed tube quick release coupling. Refer to: QUICK RELEASE COUPLING
GFD39307Courtesy of FORD MOTOR COMPANY

  1. 44.

    NOTE: When removing or installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

    Install the high-pressure fuel pump noise insulator.

GFD39306Courtesy of FORD MOTOR COMPANY

  1. 45.

    1. 1.

      Install the MAP sensor and the bolt.

      Torque

      : 62 lb.in (7 Nm)

    1. 2.

      Position the vacuum harness pressure sensor and install the bolt.

      Torque

      : 62 lb.in (7 Nm)

    1. 3.

      Connect the wiring harness electrical connectors.
GFD39305Courtesy of FORD MOTOR COMPANY

  1. 46.

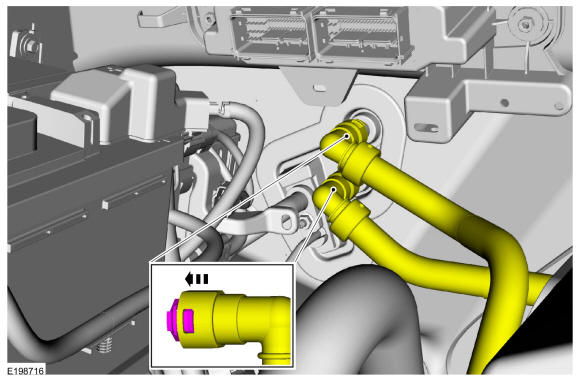

    Connect the heater core inlet and outlet hoses.
GFD39540Courtesy of FORD MOTOR COMPANY

  1. 47.

    If equipped, attach 4x4 wiring harness retainer to the rear RH valve cover stud bolt.
GFD39303Courtesy of FORD MOTOR COMPANY

  1. 48.

    Connect the engine wiring harness electrical connectors.
GFD39273Courtesy of FORD MOTOR COMPANY

  1. 49.

    Attach the wiring harness retainer, the ground wire terminals and install the nuts.

    Torque

    : 106 lb.in (12 Nm)

GFD39302Courtesy of FORD MOTOR COMPANY

  1. 50.

    1. 1.

      Install the vacuum tube assembly and connect the vacuum tubes.

    1. 2.

      Connect the quick release couplings. Refer to: QUICK RELEASE COUPLING .
GFD39301Courtesy of FORD MOTOR COMPANY

  1. 51.

    1. 1.

      Connect the crankcase pressure sensor electrical connector.

    1. 2.

      Connect the PCV tube quick release coupling. Refer to: QUICK RELEASE COUPLING .
GFD39183Courtesy of FORD MOTOR COMPANY

  1. 52.

    Install the EVAP tube assembly and connect the quick release coupling. Refer to: QUICK RELEASE COUPLING .
GFD39300Courtesy of FORD MOTOR COMPANY

  1. 53.

    Install the PCV tube and connect the quick release couplings. Refer to: QUICK RELEASE COUPLING .
GFD39299Courtesy of FORD MOTOR COMPANY

  1. 54.

    Install the coolant hoses and clamps.
GFD39298Courtesy of FORD MOTOR COMPANY

  1. 55.

    Install the following items:

  1. 56.

    1. 1.

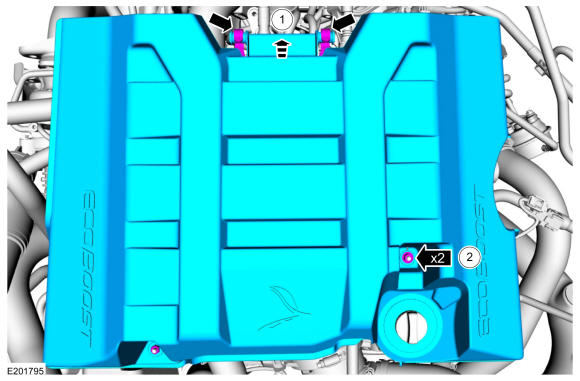

      Slide the engine appearance cover into the retaining bracket.

    1. 2.

      Install the nuts.

      Torque

      : 44 lb.in (5 Nm)

GFD39198Courtesy of FORD MOTOR COMPANY

  1. 57.

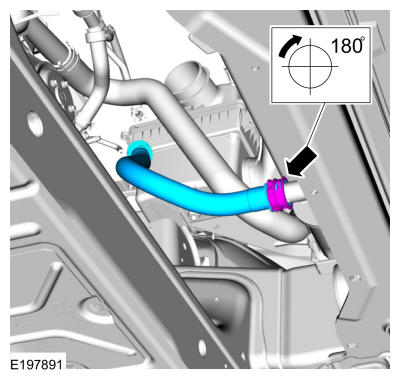

    Install the TC bypass tube and rotate the retaining ring clockwise 180 degrees.
GFD39147Courtesy of FORD MOTOR COMPANY

  1. 58.

    • Install a new O-ring seal and gasket seal.
    • Connect the A/C tube and install the nut.

      Torque

      : 133 lb.in (15 Nm)

GFD39297Courtesy of FORD MOTOR COMPANY

  1. 59.

    Connect the A/C pressure transducer electrical connector.
GFD39296Courtesy of FORD MOTOR COMPANY

  1. 60.

    Install the following items:

  1. 61.

    NOTE: Align the index marks made during hood removal.

    Position the hood and install the nuts.

    Torque

    : 18 lb.ft (25 Nm)

GFD39295Courtesy of FORD MOTOR COMPANY

  1. 62.

    Install the RH and LH fender splash shields. Refer to: Fender Splash Shield .

  1. 63.

    If equipped, install the skid plate and bolts.

    Torque

    : 30 lb.ft (40 Nm)

GFD39149Courtesy of FORD MOTOR COMPANY

  1. 64.

    If equipped, install the underbody shield and fasteners.

    Torque

    : 71 lb.in (8 Nm)

GFD38415Courtesy of FORD MOTOR COMPANY

  1. 65.

    If equipped, install the underbody shield and fasteners.

    Torque

    : 30 lb.ft (40 Nm)

GFD38663Courtesy of FORD MOTOR COMPANY

  1. 66.

    If equipped, install the skid plate and bolts.

    Torque

    : 30 lb.ft (40 Nm)

GFD38662Courtesy of FORD MOTOR COMPANY

  1. 67.

    Install the front wheels and tires. Refer to: Wheel and Tire .

  1. 68.

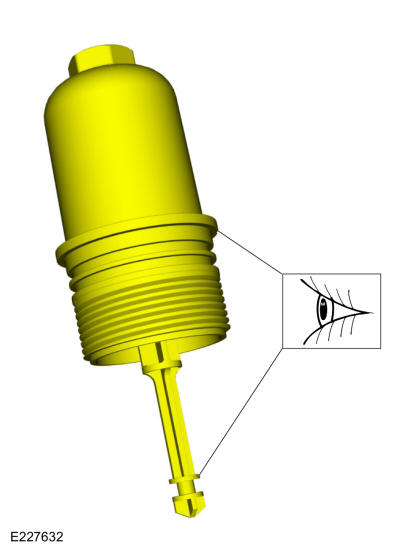

    NOTE: If the filter housing stem is damaged or missing the oil will flow through the reservoir drain port and a loss  of engine oil pressure will occur.

    Inspect the oil filter housing and stem for damage including cracks or separation of the stem from the housing. If damaged, a new oil filter housing assembly must be installed.

GFD39067Courtesy of FORD MOTOR COMPANY

  1. 69.

      NOTE: Failure to install new oil filter housing-to-engine front cover seals may result in oil leakage.

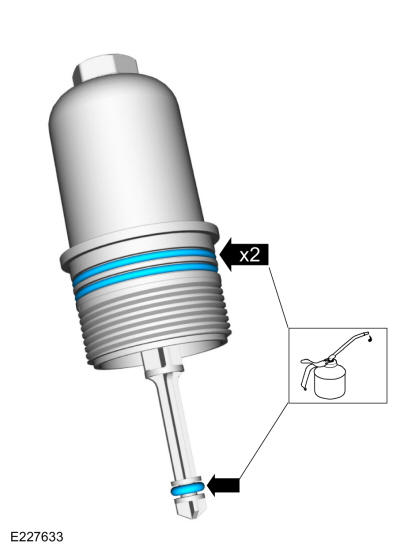

    • Install new oil filter housing-to-engine front cover seals and lubricate with clean engine oil.

      Material

      : Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

      NOTE: Failure to install a new oil filter housing stem-to-oil reservoir drain port seal will result with the oil flowing through the reservoir drain port and a loss  of engine oil pressure.
    • Install a new oil filter housing stem-to-oil reservoir drain port seal and lubricate with clean engine oil.

      Material

      : Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

GFD39068Courtesy of FORD MOTOR COMPANY

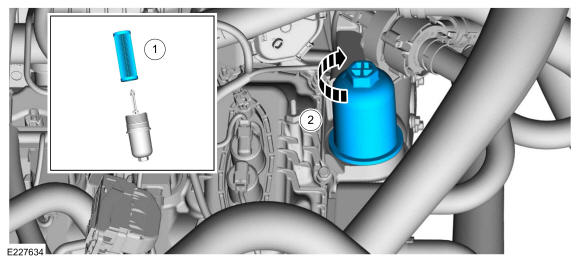

  1. 70.

    1. 1.

      Install a new oil filter element.

    1. 2.

      Install the oil filter housing.

      Torque

      : 18 lb.ft (24 Nm)

GFD39069Courtesy of FORD MOTOR COMPANY

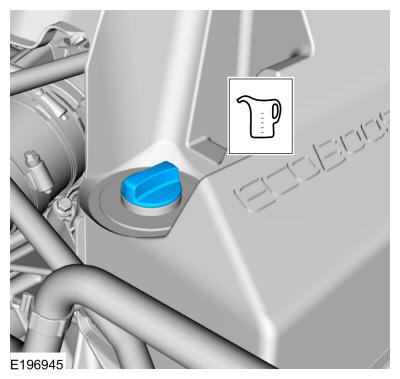

  1. 71.

    Fill the engine with clean engine oil. Refer to: Specifications .

    Material

    : Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

GFD39070Courtesy of FORD MOTOR COMPANY

  1. 72.

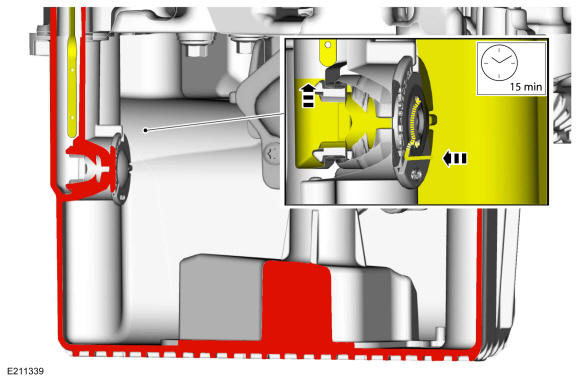

    After filling the engine with oil, the oil must flow from the main chamber of the oil pan, through a check valve into the smaller side chamber to correctly register the oil level on the oil level indicator. This may take up to 15 minutes.
GFD39061Courtesy of FORD MOTOR COMPANY

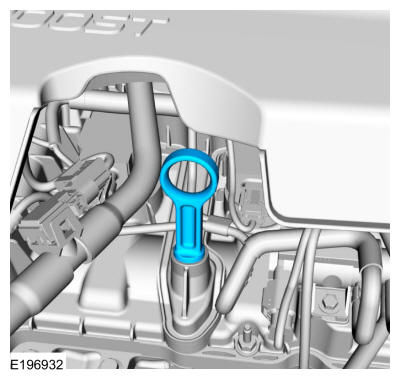

  1. 73.

    Check the oil level and adjust as necessary.
GFD39205Courtesy of FORD MOTOR COMPANY

  1. 74.

    Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

  1. 75.

    Fill and bleed the engine cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING

  1. 76.

    Check the transmission fluid level. Refer to: Transmission Fluid Level Check .

  1. 77.

    Start and check the exhaust system for leaks.

  1. 78.

    After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
scientia non olet · About LEMON Manuals
