Steering Column Shrouds: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

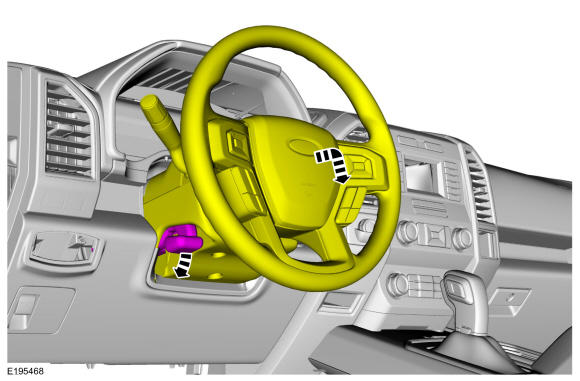

Fully extend and lower the steering column.

Courtesy of FORD MOTOR COMPANY

2.

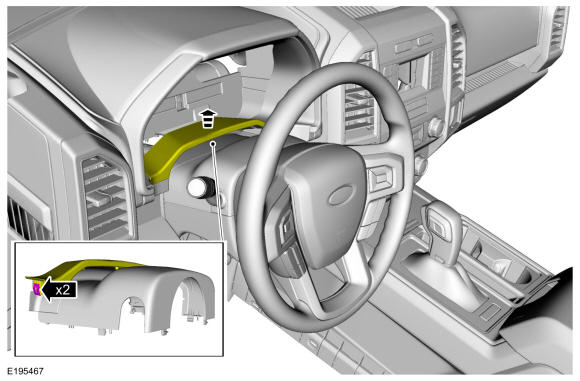

Release the upper gap hider from the IPC and position aside.

Courtesy of FORD MOTOR COMPANY

3.

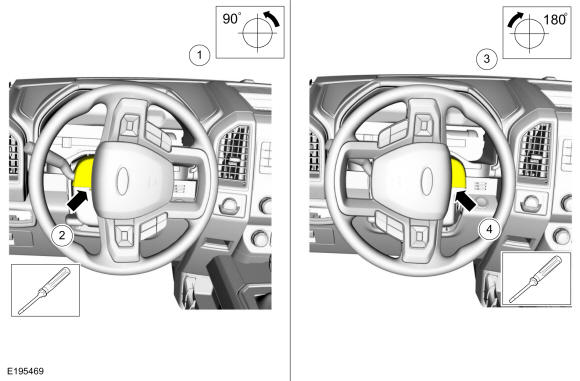

Release the retainers.
- 1.

  Rotate the steering wheel 90 degrees to the left.
- 2.

  Release the LH retainer.
  Use the General Equipment: Flat Headed Screw Driver
- 3.

  Rotate the steering wheel 180 degrees to the right.
- 4.

  Release the RH retainer.
  Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY

4.

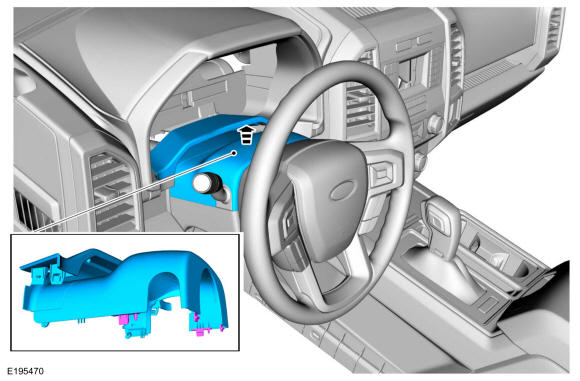

Release the outer clips on each side and remove the steering column upper shroud.

Courtesy of FORD MOTOR COMPANY

5.

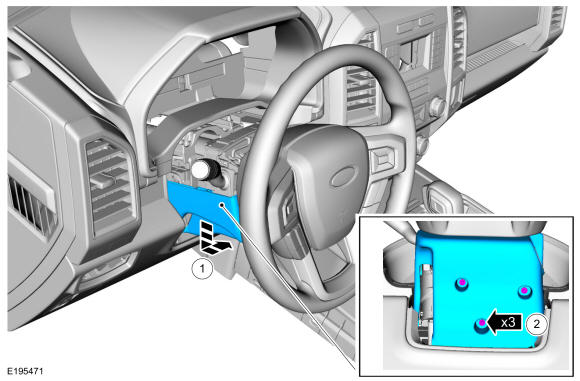

Remove the steering column lower shroud.
- 1.

  Remove the screws.
- 2.

  Remove the steering column lower shroud.

Courtesy of FORD MOTOR COMPANY
