Loadspace Trim Panel - SuperCab/SuperCrew: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
SuperCrew shown in illustration.
NOTE:
Removal steps in this procedure may contain installation details.
SuperCab
- 4.NOTE: The striker should be in its lowest position for the latch to engage.
Lower the LH seat backrest.
- 1.
Pull the backrest release strap and release the latch from the striker.
- 2.
Lower the backrest.
- 1.
- 5.
On both sides, remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel - SuperCab .
SuperCrew
- 6.NOTE: The seat backrest latch is only accessible when the seat cushion is raised.NOTE: The striker should be in its lowest position for the latch to engage.
Lower the LH rear seat backrest.
- 1.
Raise the seat cushion.
- 2.
Release the backrest latch.
- 3.
Lower the backrest down.
- 1.
- 7.
On both sides, remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel .
All vehicles
- 9.

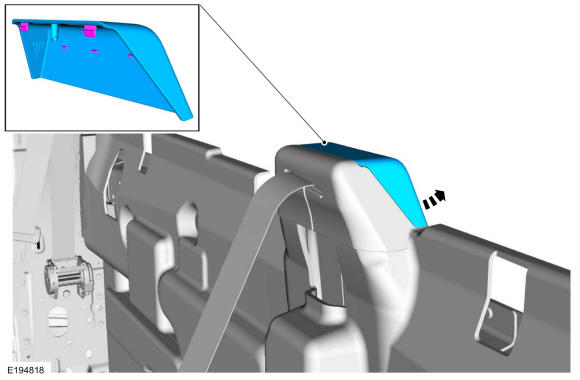

If equipped. Remove the center seatbelt front guide cover.- 1.

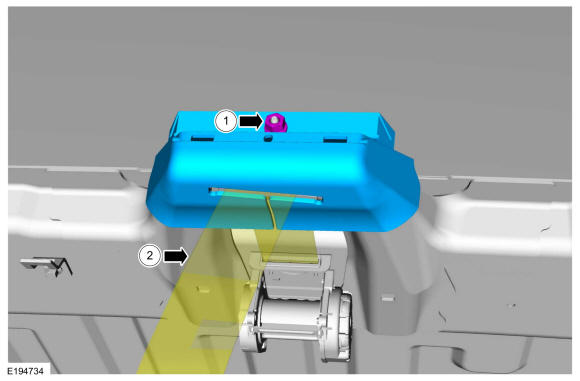

Remove the retainer.Torque
: 42 lb.in (4.8 Nm)
- 2.
Position the seatbelt through the slot and remove the cover.
- 1.
- 10.
If equipped, remove the subwoofer speaker. Refer to: Subwoofer Speaker - Vehicles With: Sony Audio System.
- 11.

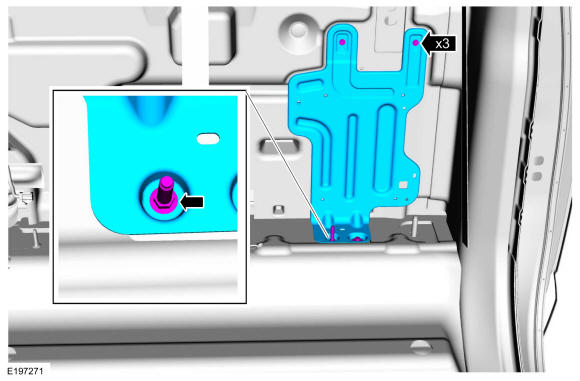

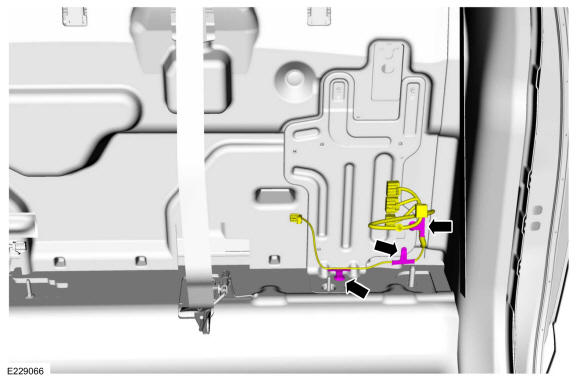

If equipped, remove the DSP. Refer to: Audio Digital Signal Processing (DSP) Module - Vehicles With: Sony Audio System.
- 14.

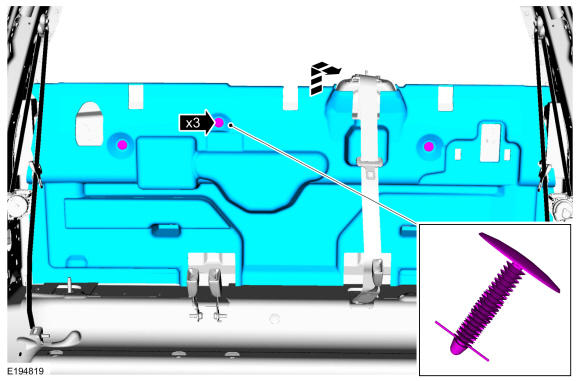

Remove the loadspace trim panel.- 1.
Remove the retainers.
- 2.
Position aside the rear safety belt and remove the loadspace trim panel.
- 1.
