Loadspace Trim Panel - Regular Cab: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

On both sides, remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel - Regular Cab .

2.

NOTE: Front outboard seats removed for clarity.

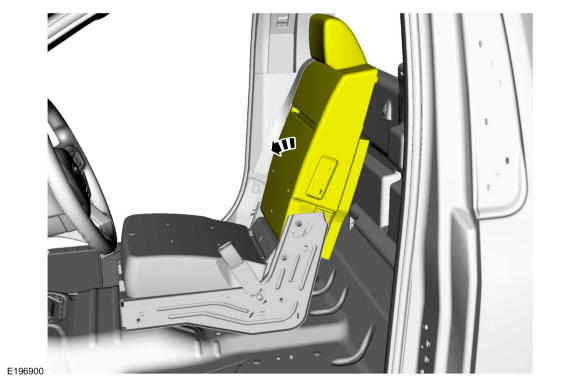

If equipped. Position the center seat backrest forward.

GFD42772

Courtesy of FORD MOTOR COMPANY

3.

If equipped. Remove the center seatbelt rear guide cover.

GFD42773

Courtesy of FORD MOTOR COMPANY

4.

If equipped. Remove the center seatbelt front guide cover.
- 1.

  Remove the retainer.
  Torque

  : 42 lb.in (4.8 Nm)
- 2.

  Position the seatbelt through the slot and remove the cover.

GFD42774

Courtesy of FORD MOTOR COMPANY

5.

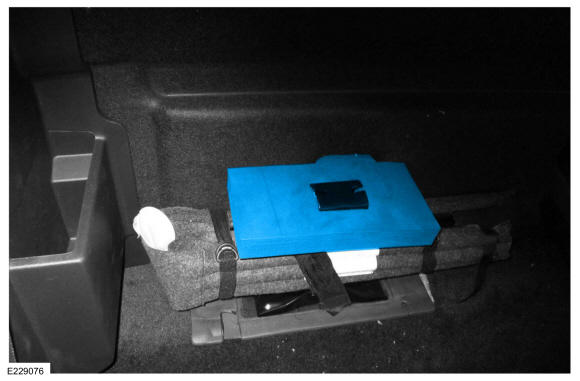

Remove the vehicle jack foam insulator.

GFD42775

Courtesy of FORD MOTOR COMPANY

6.

Release the vehicle jack hook-and-loop strap.

GFD42776

Courtesy of FORD MOTOR COMPANY

7.

Remove the vehicle jack assembly.

GFD42777

Courtesy of FORD MOTOR COMPANY

8.

Remove the retainers and the loadspace trim panel.

GFD42778

Courtesy of FORD MOTOR COMPANY
