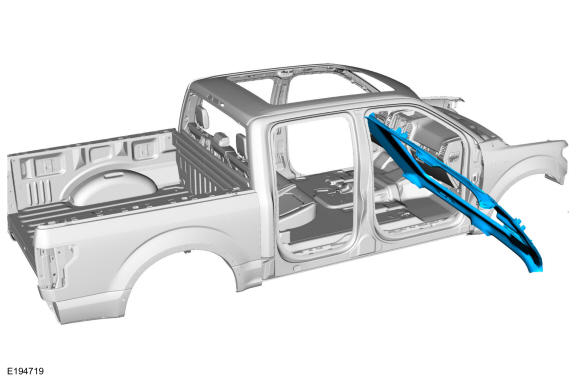

Headliner - SuperCrew: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Steering wheel should be in the full inward and upward position for headliner removal.
- 1.
Remove the following items:- 1.
On both sides, remove the A-pillar trim panels. Refer to: A-Pillar Trim Panel .
- 2.
On both sides, remove the B-pillar trim panels. Refer to: B-Pillar Trim Panel - SuperCrew .
- 3.
On both sides, remove the C-pillar trim panels. Refer to: C-Pillar Trim Panel .
- 4.
On both sides, remove the front seats. Refer to: Front Seat .
- 5.
If equipped, remove the front center seat. Refer to: Front Center Seat .
- 6.
If equipped, remove the floor console. Refer to: Floor Console .
- 7.
Remove the passenger side front door. Refer to: Front Door - Regular Cab/SuperCrew .
- 1.
- 2.NOTE: LH side shown in illustration, RH side similar.
On both sides. Remove the sun visor.
- 1.
Remove the retainer cover.
- 2.
Remove the retainer.
- 3.
Remove the sun visor.
- 4.
If equipped. Disconnect the electrical connector.
- 1.
- 3.NOTE: LH side shown in illustration, RH side similar.
On both sides. Remove the retainers and the sun visor clips.
- 7.
On both sides. Remove and discard the garment hooks.- 1.
Open the garment hook retainer cover.
- 2.
Remove the retainer and the garment hook.
- 1.
- 9.NOTE: The seat backrest latch is only accessible when the seat cushion is raised.NOTE: The striker should be in its lowest position for the latch to engage.
Fold the LH rear seat backrest down.
- 1.
Raise the seat cushion.
- 2.
Release the backrest latch.
- 3.
Fold the backrest down.
- 1.
