C-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown in illustration, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: The seat is removed for clarity.

NOTE: During installation, make sure to attach the scuffplate trim panels at the lower B-pillar trim panel first.

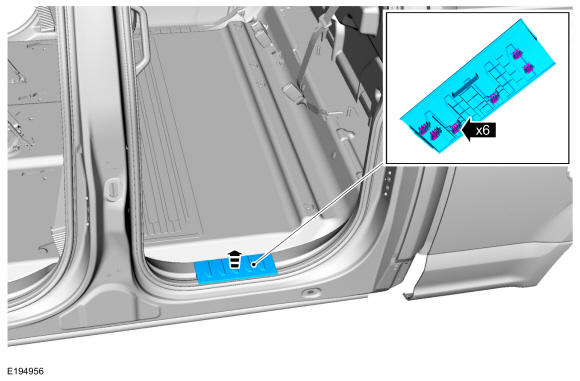

Release the clips and remove the rear door scuff plate trim panel.

GFD42735

Courtesy of FORD MOTOR COMPANY

2.

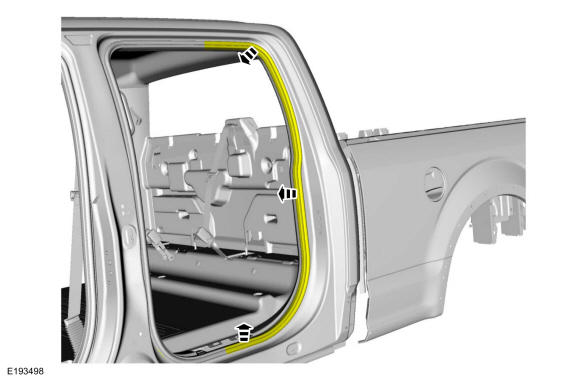

Position aside the rear door weatherstrip.

GFD42736

Courtesy of FORD MOTOR COMPANY

Vehicles without Inflatable Seatbelts

3.

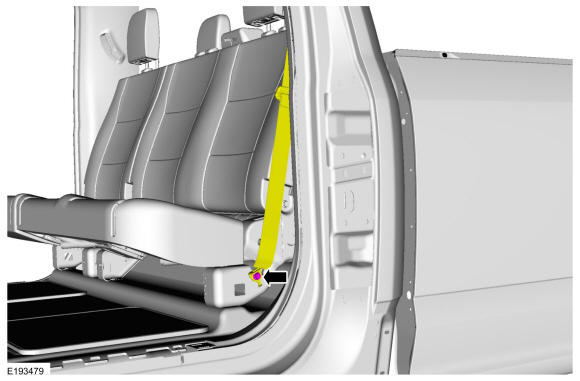

Remove the bolt and the position aside the seatbelt.
Torque

: 30 lb.ft (40 Nm)

GFD42721

Courtesy of FORD MOTOR COMPANY

Vehicles with Inflatable Seatbelts

4.

Remove the bolt cover.

GFD42737

Courtesy of FORD MOTOR COMPANY

5.

Remove the bolt and separate the seatbelt.
Torque

: 44 lb.in (5 Nm)

GFD42738

Courtesy of FORD MOTOR COMPANY

All vehicles

6.

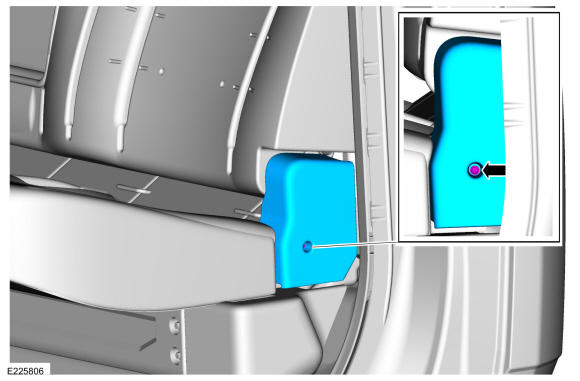

Remove the retainer and the outboard cushion side shield.

GFD42739

Courtesy of FORD MOTOR COMPANY

7.

NOTE: If the tether clip is damaged during removal, a new clip must be installed prior to installation of the panel.

NOTE: During installation make sure to install the clip by the scuffplate trim panel first and work upward on the trim panel to connect the other clips.

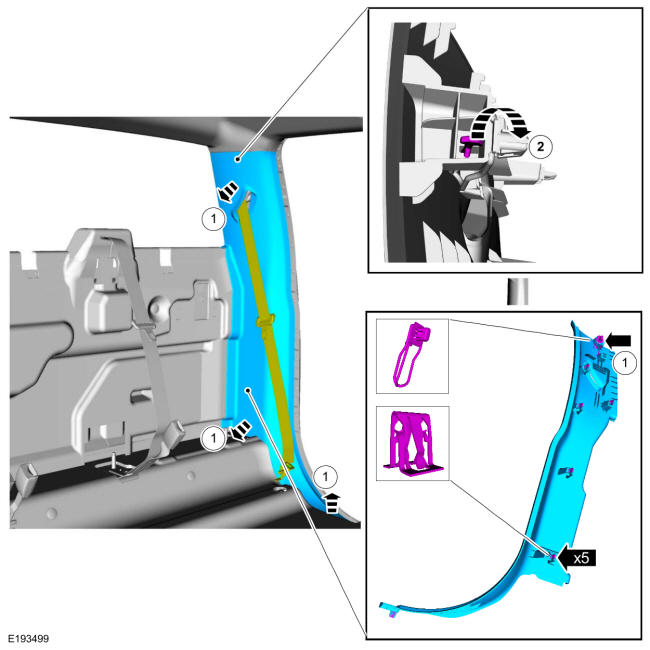

Remove the C-pillar trim panel.
- 1.

  Release the clips.
- 2.

  Release the tether clip and remove the C-pillar trim panel.

GFD42740

Courtesy of FORD MOTOR COMPANY
