B-Pillar Trim Panel - SuperCrew: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown in illustration, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Upper and Lower B-Pillar Trim Panels

1.

Remove the front door scuff plate trim panel.
- 1.

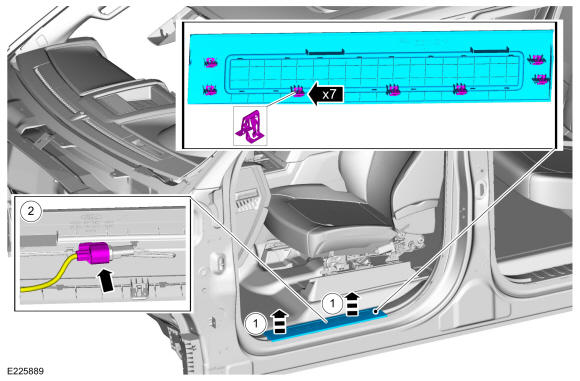

  Release the clips and remove the front door scuff plate trim panel.
- 2.

  If equipped. Disconnect the electrical connector.

GFD42723

Courtesy of FORD MOTOR COMPANY

2.

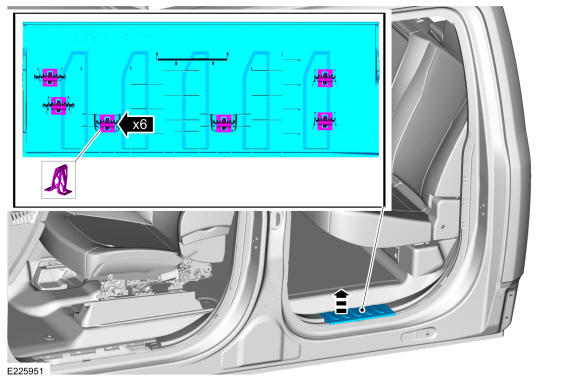

Release the clips and remove the rear door scuff plate trim panel.

GFD42724

Courtesy of FORD MOTOR COMPANY

3.

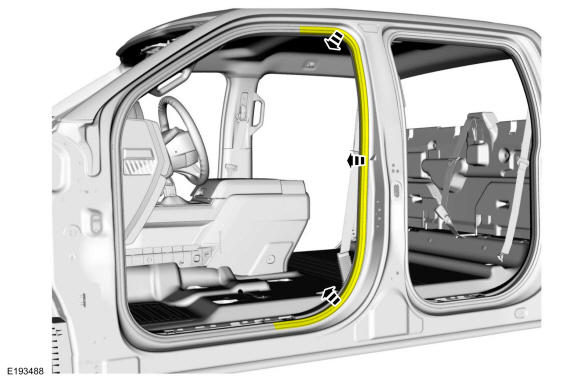

Position aside the front door weatherstrip.

GFD42725

Courtesy of FORD MOTOR COMPANY

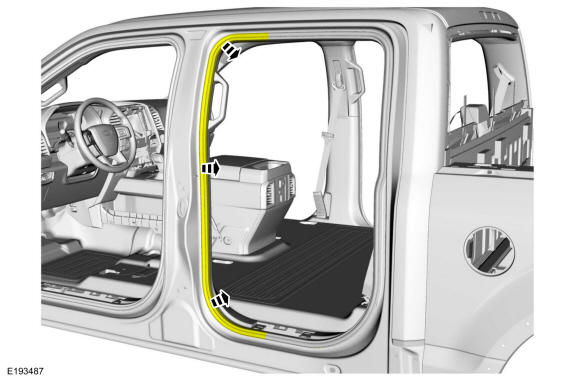

4.

Position aside the rear door weatherstrip.

GFD42726

Courtesy of FORD MOTOR COMPANY

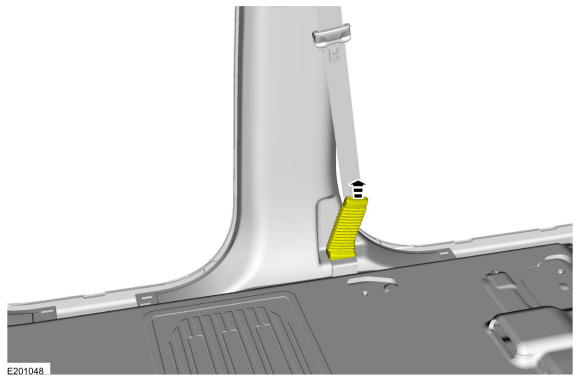

5.

Release the clips and disengage the safety belt pretensioner boot from the pretensioner bezel.

GFD42727

Courtesy of FORD MOTOR COMPANY

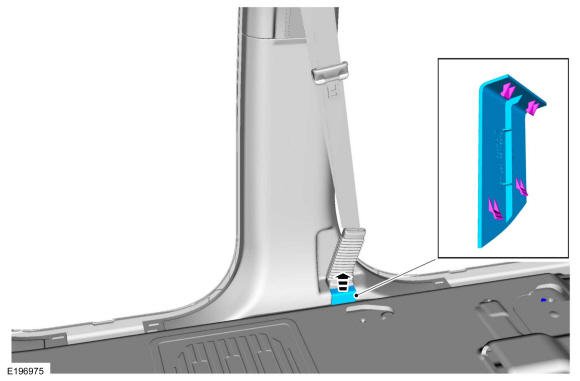

6.

Remove the pretensioner bezel.

GFD42728

Courtesy of FORD MOTOR COMPANY

7.

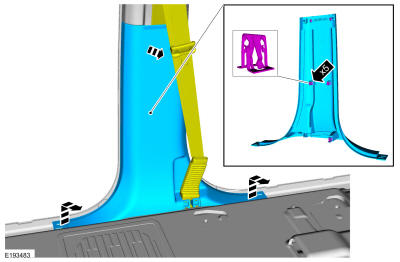

Release the clips and remove the lower B-pillar trim panel.

GFD42729

Courtesy of FORD MOTOR COMPANY

Upper B-Pillar Trim Panel

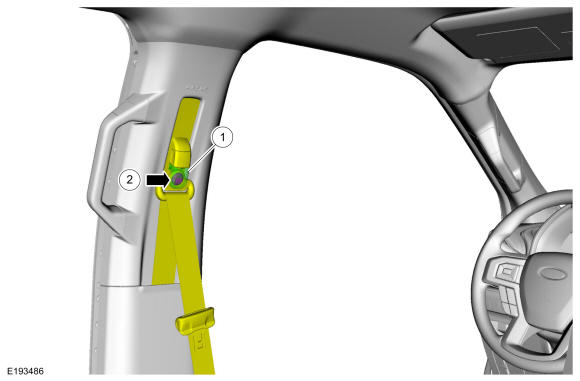

8.

Remove the safety belt D-ring bolt and position aside the front safety belt.
- 1.

  Remove the safety belt D-ring trim cover.
- 2.

  Remove the safety belt D-ring bolt and position aside the front safety belt.
  Torque

  : 30 lb.ft (40 Nm)

GFD42730

Courtesy of FORD MOTOR COMPANY

9.

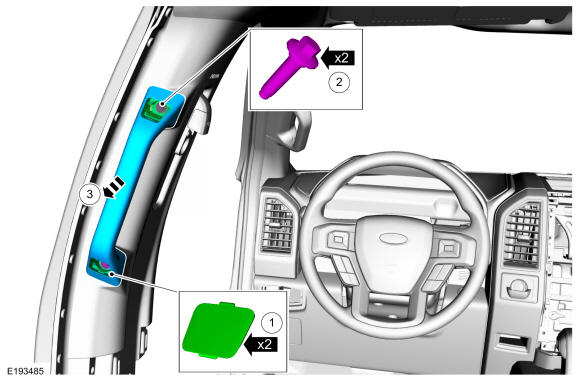

Remove the assist handle.
- 1.

  Remove the assist handle bolt covers.
- 2.

  Remove the bolts.
  Torque

  : 106 lb.in (12 Nm)
- 3.

  Remove the assist handle.

GFD42731

Courtesy of FORD MOTOR COMPANY

10.

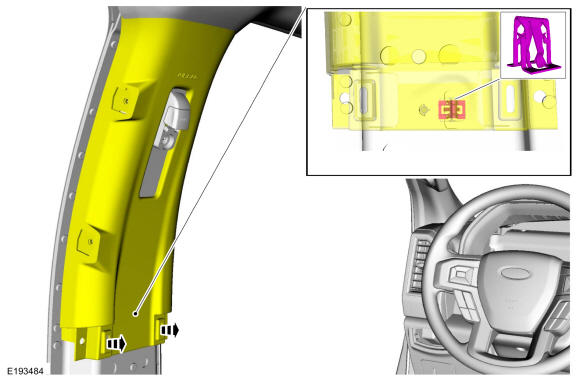

Release the clips.

GFD42732

Courtesy of FORD MOTOR COMPANY

11.

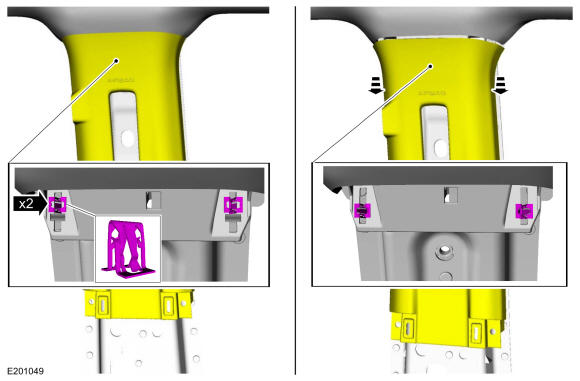

Pull down on the upper B-pillar trim panel.

GFD42733

Courtesy of FORD MOTOR COMPANY

12.

NOTE: The trim panel must be positioned downward to allow the upper clips to release correctly. Failure to follow this may cause damage to the trim panel.

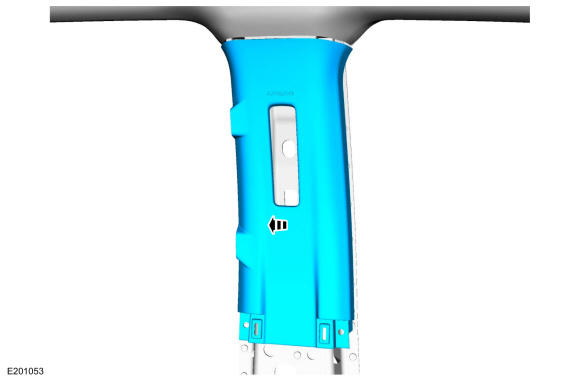

Remove the upper B-pillar trim panel.

GFD42734
