B-Pillar Trim Panel - SuperCab: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown in illustration, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: The seat is removed for clarity.

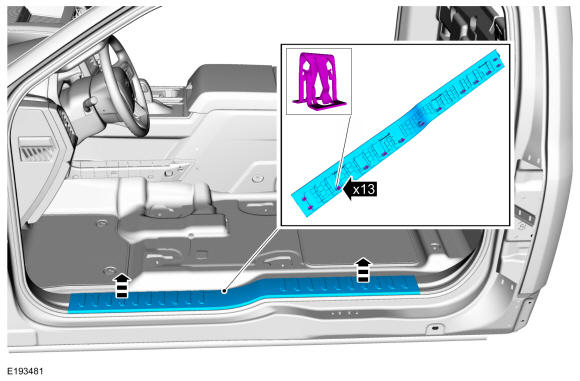

Release the clips and remove the scuff plate trim panel.

Courtesy of FORD MOTOR COMPANY

2.

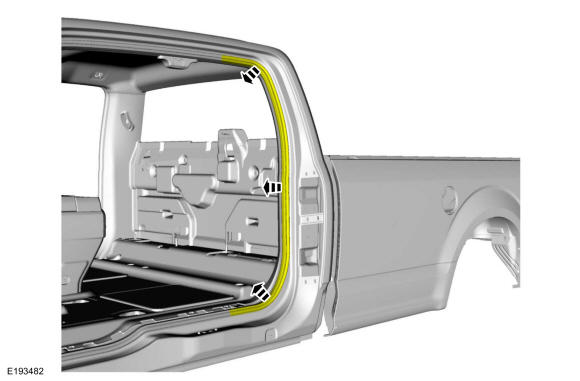

Position aside the rear door weatherstrip.

Courtesy of FORD MOTOR COMPANY

3.

Remove the bolt and position aside the seatbelt.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

4.

NOTE: If the tether clip is damaged during removal, a new clip must be installed prior to installation of the panel.

NOTE: During installation make sure to install the clip by the scuffplate trim panel first and work upward on the trim panel to connect the other clips.

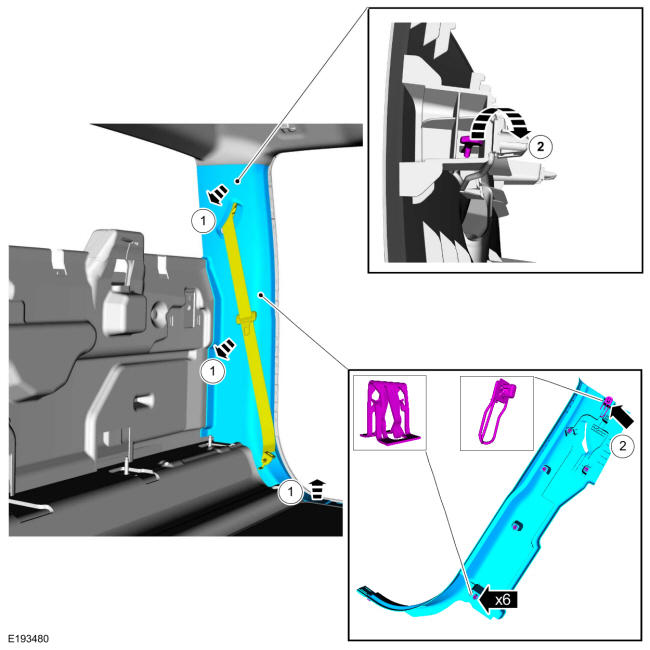

Remove the B-pillar trim panel.
- 1.

  Release the clips.
- 2.

  Release the tether clip and remove the B-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
