B-Pillar Trim Panel - Regular Cab: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown in illustration, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Upper and Lower B-Pillar Trim Panels

1.

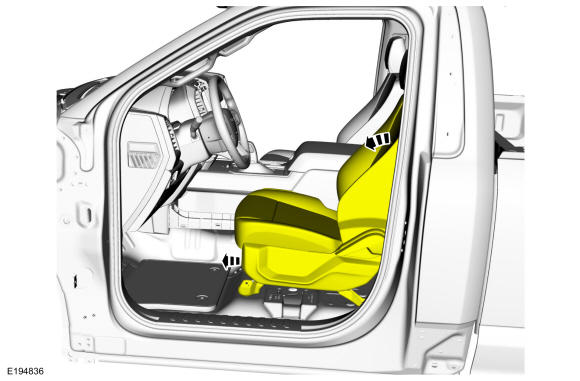

Position the seat and the backrest fully forward.

GFD42709

Courtesy of FORD MOTOR COMPANY

2.

NOTE: The seat is removed for clarity.

NOTE: During installation, make sure to attach the scuffplate trim panel at the lower B-pillar trim panel first.

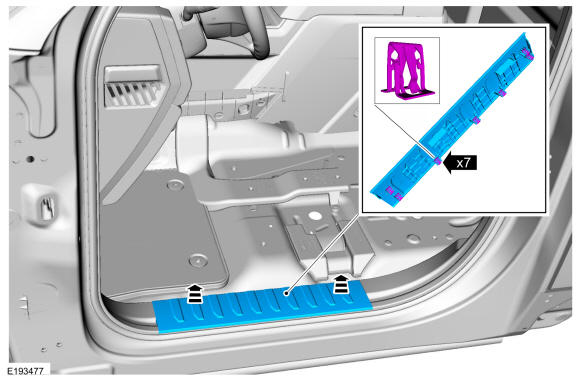

Release the clips and remove the scuff plate trim panel.

GFD42710

Courtesy of FORD MOTOR COMPANY

3.

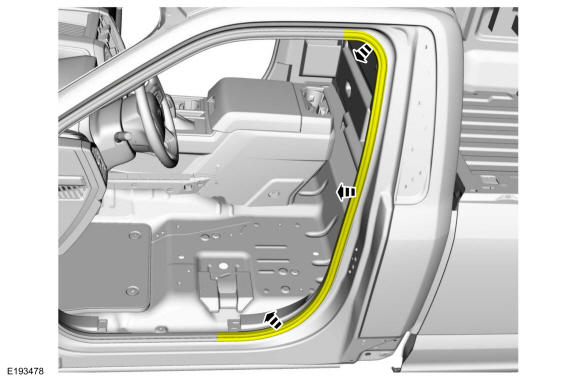

Position the weatherstrips aside.

GFD42711

Courtesy of FORD MOTOR COMPANY

4.

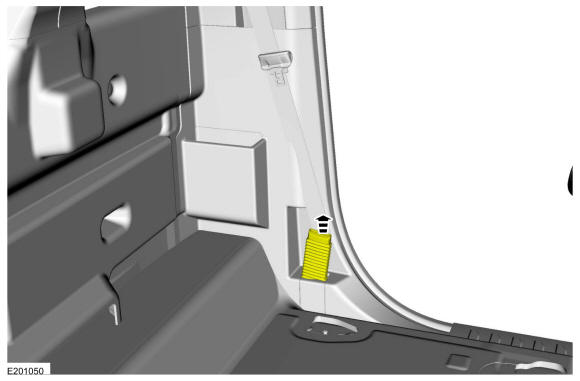

Release the clips and disengage the seatbelt pretensioner boot from the pretensioner bezel.

GFD42712

Courtesy of FORD MOTOR COMPANY

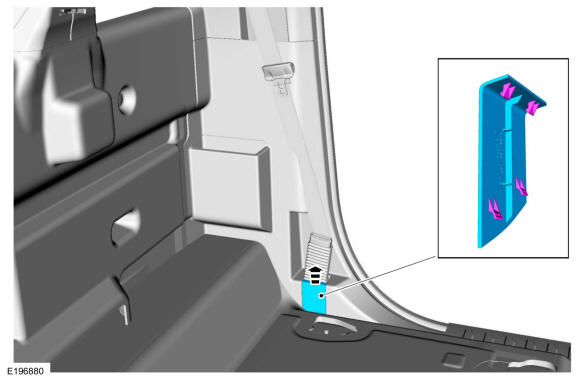

5.

Remove the pretensioner bezel.

GFD42713

Courtesy of FORD MOTOR COMPANY

6.

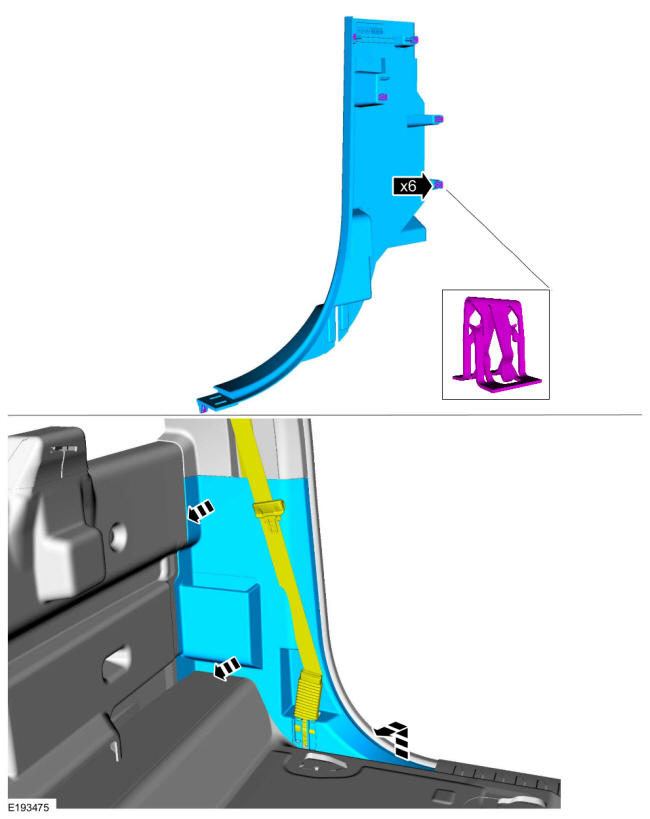

Release the clips and remove the B-pillar lower trim panel.

GFD42714

Courtesy of FORD MOTOR COMPANY

Upper B-Pillar Trim Panel

7.

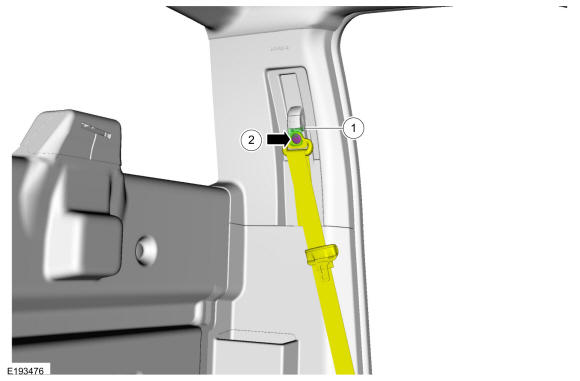

Remove the D-ring bolt and position aside the seatbelt.
- 1.

  Remove the D-ring trim cover.
- 2.

  Remove the D-ring bolt and position aside the seatbelt.
  Torque

  : 30 lb.ft (40 Nm)

GFD42715

Courtesy of FORD MOTOR COMPANY

8.

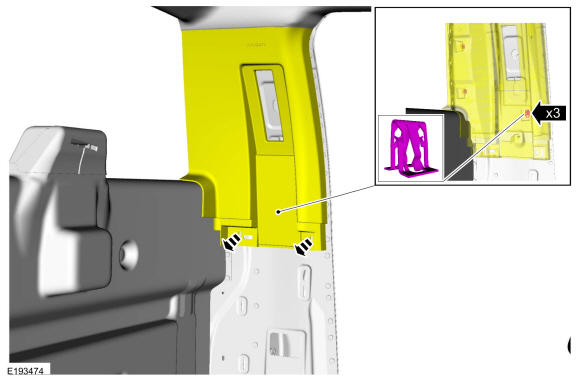

Release the clips and remove the upper B-pillar trim panel.

GFD42716

Courtesy of FORD MOTOR COMPANY

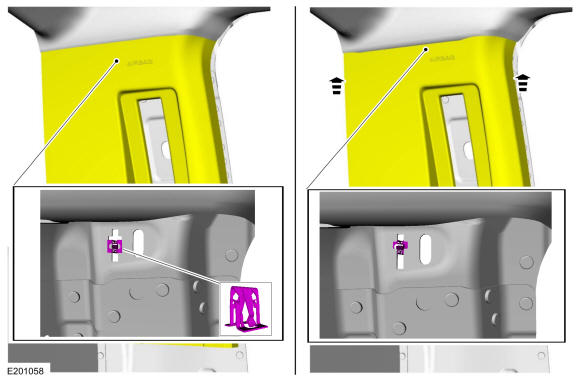

9.

Push up on the upper B-pillar trim panel.

GFD42717

Courtesy of FORD MOTOR COMPANY

10.

NOTE: The trim panel must be positioned upward to allow the upper clip to release correctly. Failure to follow this may cause damage to the trim panel.

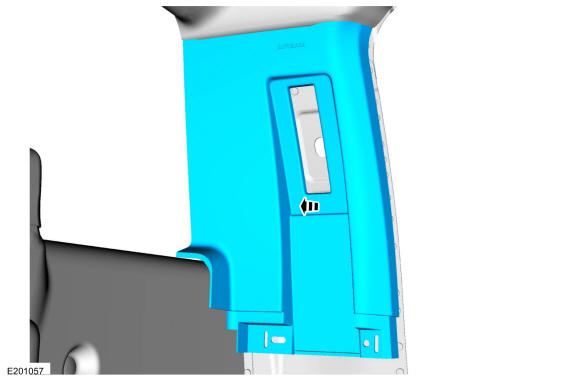

Remove the upper B-pillar trim panel.

GFD42718

Courtesy of FORD MOTOR COMPANY
