A-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown in illustration, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

1.

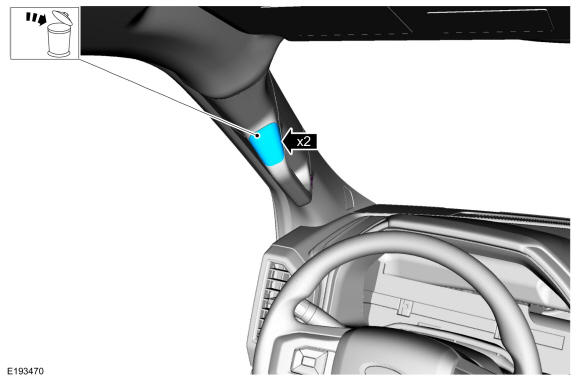

Remove and discard the assist handle bolt covers.

Courtesy of FORD MOTOR COMPANY

2.

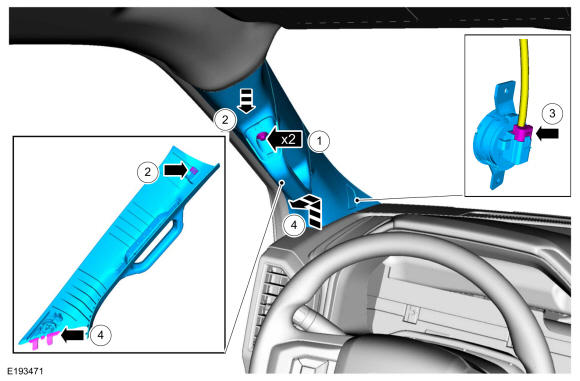

Remove the A-pillar trim panel.
- 1.

  Remove the bolts.
  Torque

  : 55 lb.in (6.2 Nm)
- 2.

  Release the retainer.
- 3.

  If equipped, disconnect the speaker electrical connector.
- 4.

  Release the clips and remove the A-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
