Selector Lever Knob: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the selector lever bezel. REFER to: Selector Lever Bezel .

  1. 2.

    Shift the selector lever into 1.
GFD41925Courtesy of FORD MOTOR COMPANY

  1. 3.

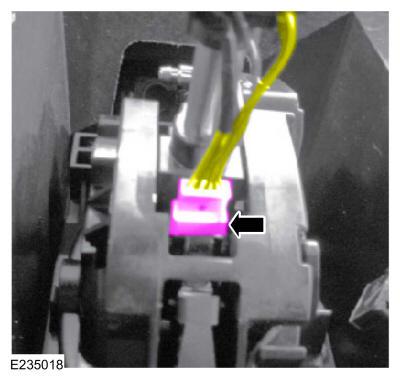

    Disconnect the electrical connector.
GFD41926Courtesy of FORD MOTOR COMPANY

  1. 4.

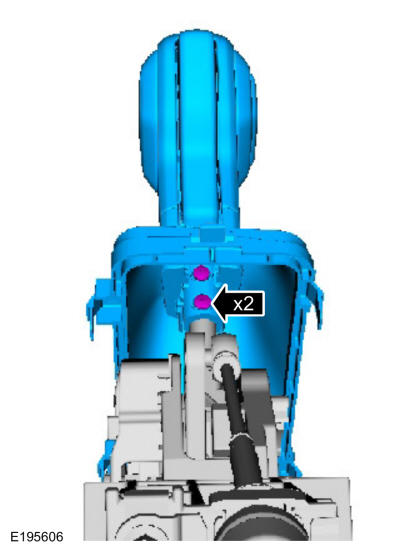

    Remove the screws and the selector lever knob and boot.
GFD41927Courtesy of FORD MOTOR COMPANY

  1. 5.

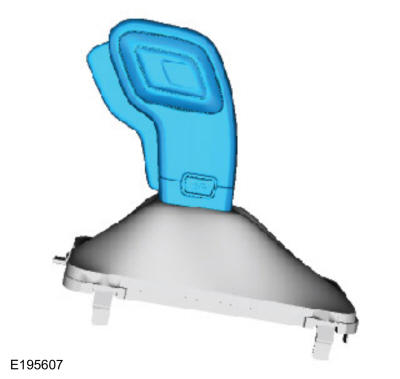

    Remove the selector lever knob from the boot.
GFD41928Courtesy of FORD MOTOR COMPANY
