Selector Lever Bezel: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

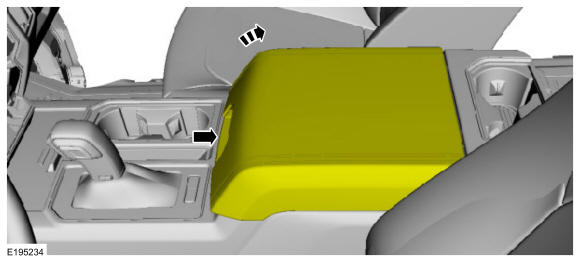

    Open the console.
GFD41906Courtesy of FORD MOTOR COMPANY

  1. 2.

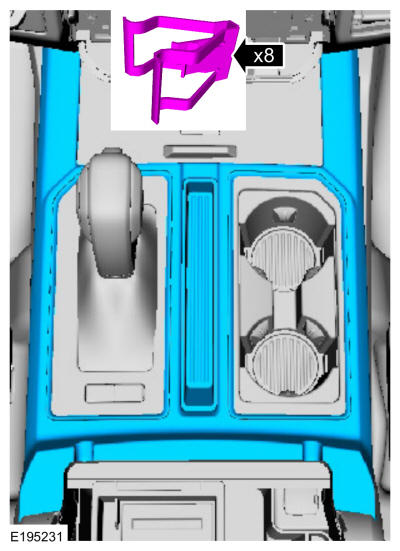

    Remove the console trim panel.
GFD41907Courtesy of FORD MOTOR COMPANY

  1. 3.

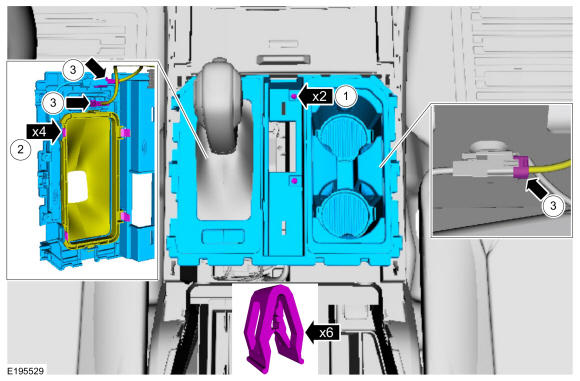

    Remove the selector lever bezel.

    1. 1.

      Remove the screws and lift the bezel to access the selector lever knob boot and the electrical connectors.

    1. 2.

      Release the tabs and disconnect the selector lever knob boot.

    1. 3.

      Disconnect the electrical connectors.
GFD41908Courtesy of FORD MOTOR COMPANY
