Battery Tray: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the battery. Refer to: Battery .

2.

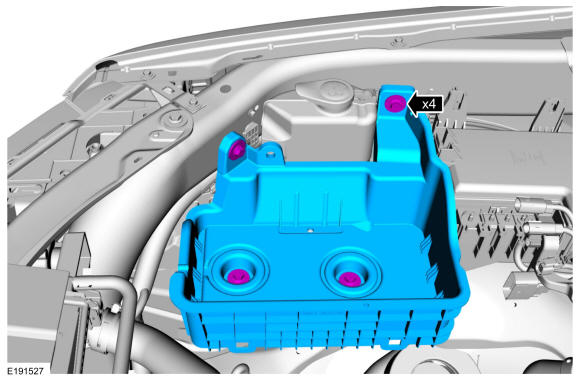

Remove the bolts and the battery tray.
Torque

: 16 lb.ft (22 Nm)

Courtesy of FORD MOTOR COMPANY
