Battery Current Sensor: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

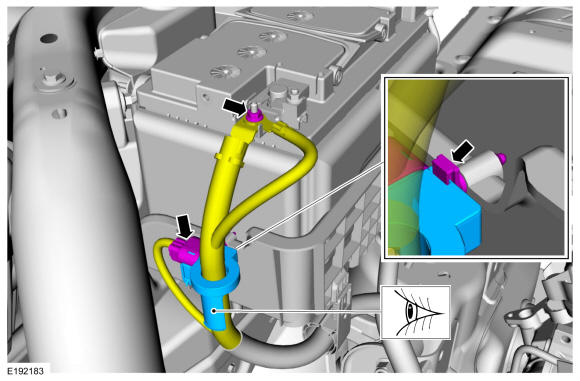

- 1.NOTE: Note the orientation and position of the battery current sensor tape tab.
Remove the nut, disconnect the battery current sensor from the battery tray and position the battery cable. Disconnect the battery current sensor electrical connector. Index-mark the battery cable at the battery current sensor. Remove and discard the tape securing the battery current sensor to the battery cable and remove the battery current sensor.
