Door Latch Lubrication

Special Tool(s) / General Equipment

Materials

Activation

1. 1.

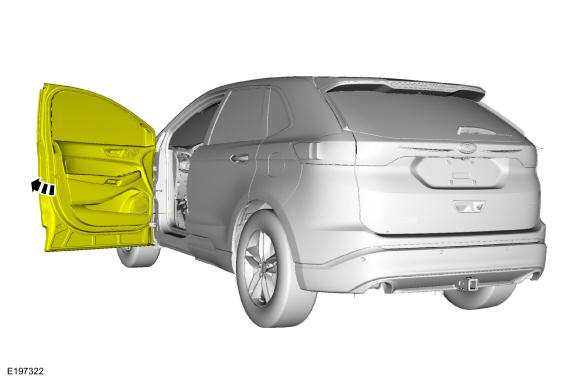

   Open the door.

Courtesy of FORD MOTOR COMPANY

1. 2.

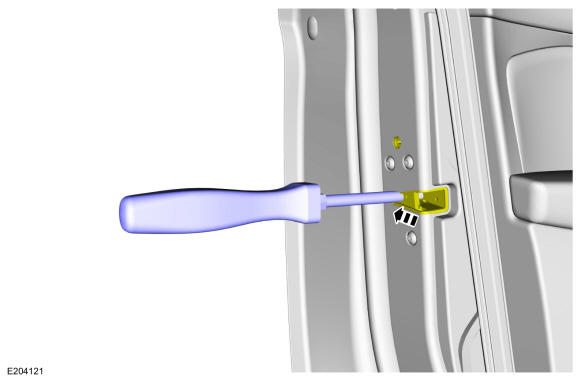

   Using a flat blade screwdriver, fully close the latch (2 clicks). Use the General Equipment: Flat-Bladed Screwdriver

Courtesy of FORD MOTOR COMPANY

1. 3.


   NOTE: Do not over-lubricate the latch. Using excessive grease may damage the internal lock motor.

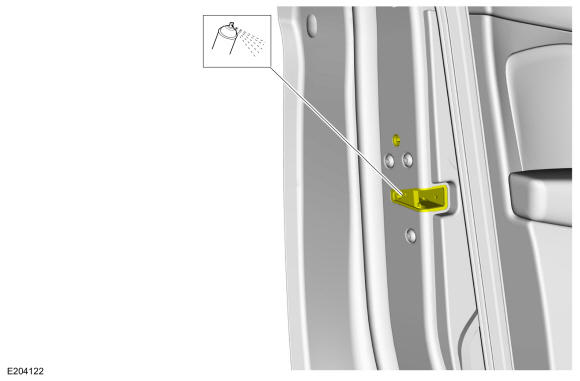

   Spray the multi-purpose grease into the opening on the door latch for approximately 5 seconds.

   Material

   : Motorcraft ® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

Courtesy of FORD MOTOR COMPANY

1. 4.


   NOTE: Some exterior door handles are operated mechanically while other exterior door handles are operated electronically.

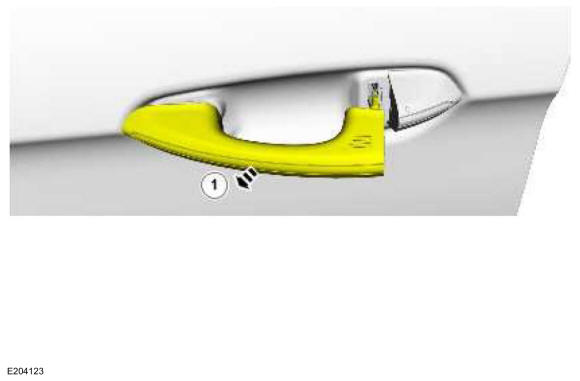

   Open the latch using the exterior door handle.

Courtesy of FORD MOTOR COMPANY

1. 5.

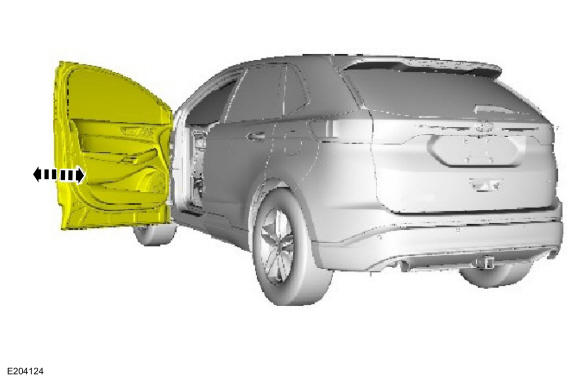

   Open and close the door several times to circulate the lubricant inside the latch.

Courtesy of FORD MOTOR COMPANY

1. 6.

   Open the door.

Courtesy of FORD MOTOR COMPANY

1. 7.

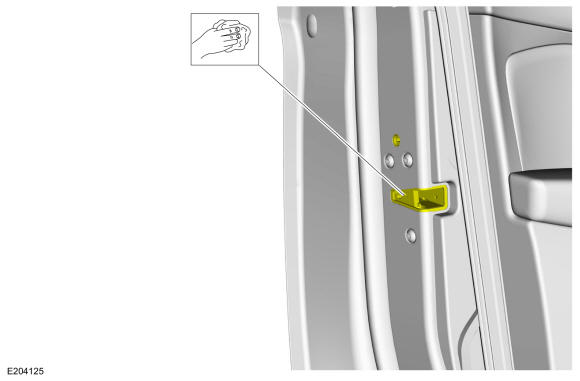

   Wipe off any excess grease.

Courtesy of FORD MOTOR COMPANY
