Section 669 (Door Handles, Door Locks, Door Latches And Entry Systems)
>>
Description And Operation
>>
Handles, Locks, Latches and Entry Systems - System Operation and Component Description
>>

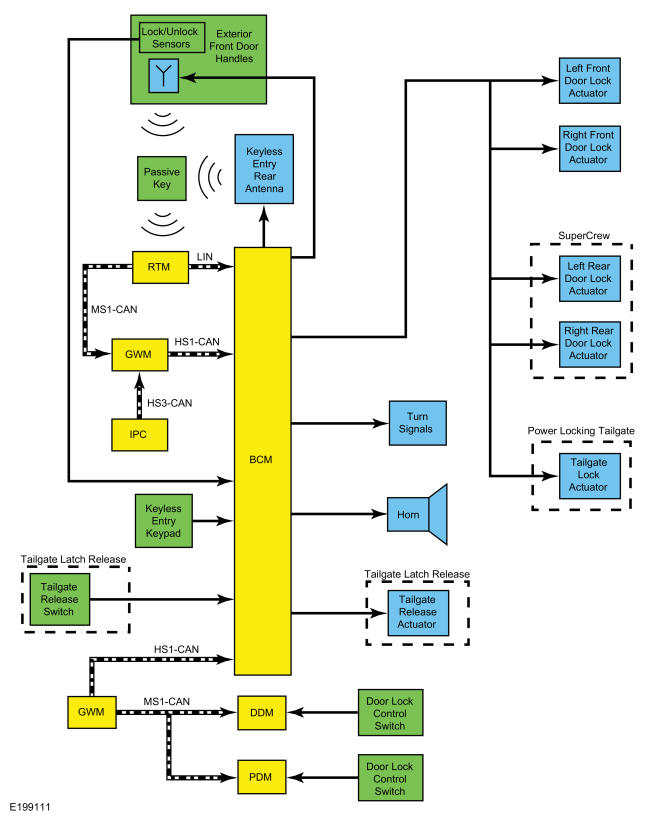

System Diagram
System Diagram
WARNING:
This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
