Passive Anti-Theft System (PATS) Rear Antenna: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the appropriate loadspace trim panel. REFER to: Loadspace Trim Panel - Regular Cab . REFER to: Loadspace Trim Panel - SuperCab/SuperCrew .

2.

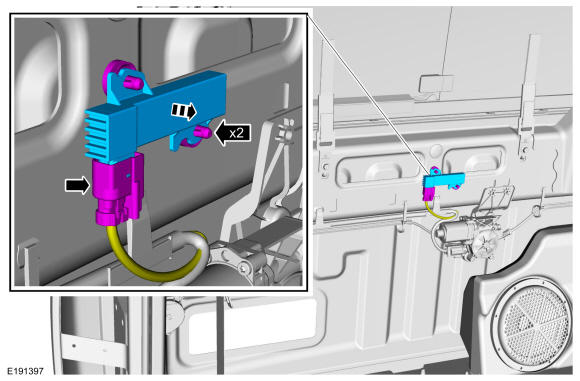

Disconnect the electrical connector, release the clips and remove the rear PATS antenna.

Courtesy of FORD MOTOR COMPANY
